Antilock Brakes and Traction Control System

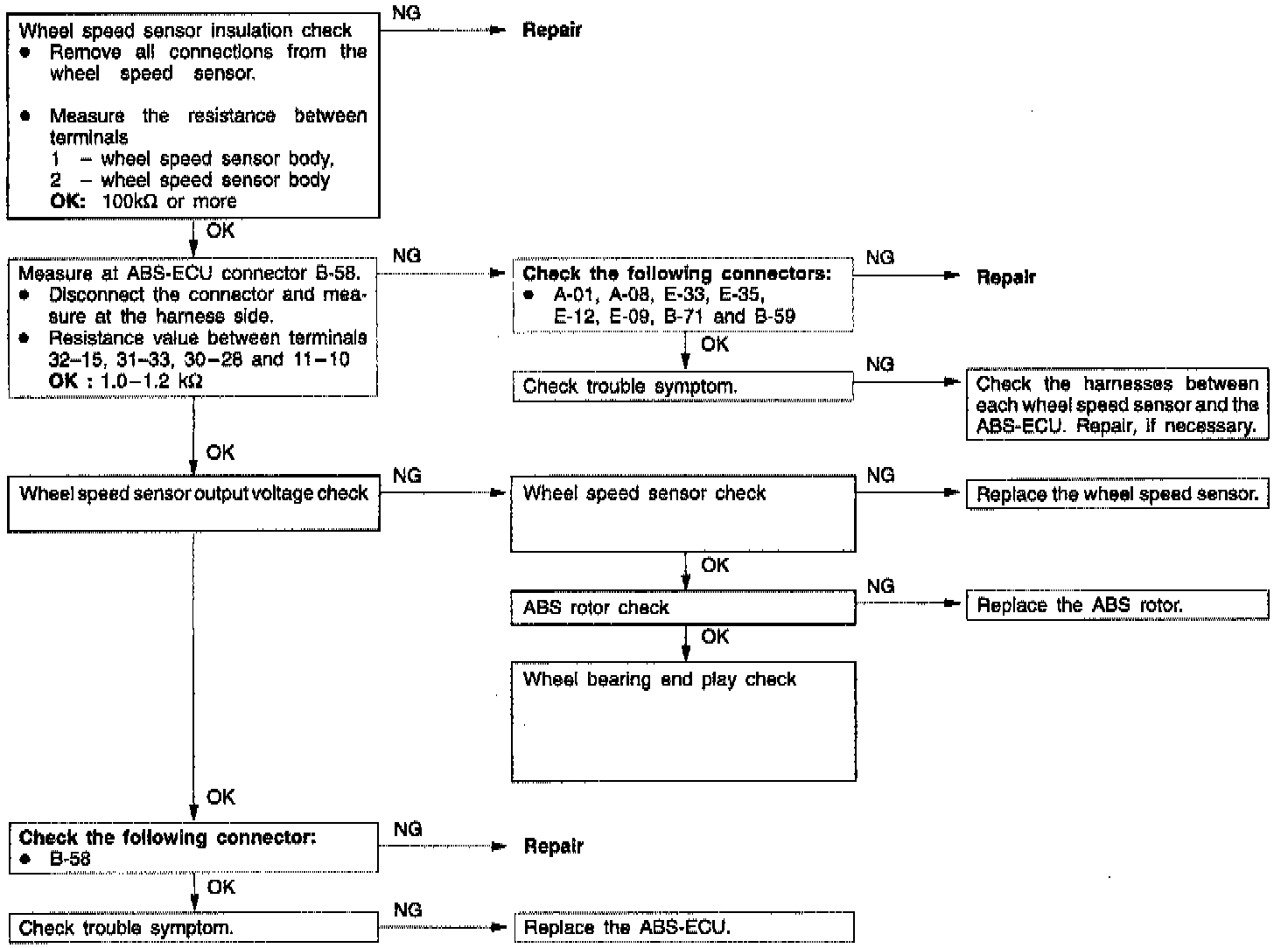

Inspection Procedure: Code No. 11, 12, 13, 14 Wheel Speed Sensor Open Circuit:

CODE NO. 11, 12, 13, 14 WHEEL SPEED SENSOR OPEN CIRCUIT
The ABS-ECU detects breaks in the wheel speed sensor wire.

Probable Cause
- Malfunction of wheel speed sensor
- Malfunction of wiring harness or connector
- Malfunction of ABS rotor
- Malfunction of ABS-ECU
