Home >> Eagle >> 1997 >> Talon AWD L4-1997cc 2.0L DOHC Turbo VIN F SMFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Doors

Doors

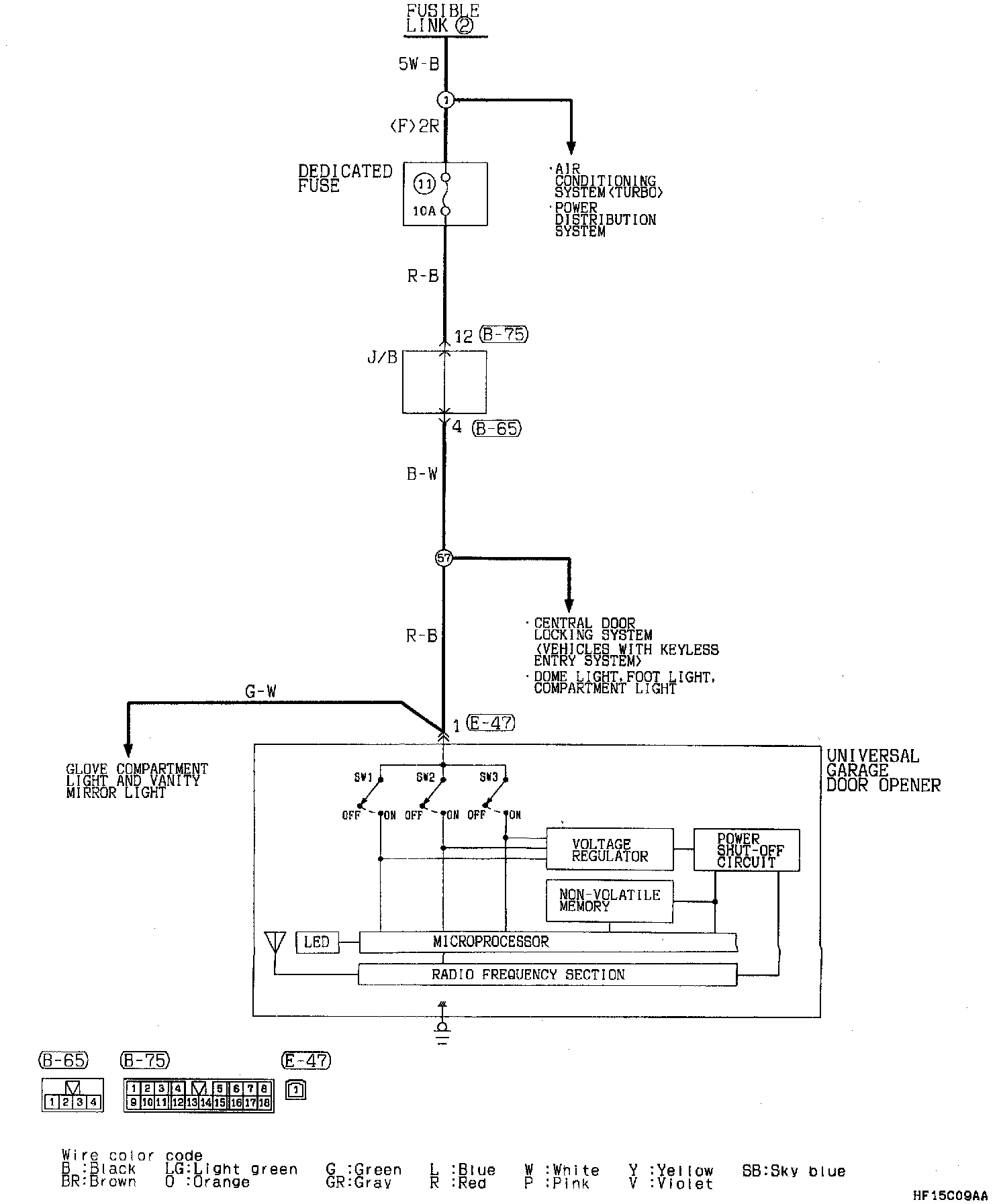

Universal Garage Door Opener:
