Tail Lamp

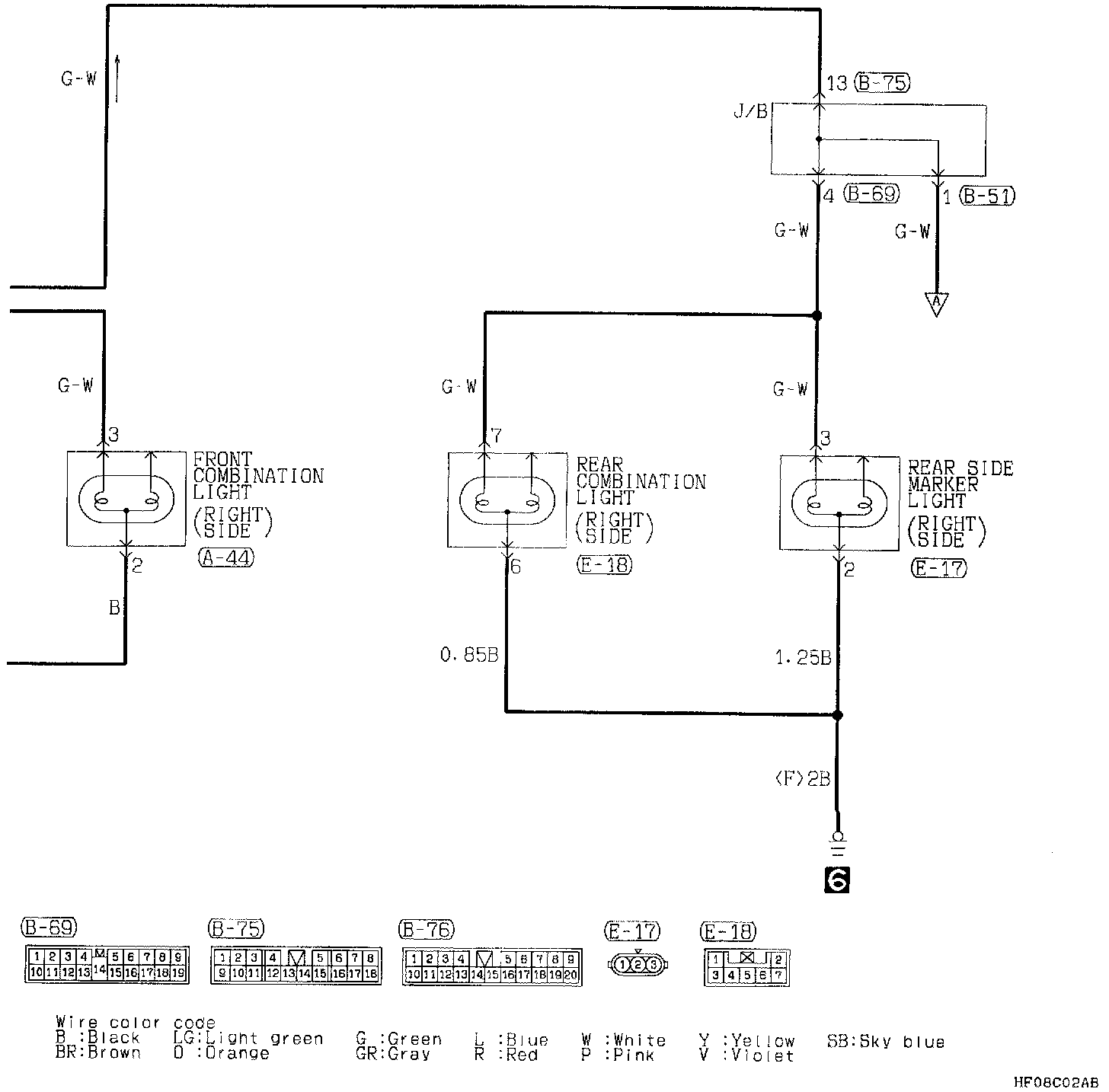

Tail, Position, Side Marker And License Plate Light (Part 1 Of 3):

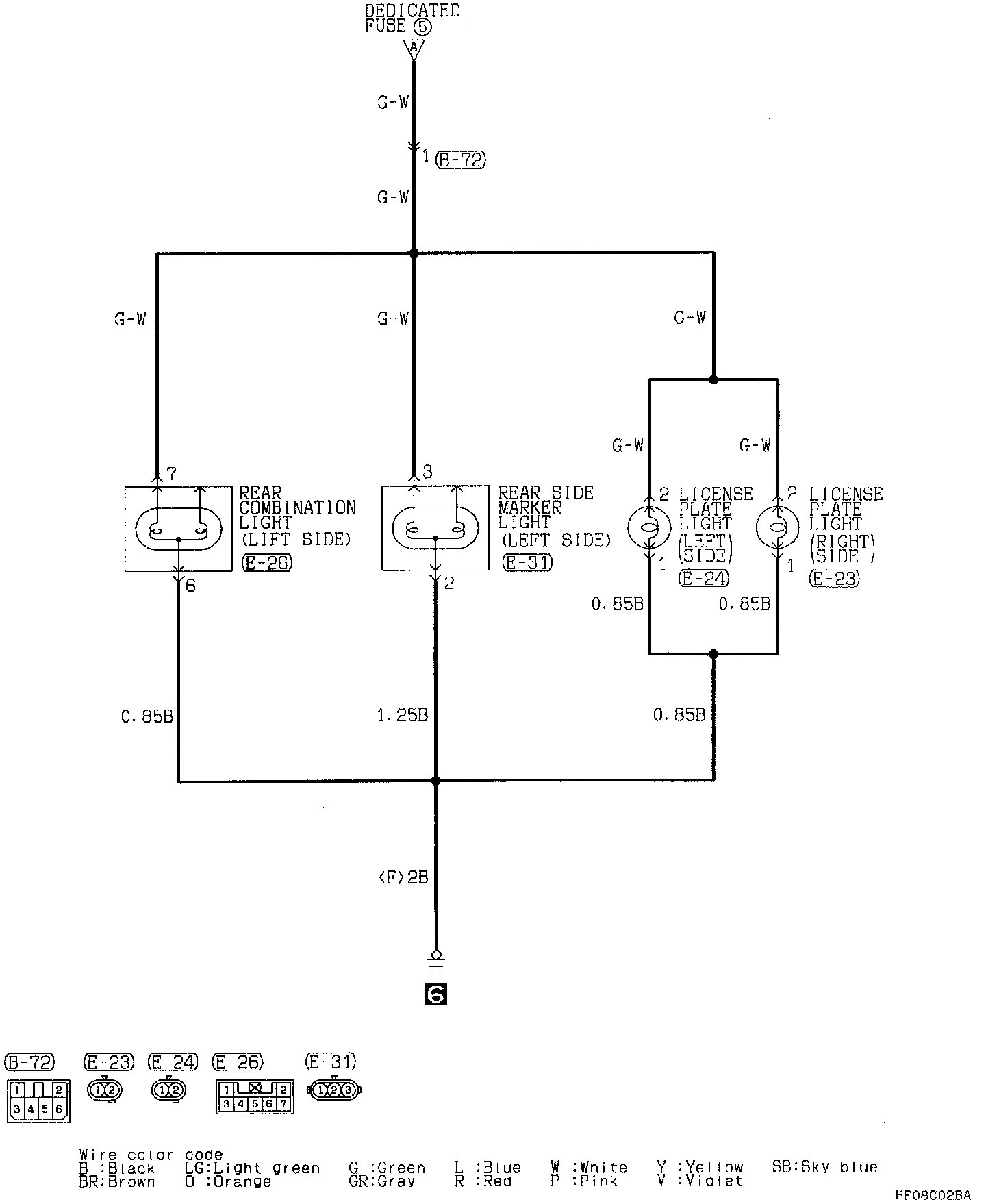

Tail, Position, Side Marker And License Plate Light (Part 2 Of 3):

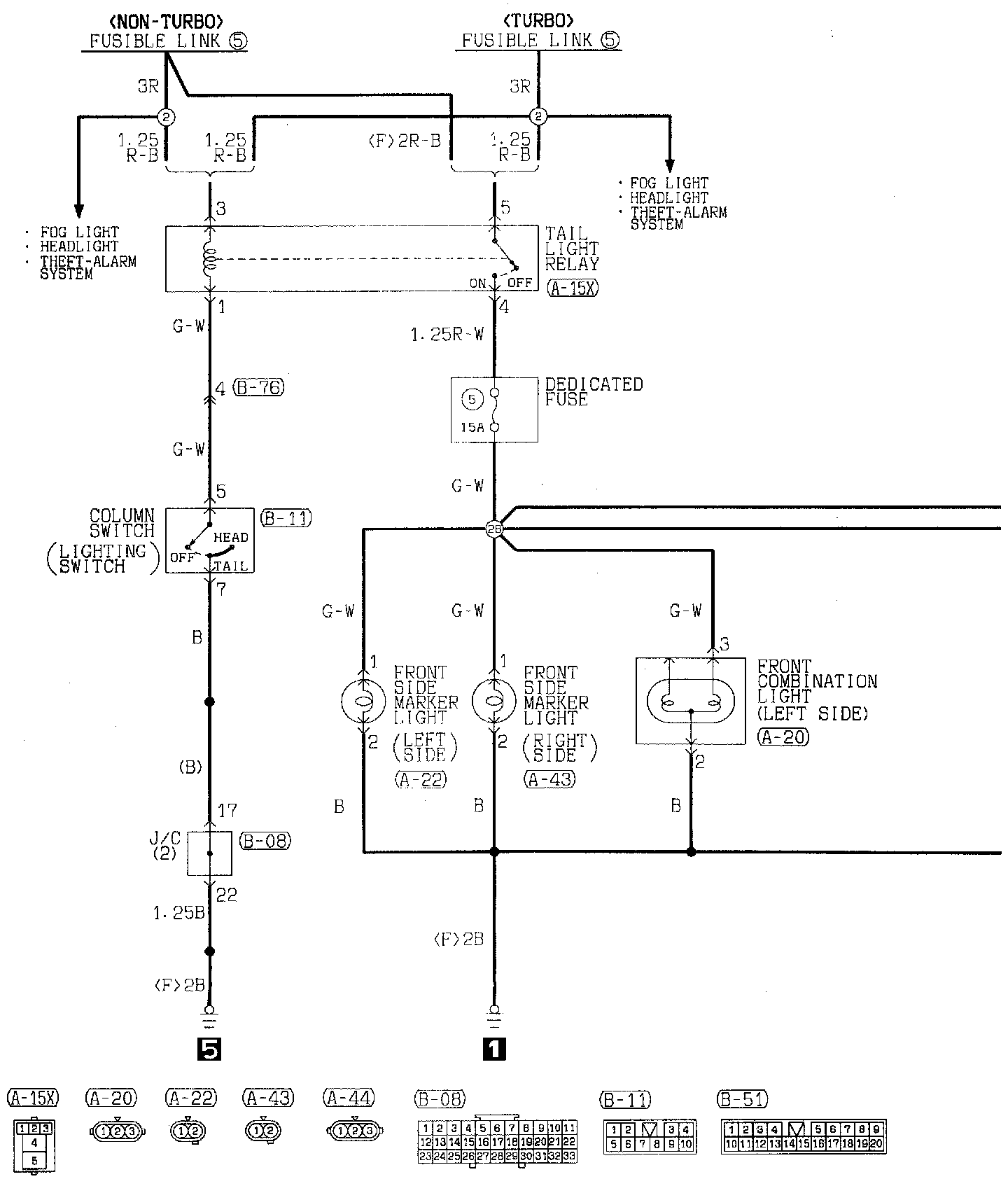

Tail, Position, Side Marker And License Plate Light (Part 3 Of 3):
