Brake Master Cylinder
Brake Master Cylinder

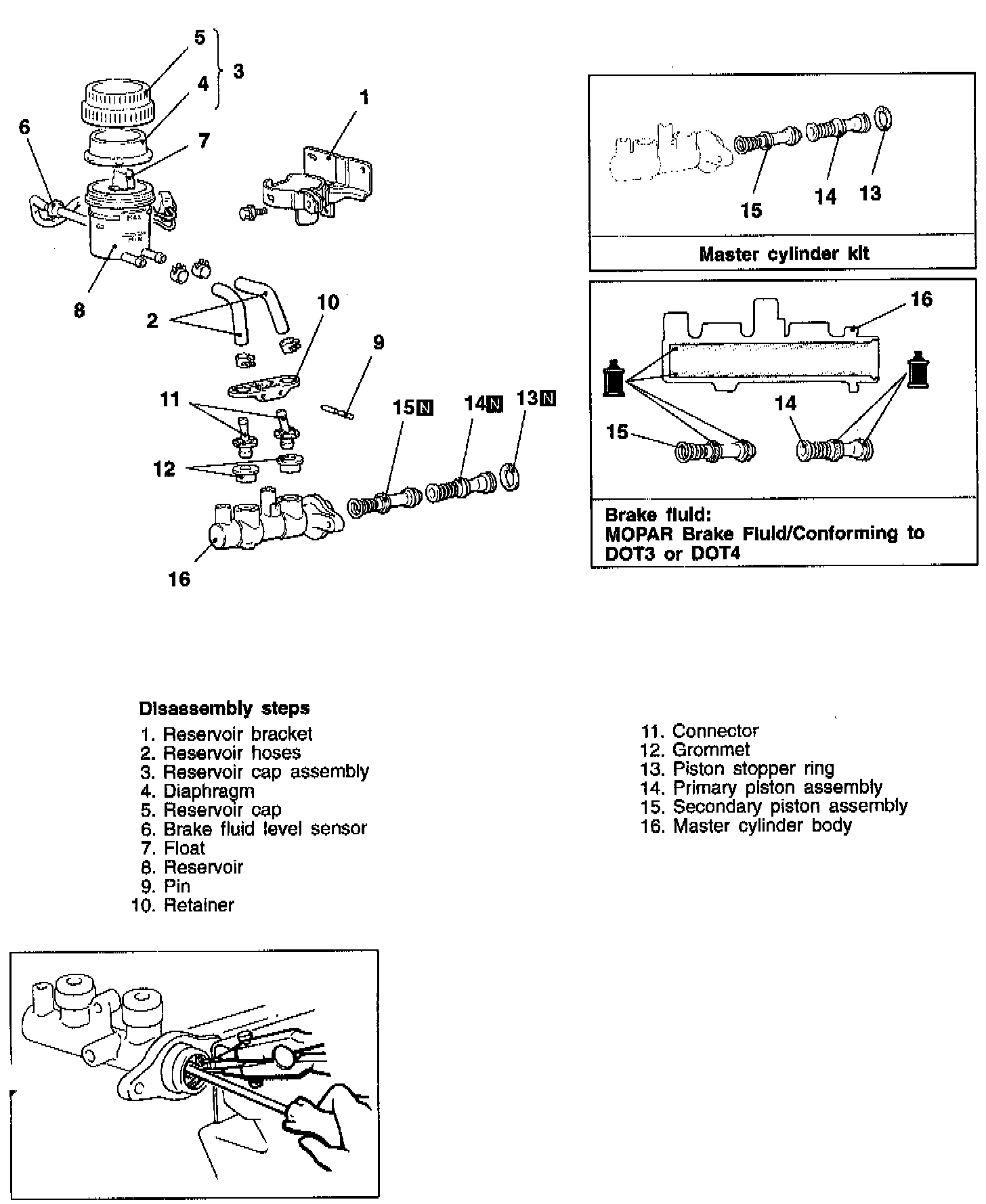

Master Cylinder Components Disassembly:

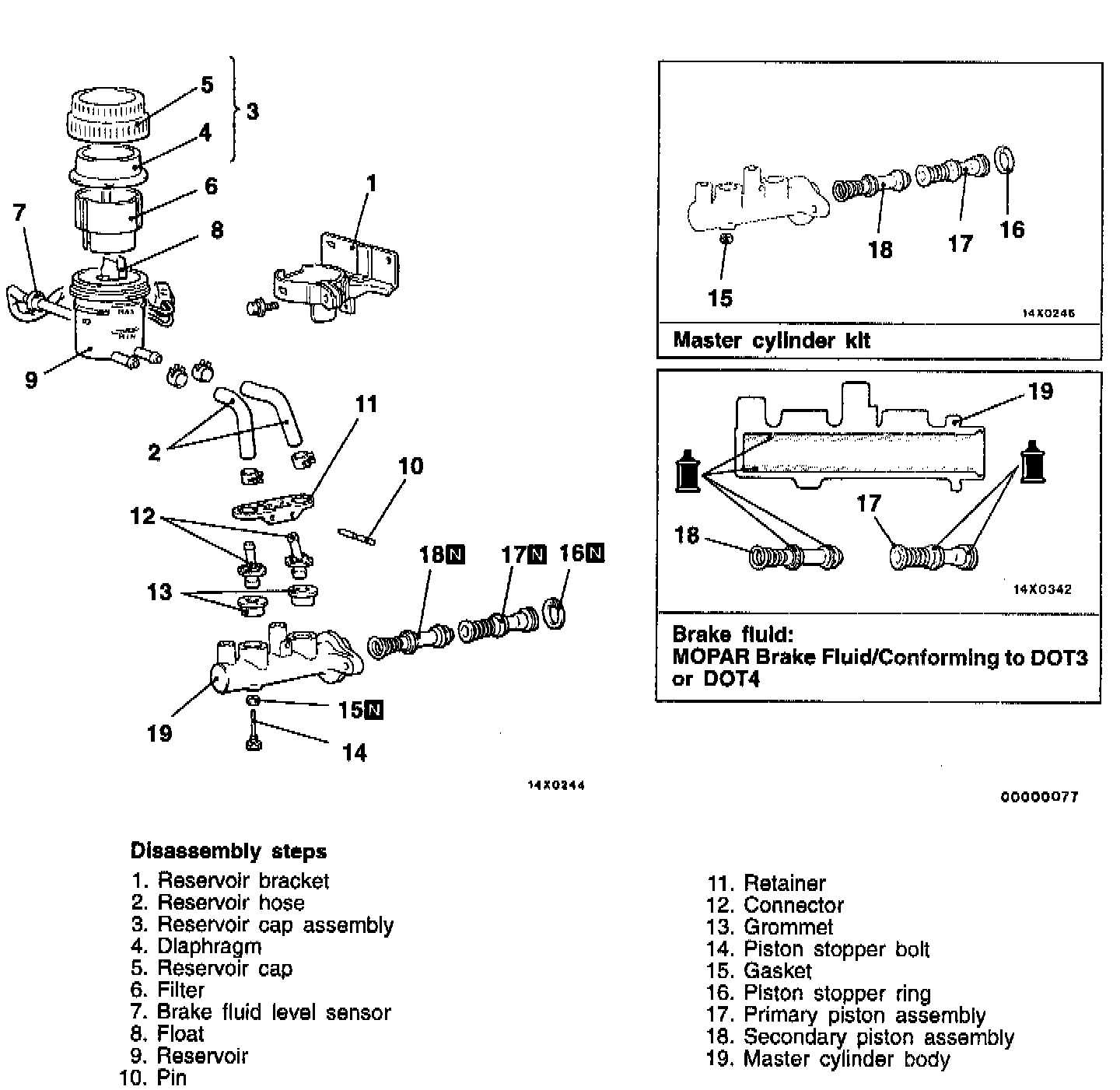

Exploded View Of Master Cylinder & Brake Booster:
