Condenser HVAC: Service and Repair

Condenser And Condenser Fan Motor Replacement:

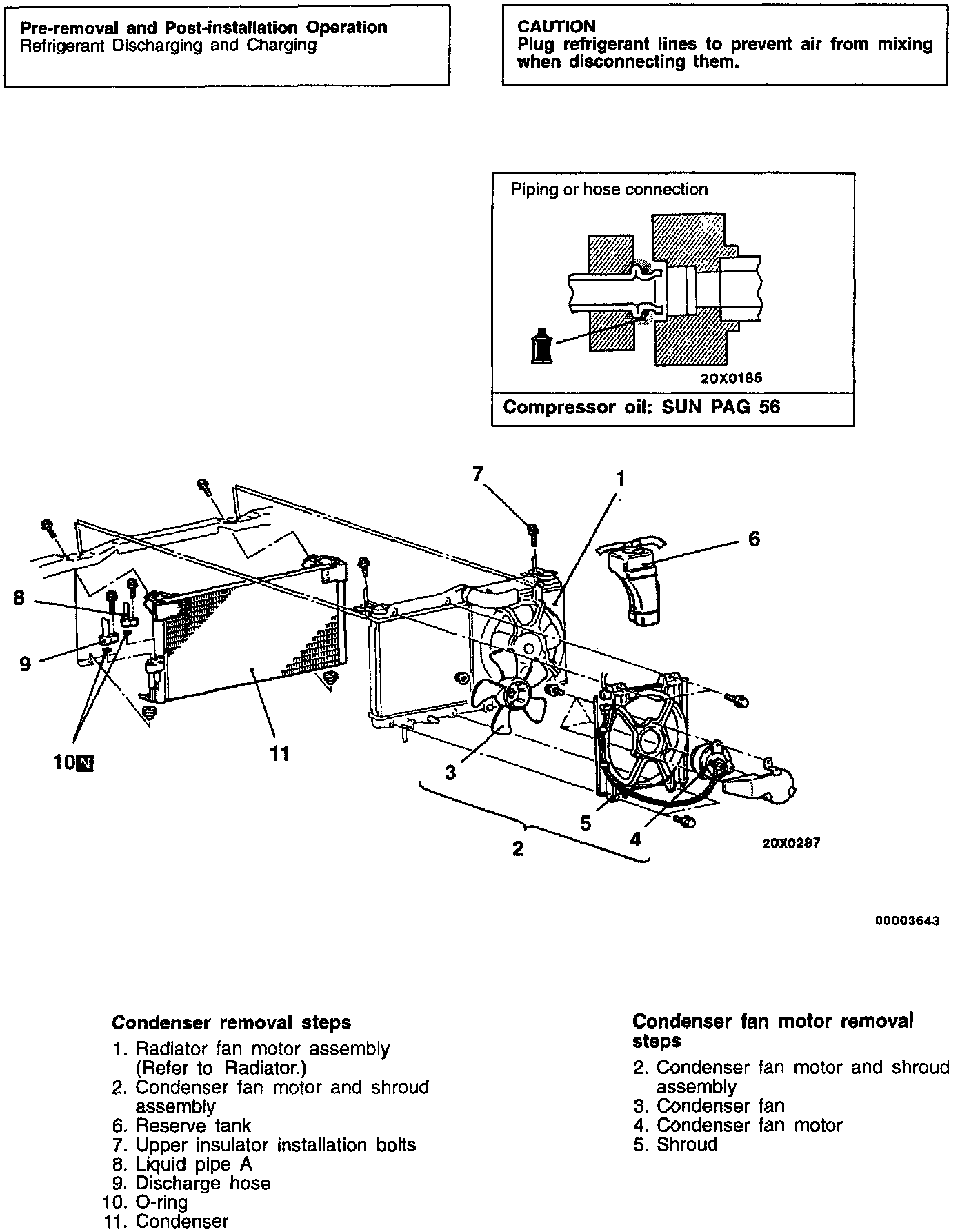

REMOVAL
To remove follow steps in image and note the following:

Removal Service Point:






Step 11 -- Condenser Removal
Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION
To install reverse steps in image and note the following:

Step 11 -- Condenser Installation
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil.
- Compressor oil: SUN PAG 56
- Quantity: 15 Cubic Cm (0.51 fl oz).


Condenser Fan Motor Check:

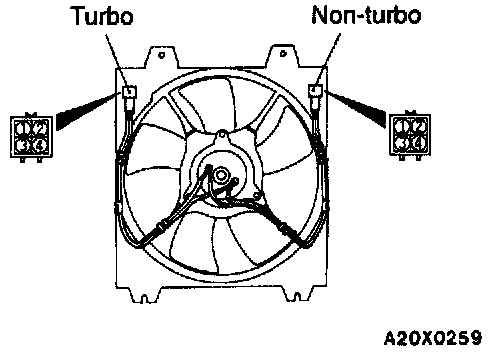

CONDENSER FAN MOTOR INSPECTION
1. Check that the condenser fan motor operates when battery voltage (+) is applied to terminal 1 and terminal 4 is grounded (-).
2. In this same condition, apply battery (+) voltage to terminal 3 and grounded terminal 2. Check that the condenser fan motor operates faster at this time.
