Clutch: Description and Operation

GENERAL INFORMATION

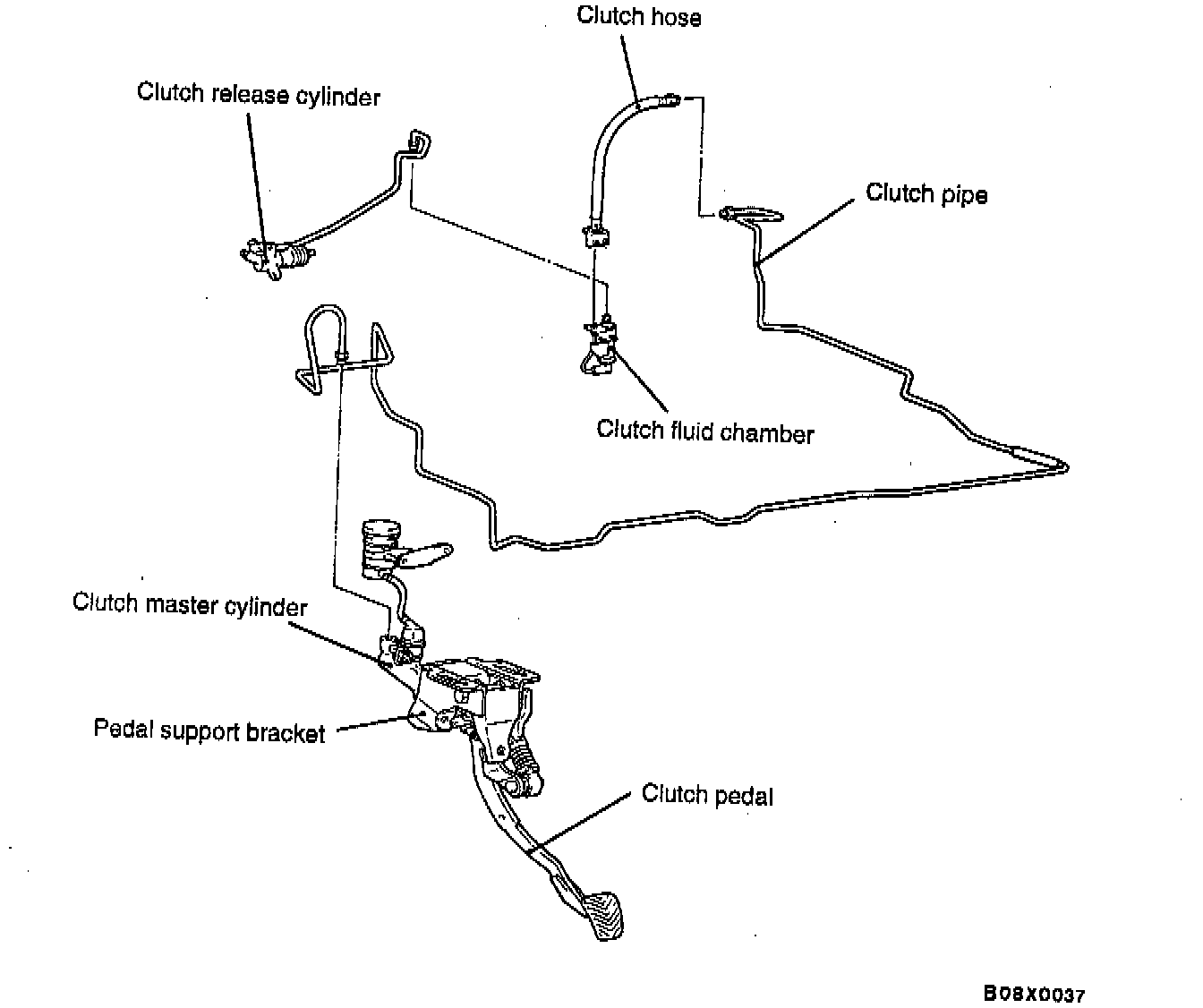

The clutch is a dry single-disc, diaphragm type; hydraulic pressure is used for the clutch control.
Clutch Operating Method: Hydraulic type.

Clutch Disc Type: Single dry disc type.

Clutch Disc Facing Diameter Outer Diameter X Inner Diameter: 225 x 150 mm (8.9 x 5.9 inch)

Clutch Cover Type: Diaphragm spring strap drive type.

Clutch Cover Setting Load: 6,174 N (1,388 lbs.)

Clutch Release Cylinder Inner Diameter: 20.64 mm (13/16 inch)
