Automatic Transmission

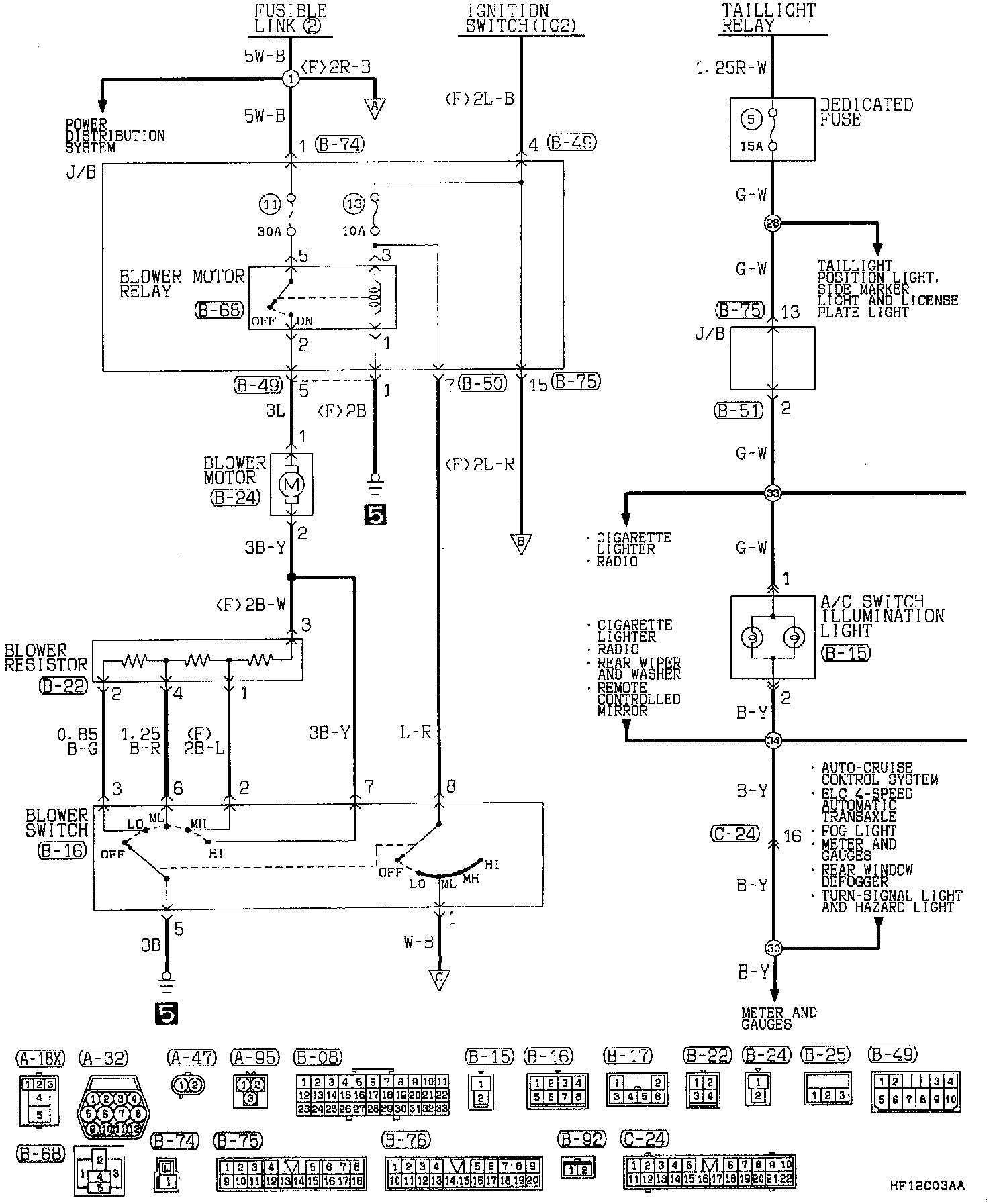

Air Conditioning System With Automatic Transmission (Part 1 Of 4):

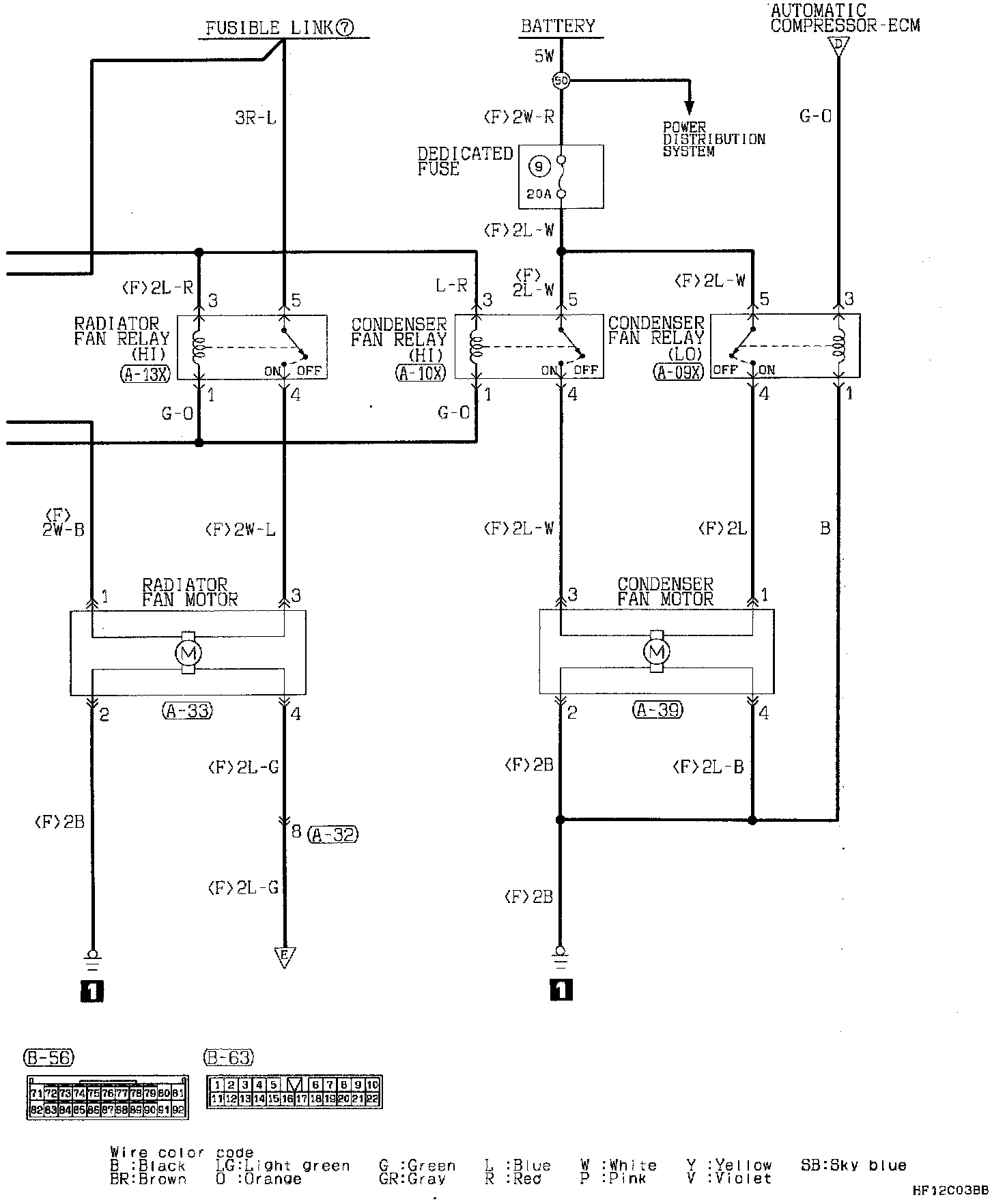

Air Conditioning System With Automatic Transmission (Part 2 Of 4):

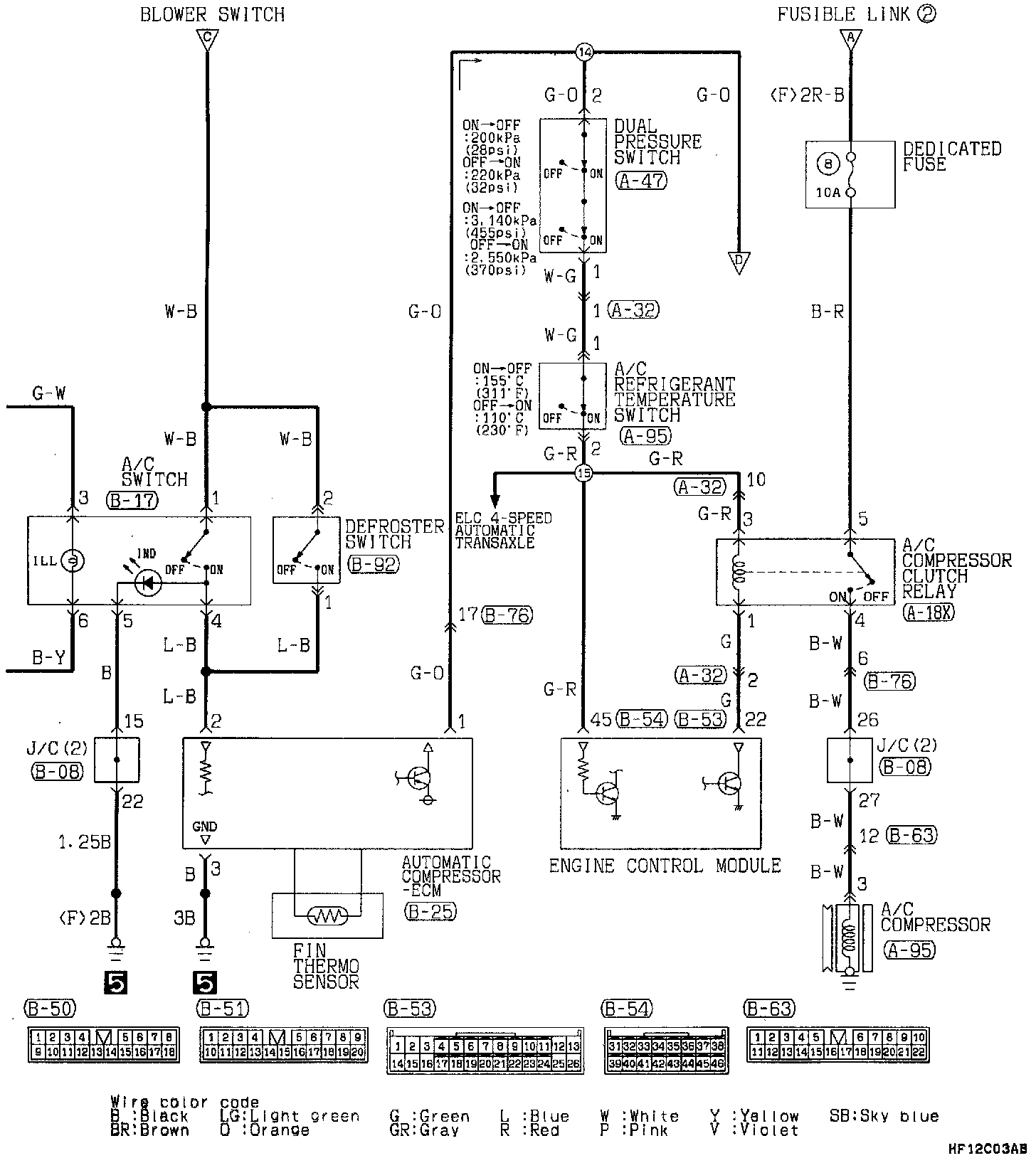

Air Conditioning System With Automatic Transmission (Part 3 Of 4):

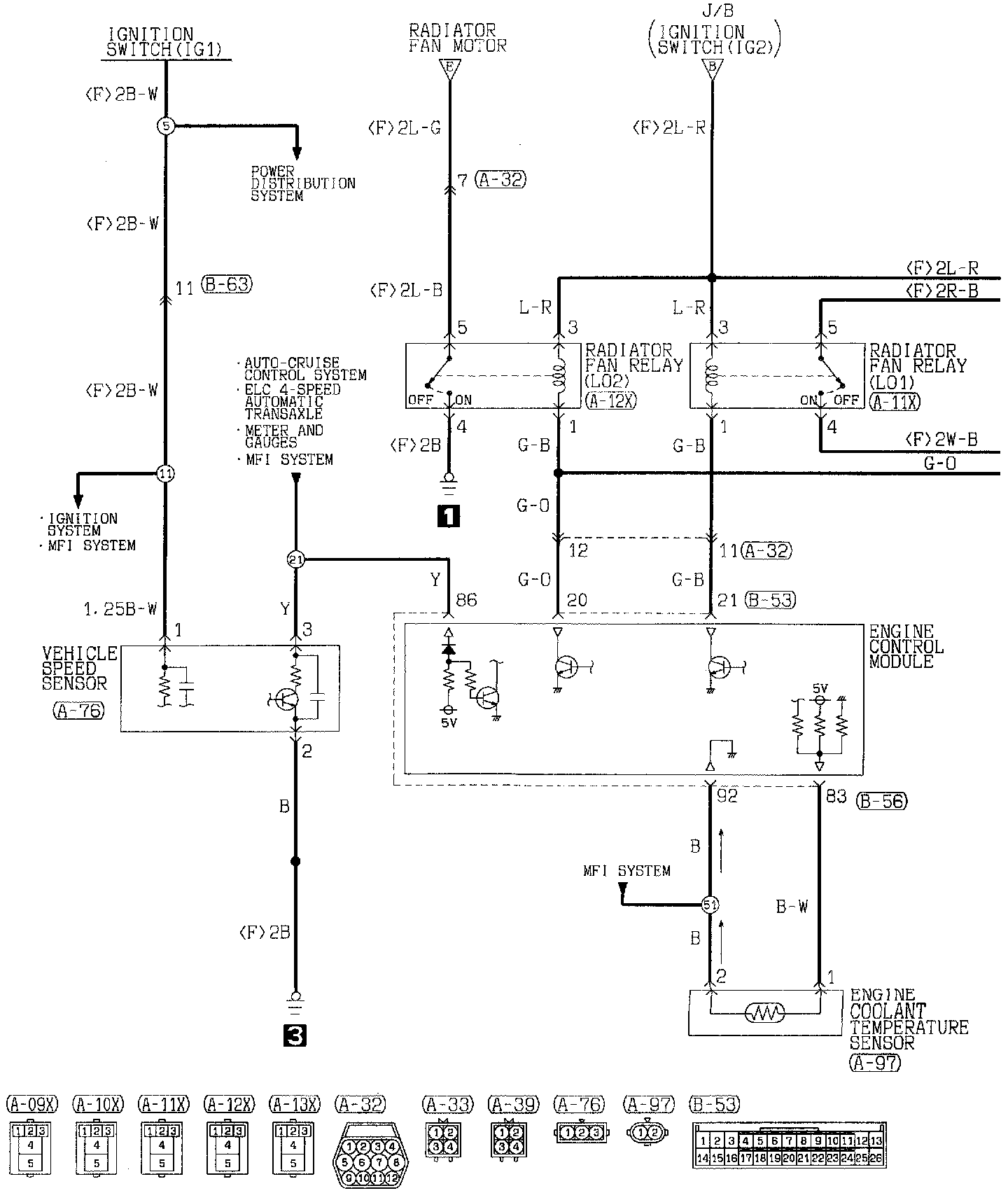

Air Conditioning System With Automatic Transmission (Part 4 Of 4):
