Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
Audible Warning Device Control Module

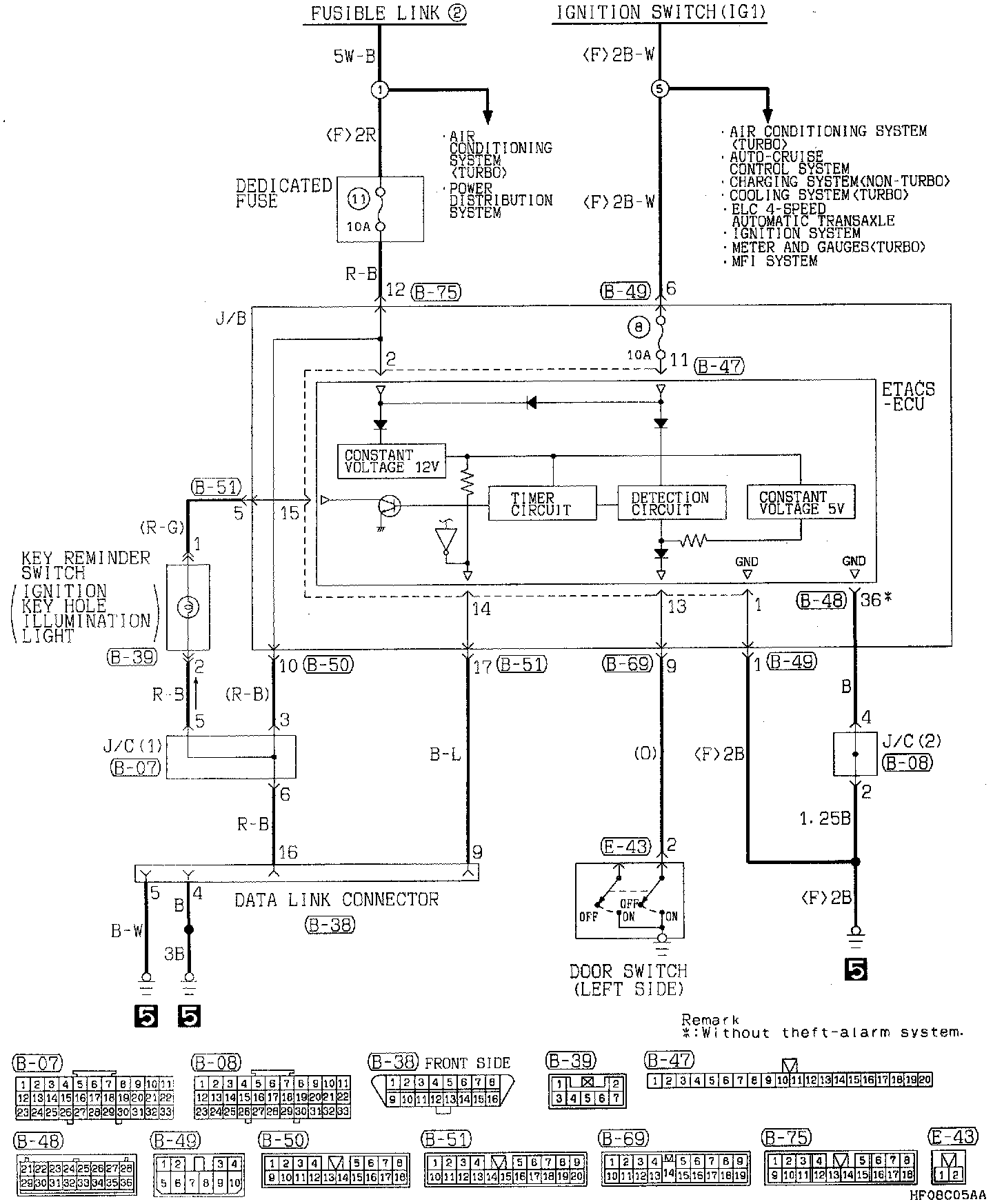

Ignition Key Hole Illumination Light Timer:
