Home >> Eagle >> 1997 >> Talon FWD L4-1997cc 2.0L DOHC Turbo VIN F SMFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram

System Diagram

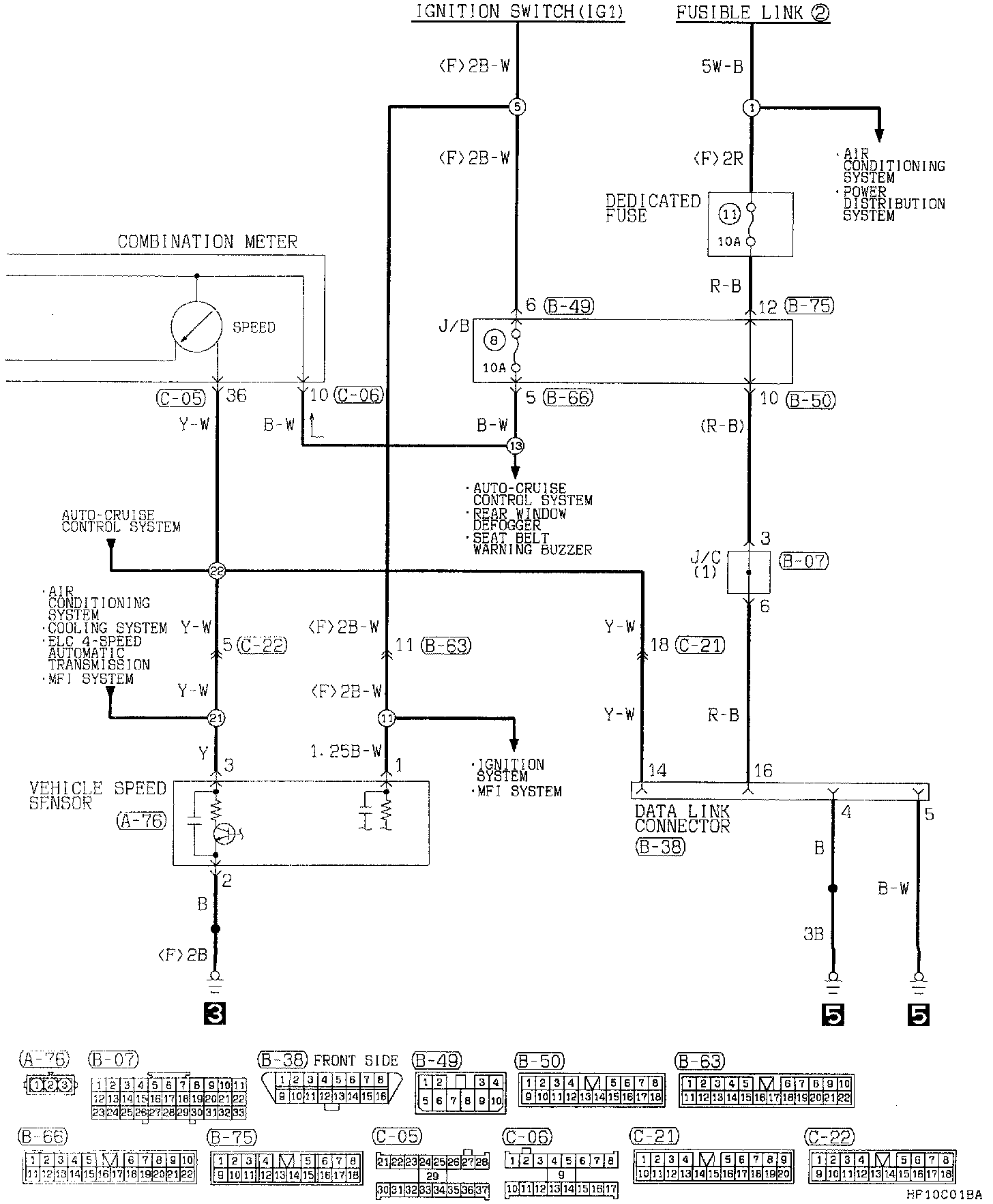

Meter And Gauges (Part 1 Of 3):

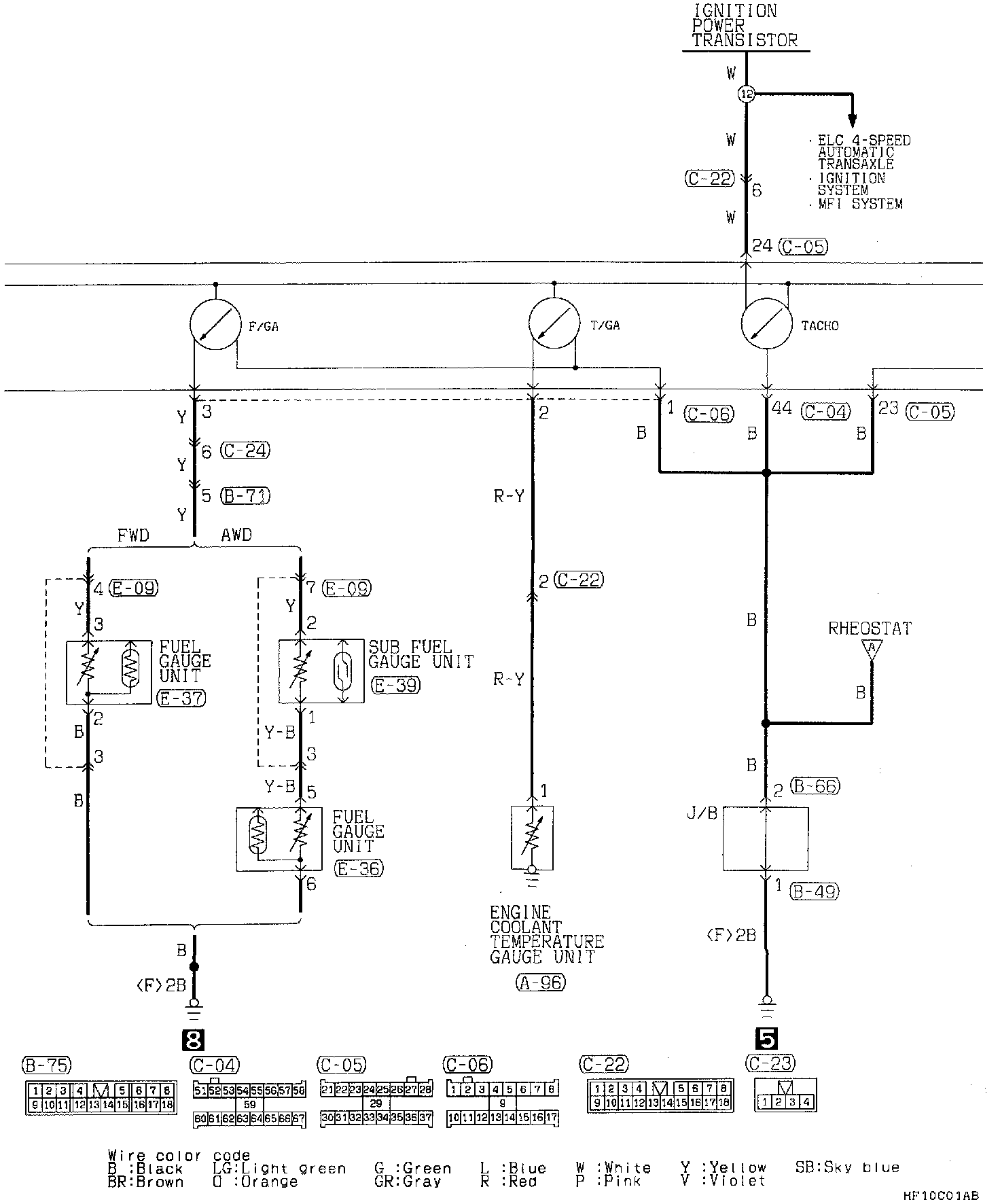

Meter And Gauges (Part 2 Of 3):




Meter And Gauges (Part 3 Of 3):
