Home >> Eagle >> 1997 >> Talon FWD L4-1997cc 2.0L DOHC Turbo VIN F SMFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Planetary Gears, A/T

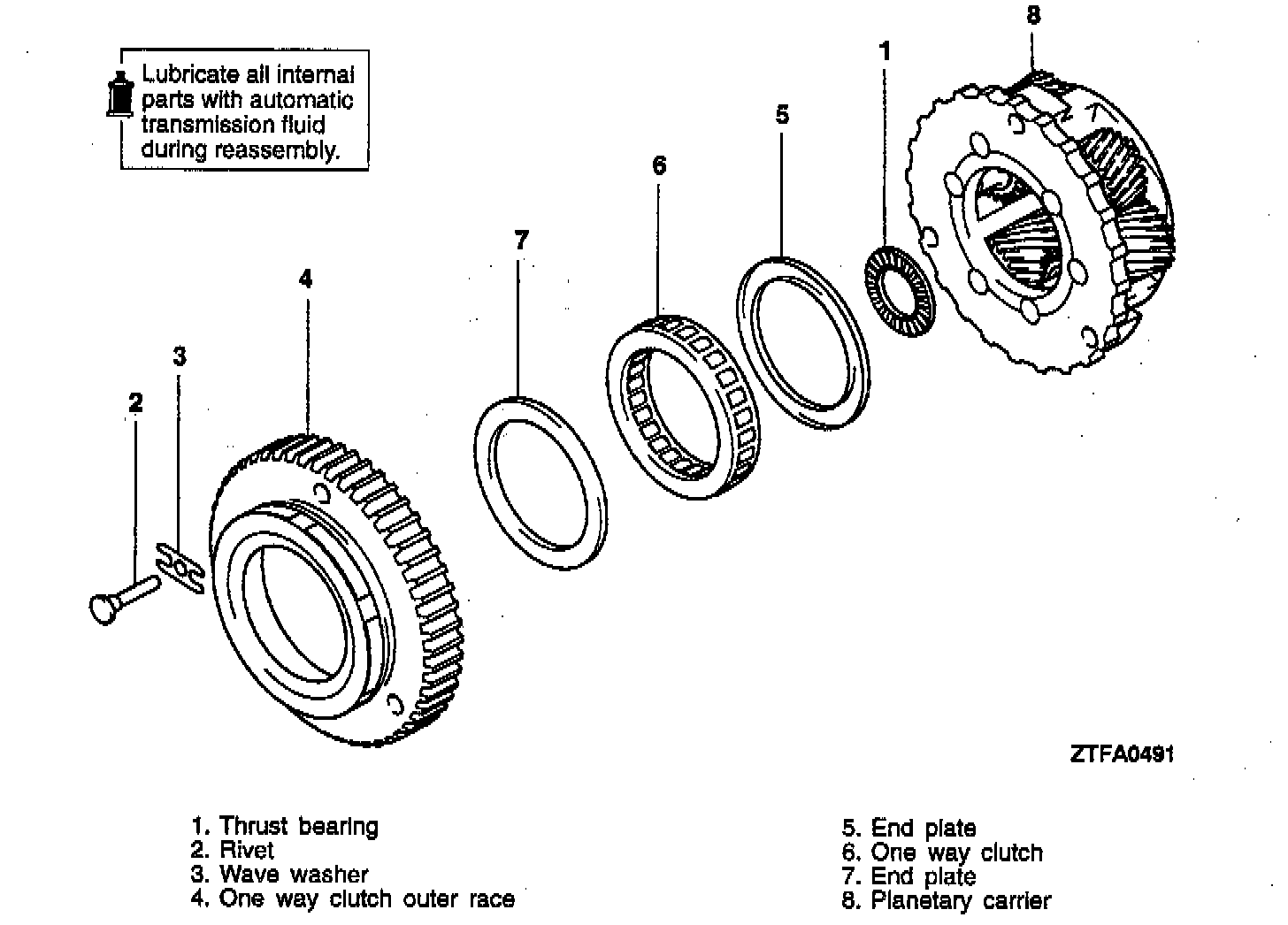

Planetary Gears, A/T
