Removal And Installation Steps

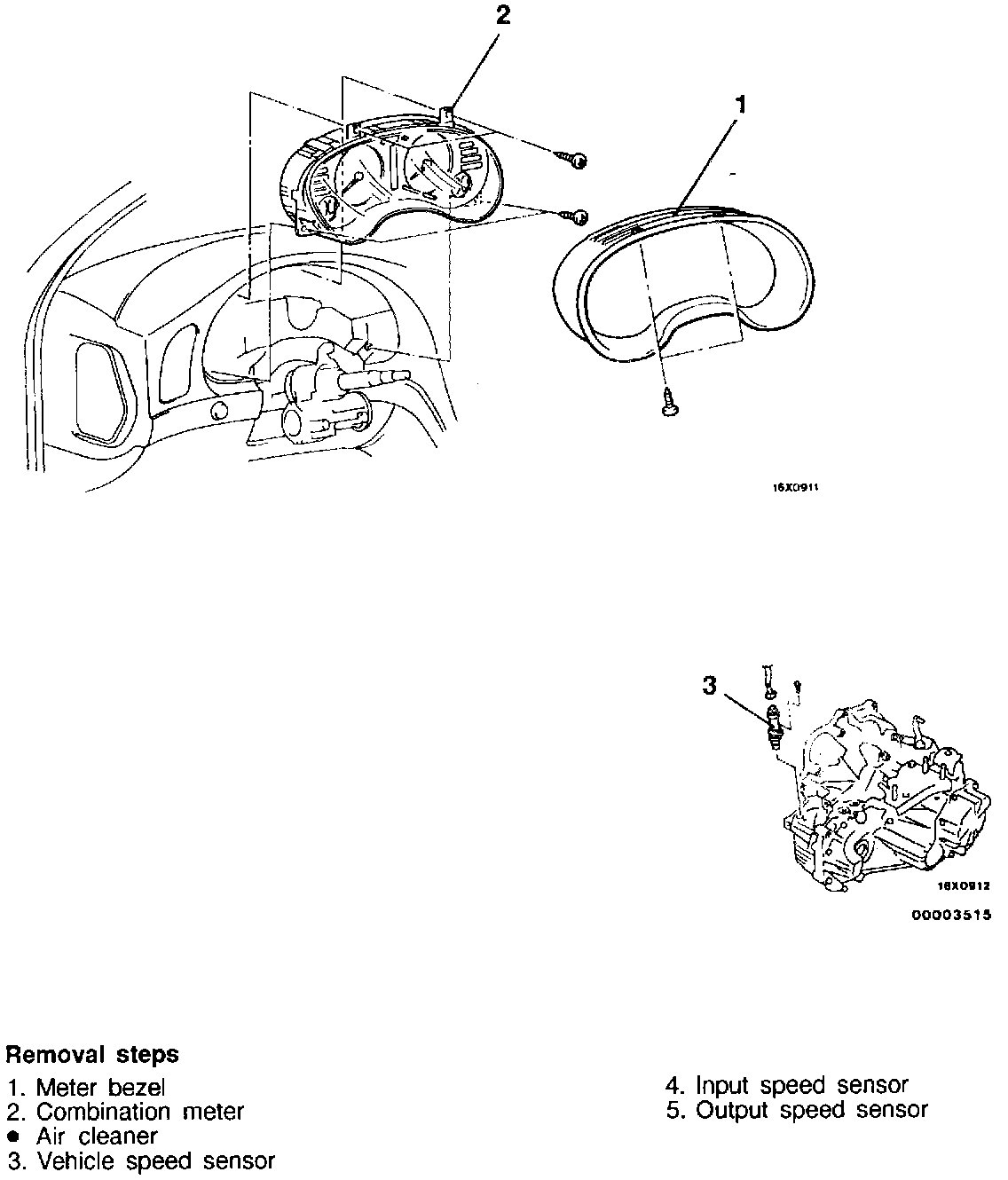

Combination Meters - Removal And Installation:

REMOVE
1. Meter bezel
2. Combination meter
- Air cleaner
3. Vehicle speed sensor

INSTALL
1. Vehicle speed sensor
- Air cleaner
2. Combination meter
3. Meter bezel
