Fuel Filter: Service and Repair

Pre-removal Operation
- Reduce residual pressure from high pressure hose
- Remove Battery
- Remove air intake hose

Post-installtion Operation
- Install intake air hose
- Install battery
- Measure fuel pressure

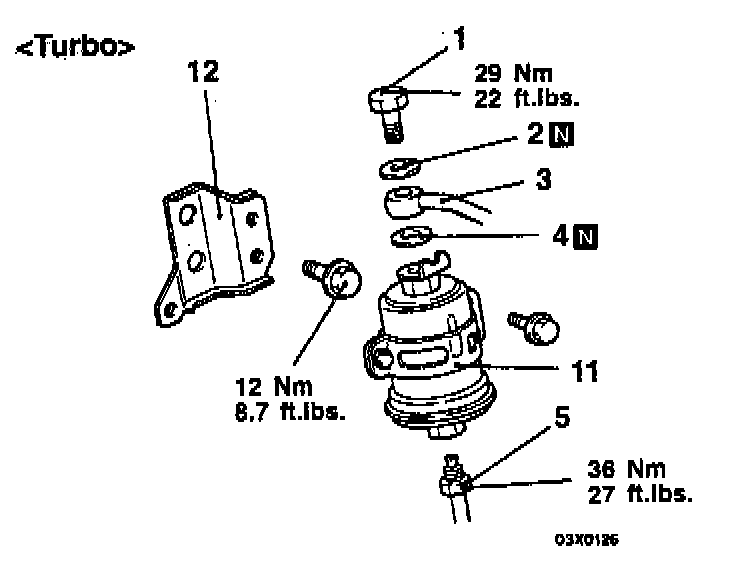

Removal Items
1. Eye bolt
2. Gasket
3. High-pressure fuel hose connection
4. Gasket
5. Fuel main pipe connection
6. Eye bolt
7. Gasket
8. Connector
9. Gasket
10. Pressure regulator
11. Fuel filter
12. Fuel filter bracket

Removal Service Points

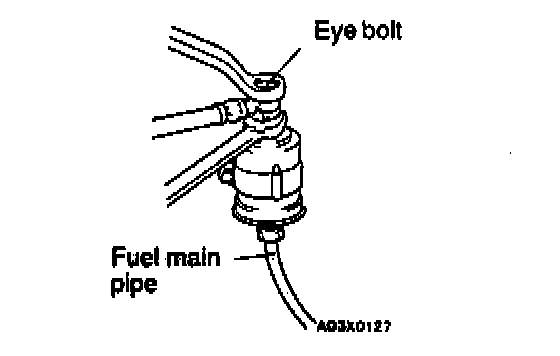

Eye Bolt Removal





Hold the fuel filter with a spanner and remove the eye bolt.
Caution: As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.

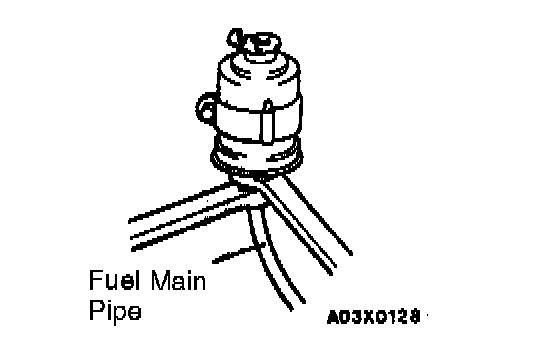

Fuel Main Pipe Disconnection
Hold the fuel filter with a spanner and loosen the flare nut.
Then disconnect the fuel main pipe.
