Trailing Arm: Service and Repair

REMOVAL

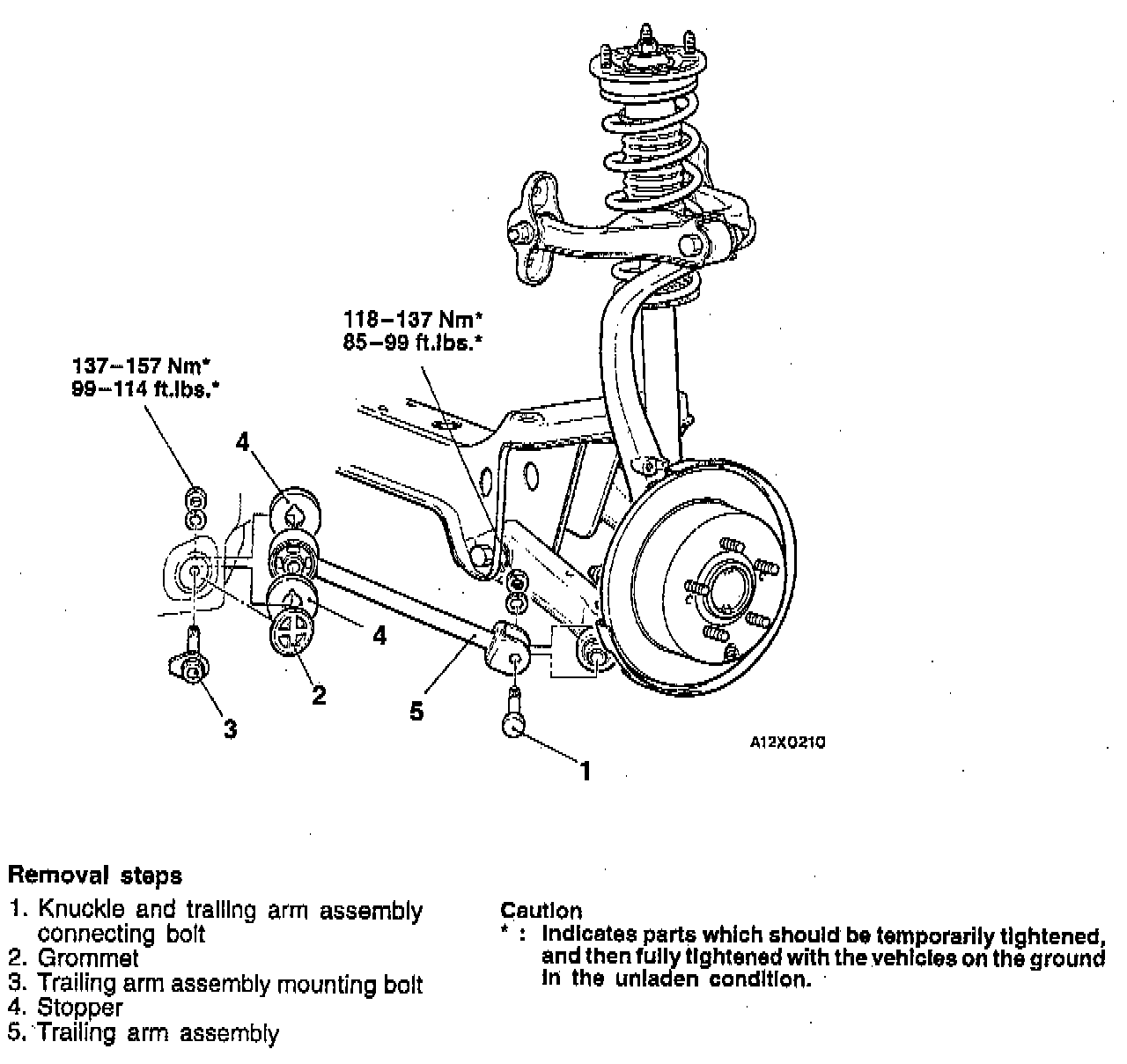

Follow removal steps outlined in the illustration.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the trailing arm for bends or damage.

INSTALLATION
Follow removal steps outlined in the illustration in reverse order, noting the following.
