Centralized Relay
>>
Relay Box In Engine Compartment
Relay Box In Engine Compartment

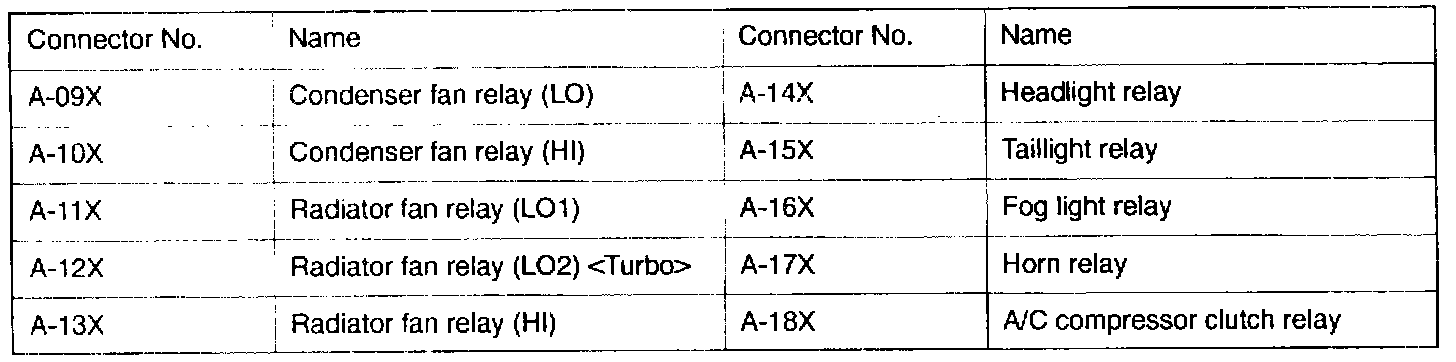

Centralized Relay:
Centralized Relay:
