Wiper Motor: Service and Repair

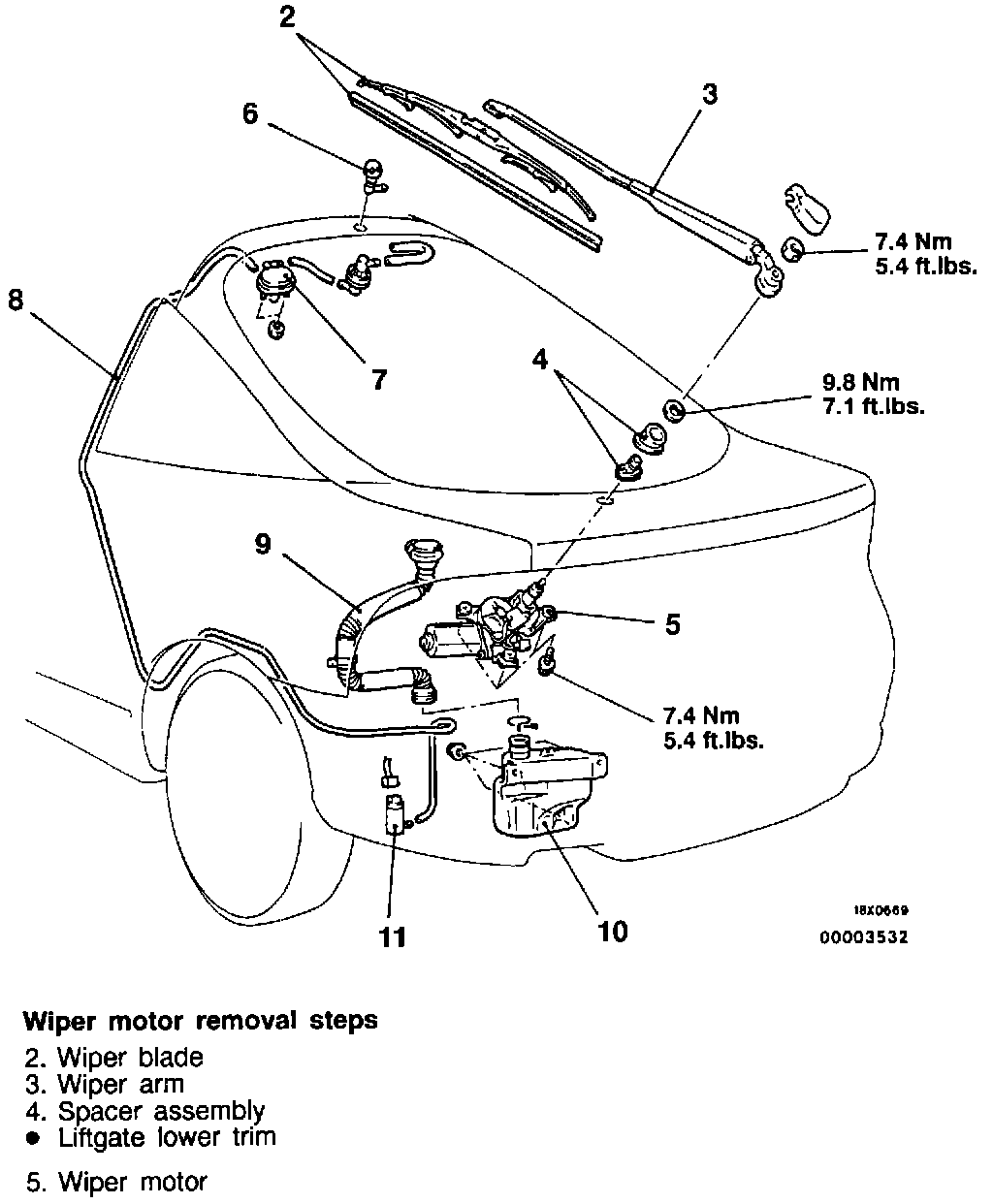

Rear Wiper Motor - Removal And Installation:

REMOVE
2. Wiper blade
3. Wiper arm
4. Spacer assembly
- Liftage lower trim
5. Rear wiper motor

INSTALL
2. Rear wiper motor
- Liftage lower trim
3. Spacer assembly
4. Wiper arm
5. Wiper blade
