Cruise Control: Description and Operation
INTRODUCTIONSpeed Control Switch:
Speed Control System:

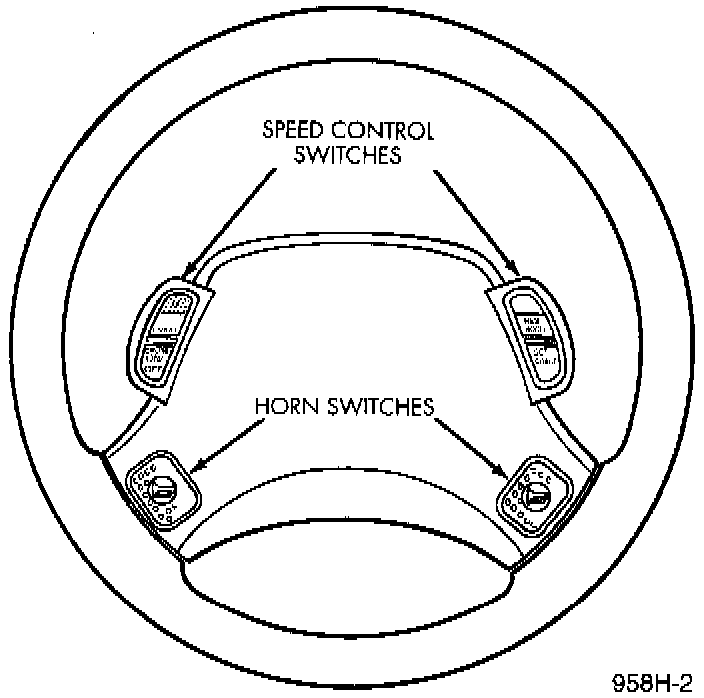

The speed control system is electronically controlled and vacuum operated. The electronic control is integrated into the powertrain control module, located on the right side under the air cleaner. The controls are located on the steering wheel and consist of two switches. The ON and OFF, buttons are located on the upper left side of the airbag module. The RESUME/ACCEL and SET/COAST buttons are located on the upper right side of the airbag module. For identification and location of the major components.
The system is designed to operate at speeds above 35 mph (50 km/h).
WARNING: THE USE OF SPEED CONTROL IS NOT RECOMMENDED WHEN DRIVING CONDITIONS DO NOT PERMIT MAINTAINING A CONSTANT SPEED, SUCH AS IN HEAVY TRAFFIC OR ON ROADS THAT ARE WINDING, ICY, SNOW COVERED, OR SLIPPERY.
SYSTEM OPERATION
Speed Control Servo
The servo unit consists of a solenoid valve body, and a vacuum chamber. The PCM controls the solenoid valve body The solenoid valve body controls the application and release of vacuum to the diaphragm of the vacuum servo. The servo unit cannot be repaired and is serviced only as a complete assembly.
Speed Control Switches
There are two separate switch pods that operate the speed control system. The steering-wheel mounted switches use multiplexed circuits to provide inputs to the PCM for ON, OFF, RESUME/ACCELERATE, SET/COAST and CANCEL modes. Refer to the owner's manual for more information on speed control switch functions and setting procedures.
When speed control is selected by depressing the ON switch, the PCM allows a set speed to be stored in RAM for speed control. To store a set speed, depress the COAST/SET switch while the vehicle is moving at a speed between 30 and 85 mph. In order for the speed control to engage, the brakes cannot be applied, nor can the gear selector be indicating the transmission is in Park or Neutral.
The speed control can be disengaged manually by:
- Stepping on the brake pedal
- Depressing the OFF switch
- Depressing the CANCEL switch.
The speed control can be disengaged also by any of the following conditions:
- An indication of Park or Neutral
- The VSS signal increases at a rate of 10 mph per second (indicates that the co-efficient of friction between the road surface and tires is extremely low)
- An rpm increase without a VSS signal increase (indicates that the clutch has been disengaged)
- Excessive engine rpm (indicates that the transmission may be in a low gear)
- The VSS signal decreases at a rate of 10 mph per second (indicates that the vehicle may have decelerated at an extremely high rate)
- If the actual speed is not within 20 mph of the set speed
- The previous disengagement conditions are programmed for added safety.
- Once the speed control has been disengaged, depressing the RES/ACCEL switch restores the vehicle to the target speed that was stored in the PCM's RAM.
NOTE: Depressing the OFF switch will erase the set speed stored in the PCM's RAM.
If, while the speed control is engaged, the driver wishes to increase vehicle speed, the PCM is programmed for an acceleration feature. With the RES/ ACCEL switch held closed, the vehicle accelerates slowly to the desired speed. The new target speed is stored in the RAM when the RES/ACCEL switch is released. The PCM also has a "tap-up" feature in which vehicle speed increases at a rate of approximately 2 mph for each momentary switch activation of the RES/ACCEL switch.
The PCM also provides a means to decelerate with. out disengaging speed control. To decelerate from an existing recorded target speed, depress and hold the SET/COAST switch until the desired speed is reached. Then release the switch. The ON and OFF switches operates two components: the PCM's ON/OFF input, and the battery voltage to the brake switch, which powers the speed control servo.
The individual switches cannot be repaired. If one switch fails, the entire switch module must be replaced.
Stop Lamp Switch
Vehicles equipped with the speed control option use a dual function stop lamp switch. The switch is mounted in the same location as the conventional stop lamp switch, on the brake pedal mounting bracket under the instrument panel. The PCM monitors the state of the dual function stop lamp switch.
Servo Cable

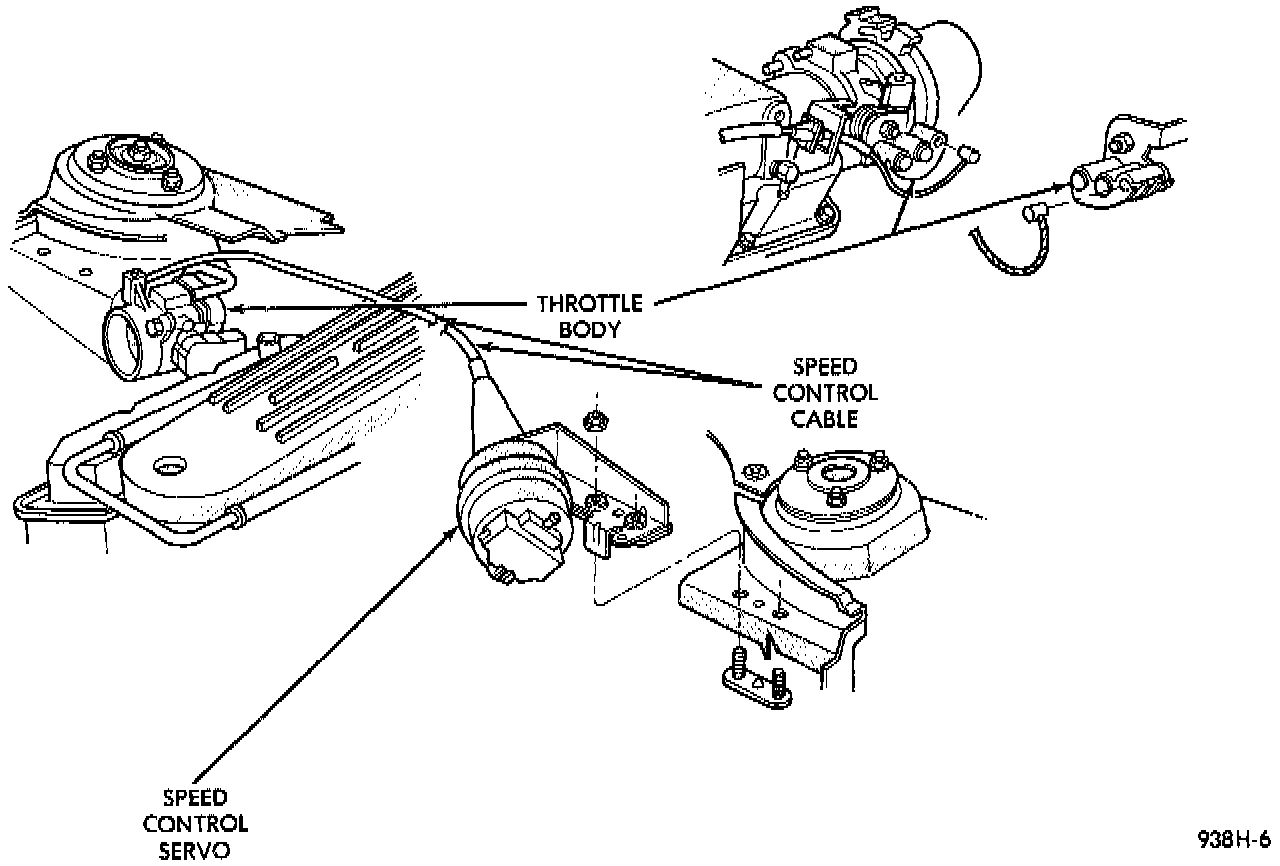

The speed control servo cable is connected between the speed control vacuum servo diaphragm and the throttle body control linkage. This cable causes the throttle control linkage to open or close the throttle valve in response to movement of the vacuum servo diaphragm.
Powertrain Control Module
The speed control electronic control circuitry is integrated into the Powertrain Control Module (PCM). The PCM is located in the engine compartment. The PCM speed control functions are monitored by the On-Board Diagnostics (OBD). All OBD-sensed systems are monitored by the PCM. Each monitored circuit is assigned a Diagnostic Trouble Code (DTC). The PCM will store a DTC in electronic memory for any failure it detects. See Starting and Charging/Charging System/Testing and Inspection/Procedures/On-Board Diagnostic Tests. The PCM cannot be repaired and must be replaced if faulty.
Vacuum Reservoir
The reservoir contains a one-way check valve to trap engine vacuum in the reservoir. When engine vacuum drops, as in climbing a grade while driving, the reservoir supplies the vacuum needed to maintain proper speed control operation. The vacuum reservoir cannot be repaired and must be replaced if faulty.
Vehicle Speed Sensor
The Vehicle Speed Sensor (VSS) is a pulse generator mounted to an adapter near the transmission output shaft. The sensor is driven through the adapter by a speedometer pinion gear. The VSS pulse signal to the speedometer/odometer is monitored by the PCM speed control circuitry to determine vehicle speed and to maintain speed control set speed. Refer to the appropriate Powertrain Diagnostic Procedures for diagnosis and testing of this component.
CIRCUIT OPERATION
The vehicle speed control system is powered by the Powertrain Control Module (PCM). The vehicle speed control switches, located in the steering wheel, use resistors internal to the switch to send a signal to the PCM indicating what the operator is requesting. The V37 circuit, from cavity 41 of the PCM supplies power for the switch. Circuit Z2 is the ground for the switch. The Z2 circuit terminates at the Airbag Control Module (ACM) bracket.
The V37 and Z2 circuits are spliced internal to the clockspring to provide power and ground for the two switches.
When the system is turned ON, the vehicle is moving forward, vehicle speed is above 35 mph (50 km/h), and the SET switch is pressed, the PCM looks at the vehicle speed through the vehicle speed input from the Transmission Control Module (TCM) on circuit G7.
With this information, the PCM sends a signal to the vehicle speed control servo, on the V36 circuit, and the servo applies vacuum to hold the desired speed. Circuit V36 connects to cavity 78 of the PCM.
When the operator selects the COAST feature in the system, the PCM measures the resistance on the V37 circuit and uses this information to apply voltage on the V35 circuit, which is the vent side of the vehicle speed control servo. Circuit V35 connects to cavity 80 of the PCM.
Grounding for the vehicle speed control servo is supplied on the Z1 circuit. Circuit Z1 terminates at the left strut tower. An additional input to the servo is provided by the stop lamp switch on the V30 circuit. When the operator presses on the brakes the ground path for the V30 circuit is broken. This break in the ground path causes the vehicle speed control servo to vent and disengage the system.
Circuits V32 and K29 are used as inputs to the PCM to indicate when the operator is applying the brakes, as vehicle speed control is canceled when this happens. Circuit V32 connects to cavity 5 of the PCM. Circuit K29 connects to cavity 62 of the PCM.
