LH/CP

REMOVAL
1. Release trunk latch and open trunk.
2. From under rear deck panel, disengage CHMSL wire connector from body harness.
3. Remove rear deck upper panel.

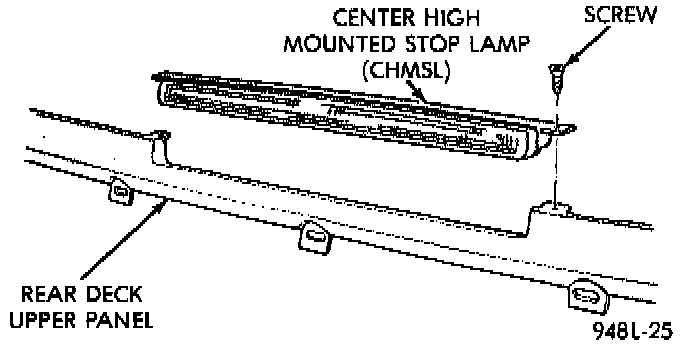

Center High Mounted Stop Lamp (CHSMSL):

4. Remove screws holding CHMSL to rear deck upper panel.

INSTALLATION
1. Place CHMSL in position on rear deck upper panel.
2. Install screws to hold CHMSL to rear deck upper panel.
3. Install rear deck upper panel.
4. Engage CHMSL wire connector to body harness.
5. Verify CHMSL operation.
