Control Unit Locations

Control Unit Location Overview:

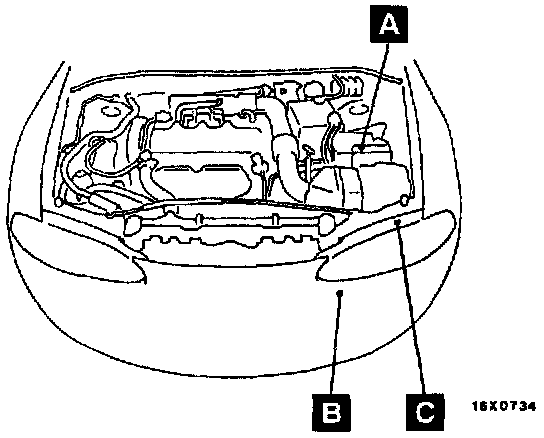

Control Unit Location Views A - B:

Control Unit Locations Views C - L:

NAME SYMBOL
ABS-ECU C
Automatic Compressor-ECM H
Auto-cruise-ECU J
DRL-ECU B
ETACS-ECU E
ELC 4-speed Automatic Transaxle Control Module G
Engine Control Module D
Receiver L
SRS-ECU F
Sunroof-ECU F
