Miscellaneous Listed Components

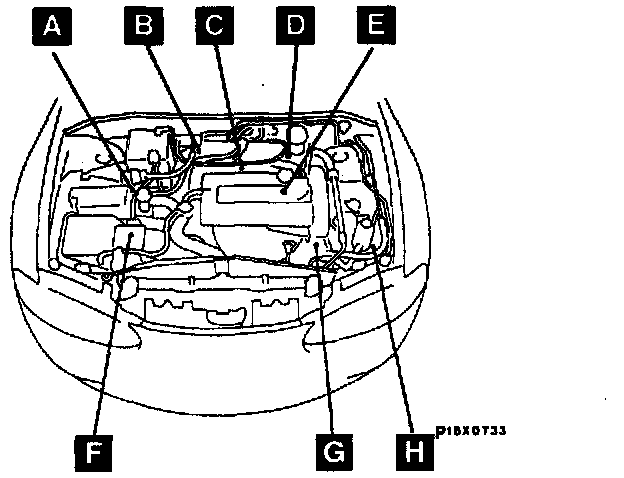

Other Devices Location Overview:

Other Devices Locations Views A - B:

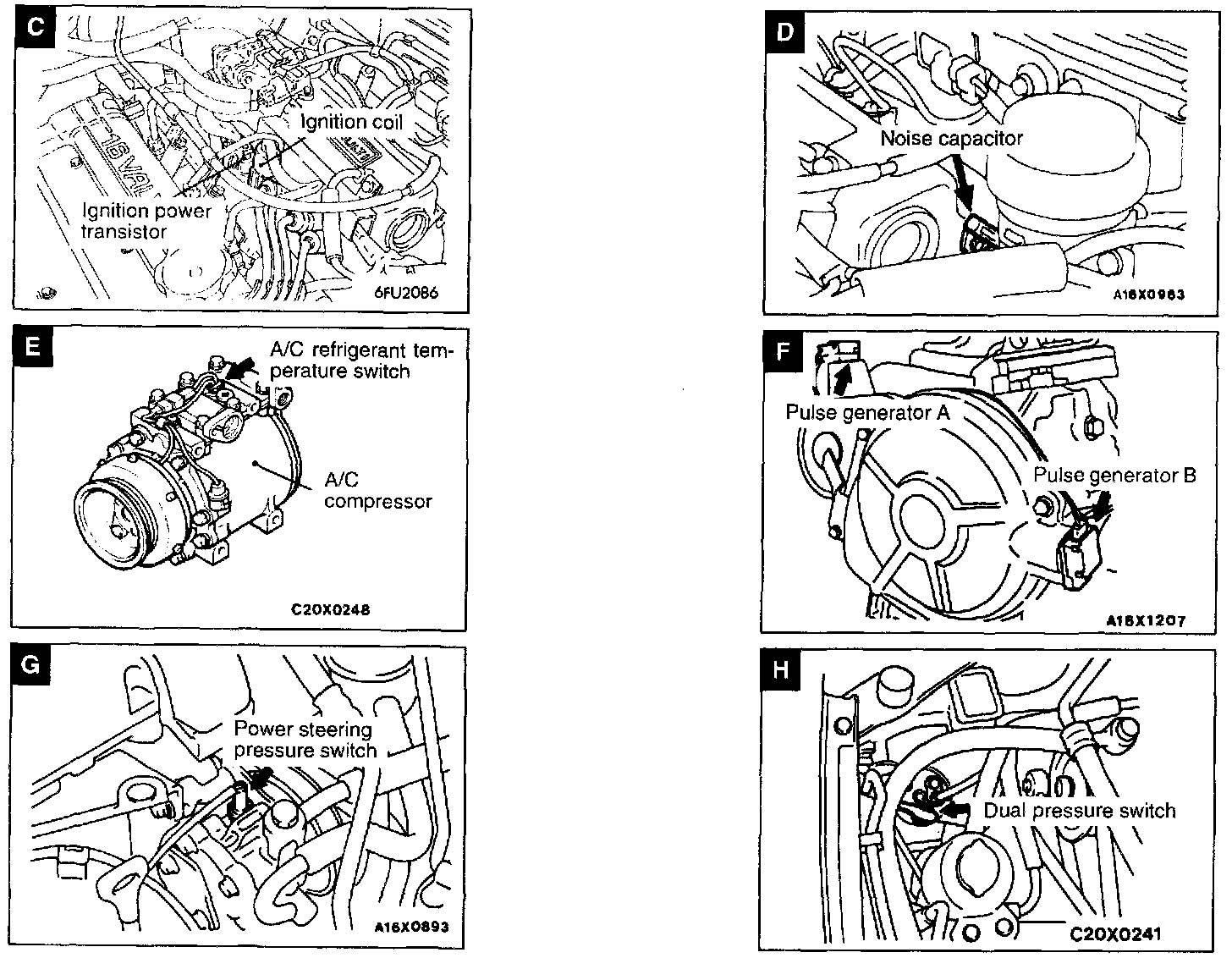

Other Devices Locations Views C - H:

NAME SYMBOL
A/C refrigerant temperature switch E
Auto-cruise control vacuum pump A
Dual pressure switch H
Idle air control motor B
Ignition coil C
Ignition power transistor C
Noise capacitor D
Power steering pressure switch G
Pulse generator A, B F
