Condenser Fan Motor Relay, HVAC

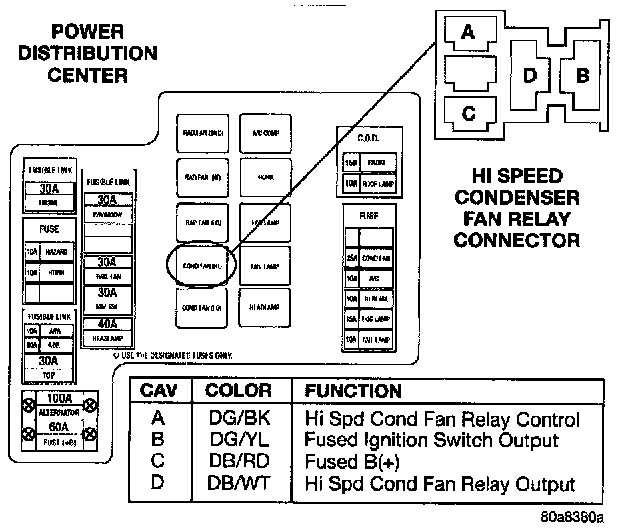

Power Distribution Center, Hi Speed Condenser Fan Relay Connector:



Power Distribution Center, Hi Speed Condenser Fan Relay Connector:
