Antilock Brakes / Traction Control Systems

Anti-Lock Braking System (Part 1 Of 5):

ABS-ECU
- Battery Back Up
- Power Source
Combination Meter
J/B

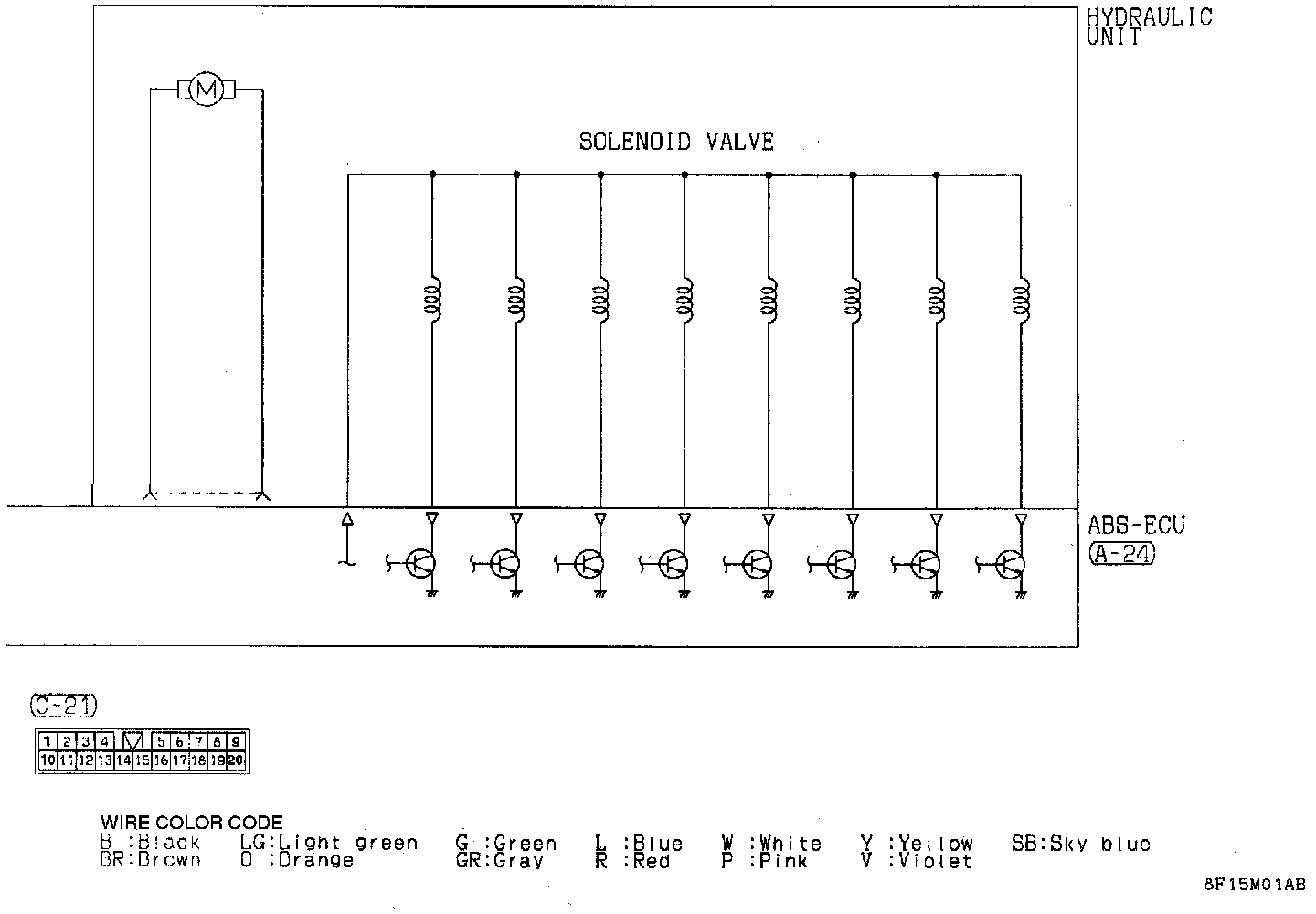

Anti-Lock Braking System (Part 2 Of 5):

ABS-ECU
Hydraulic Unit

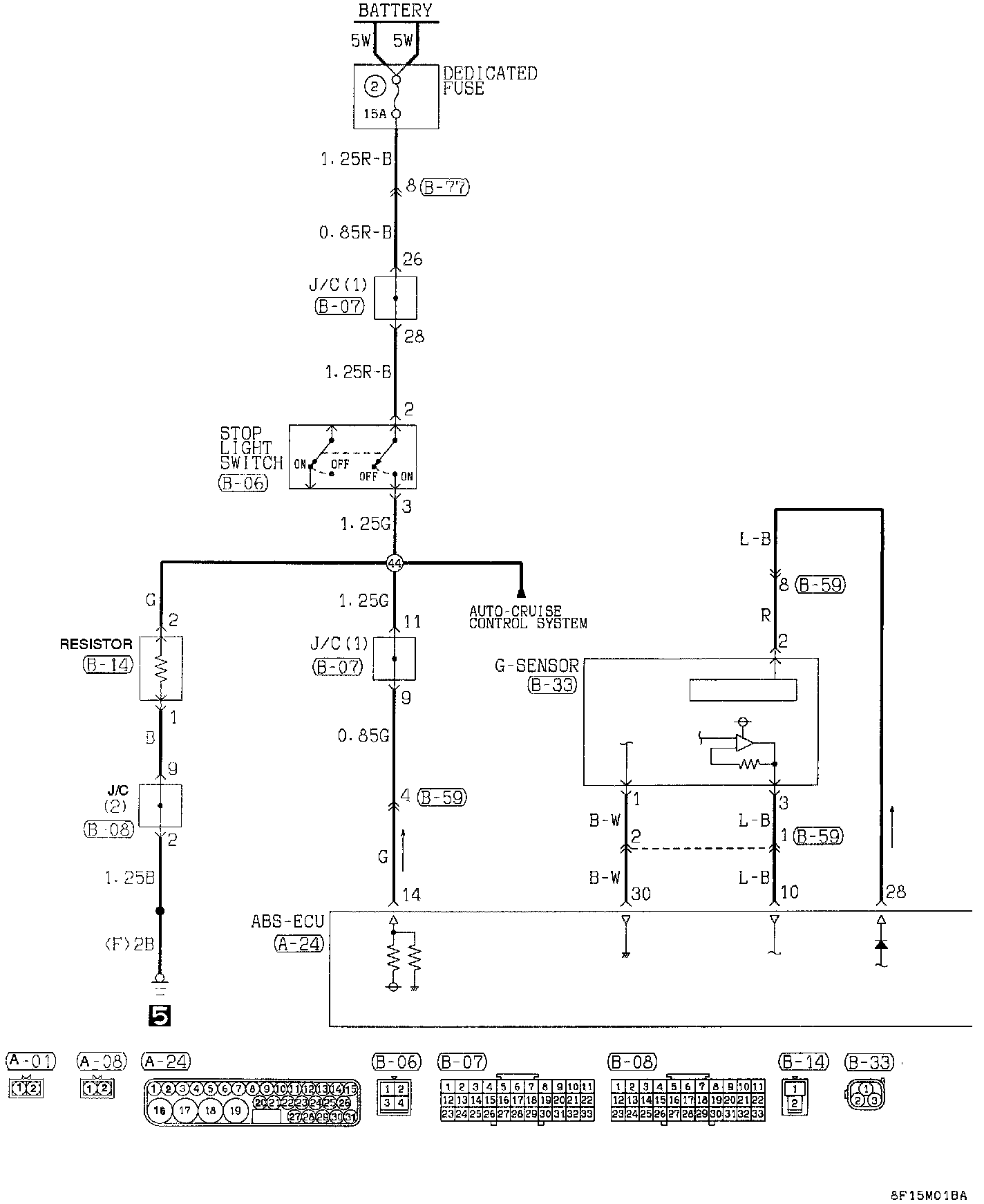

Anti-Lock Braking System (Part 3 Of 5):

ABS-ECU
Dedicated Fuse
G-Sensor
J/C (1)
J/C (2)
Resistor
Stop Light Switch

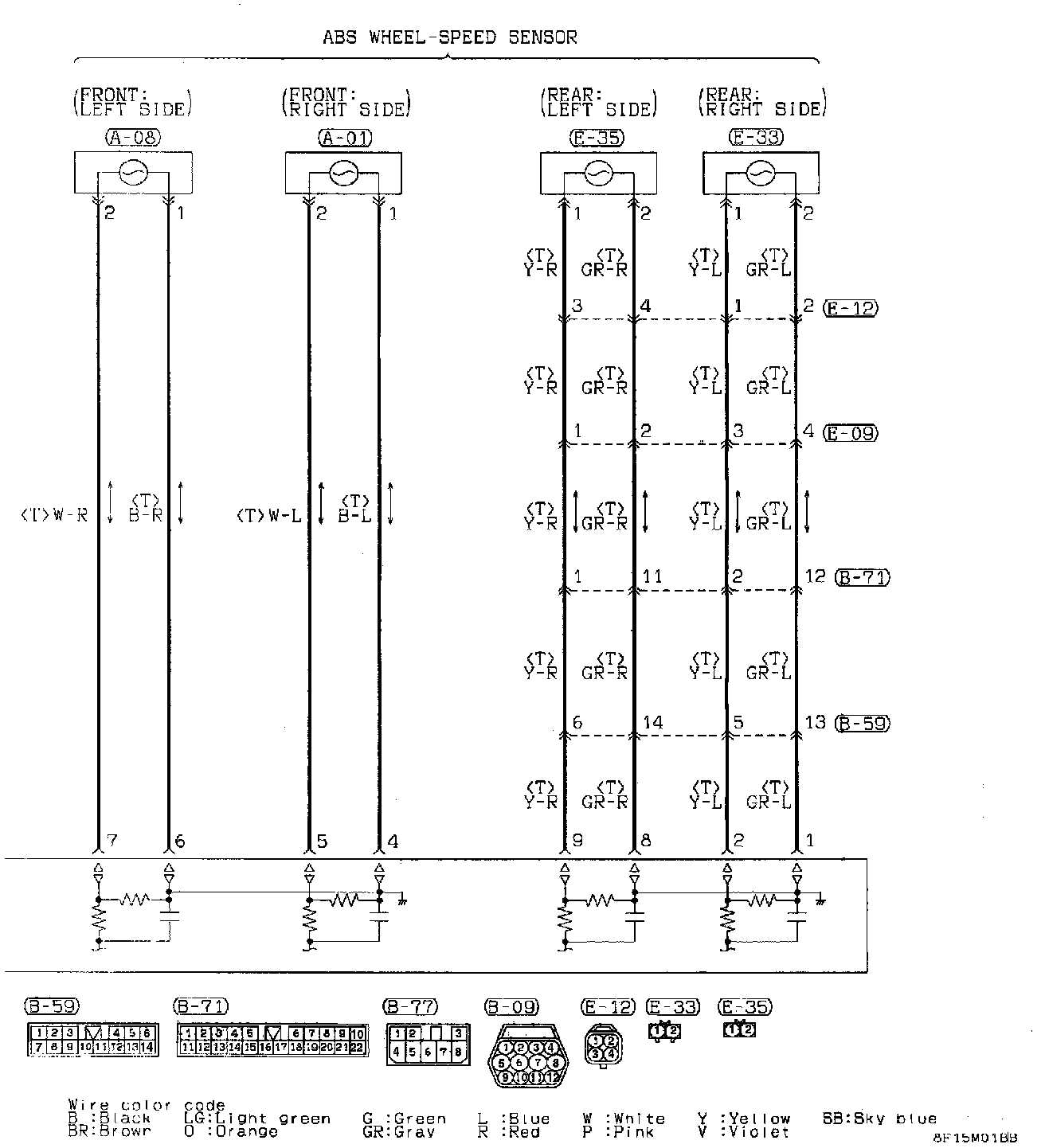

Anti-Lock Braking System (Part 4 Of 5):

ABS-ECU
ABS Wheel - Speed Sensor (Front And Rear: Left And Right Side)

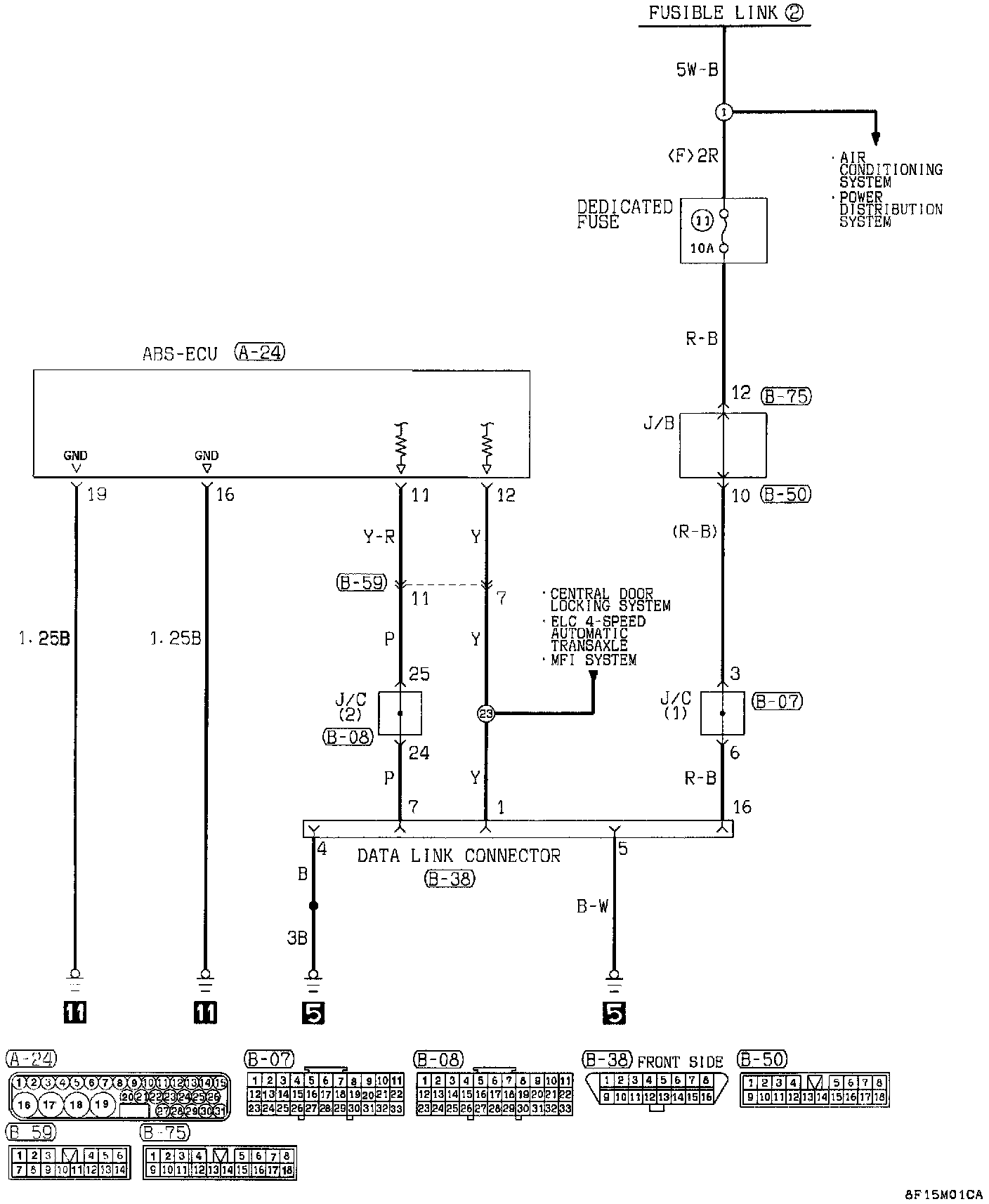

Anti-Lock Braking System (Part 5 Of 5):

ABS-ECU
Data Link Connector
Dedicated Fuse
J/B
J/C (1)
J/C (2)
