Transmission Control Systems

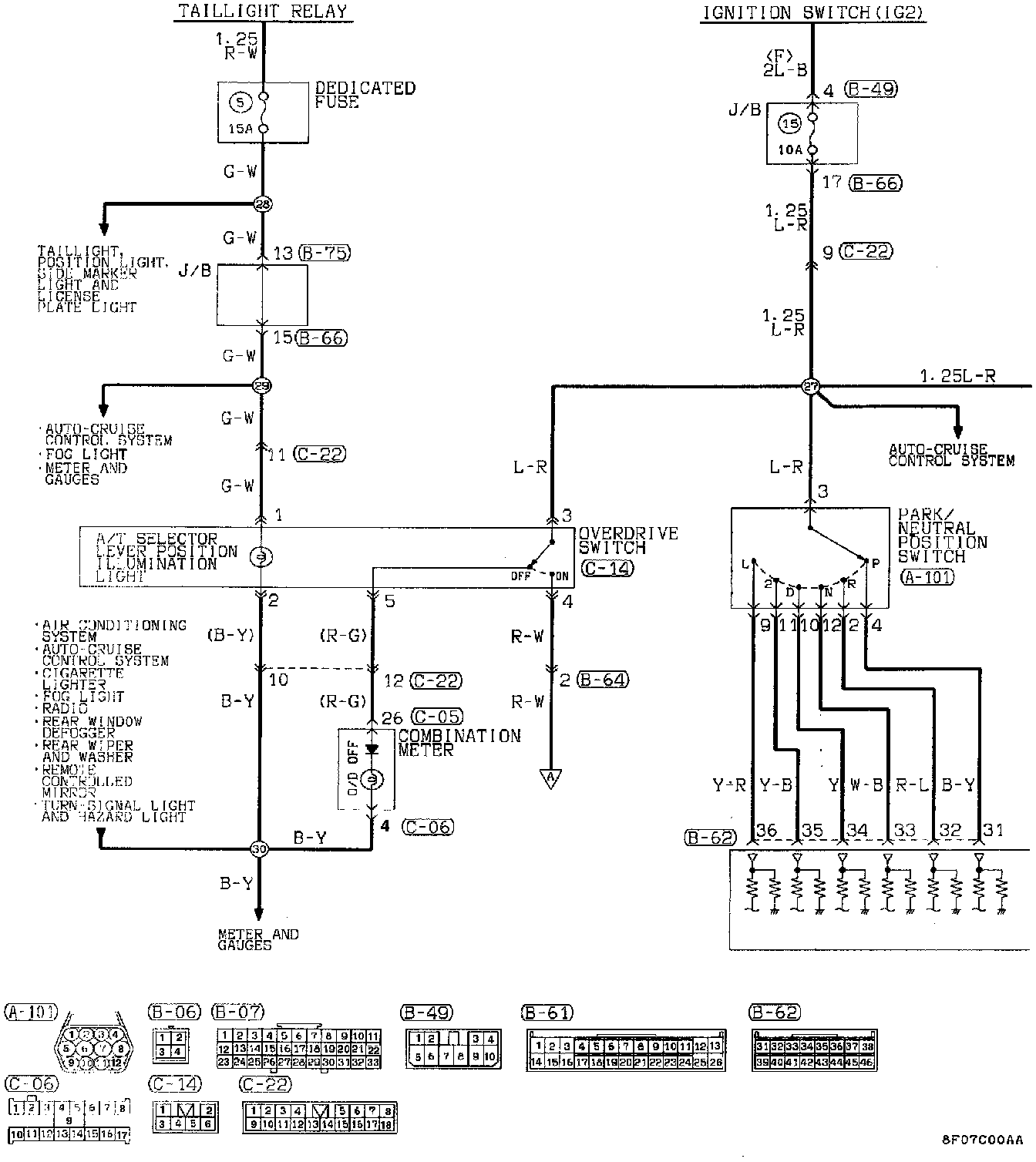

ELC 4-Speed Automatic Transaxle (Part 1 Of 6):

Combination Meter
Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
J/B
Overdrive Switch
[1][2]Park/Neutral Position Switch

ELC 4-Speed Automatic Transaxle (Part 2 Of 6):

Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
Power Source
J/C (1)
Stop Light Switch

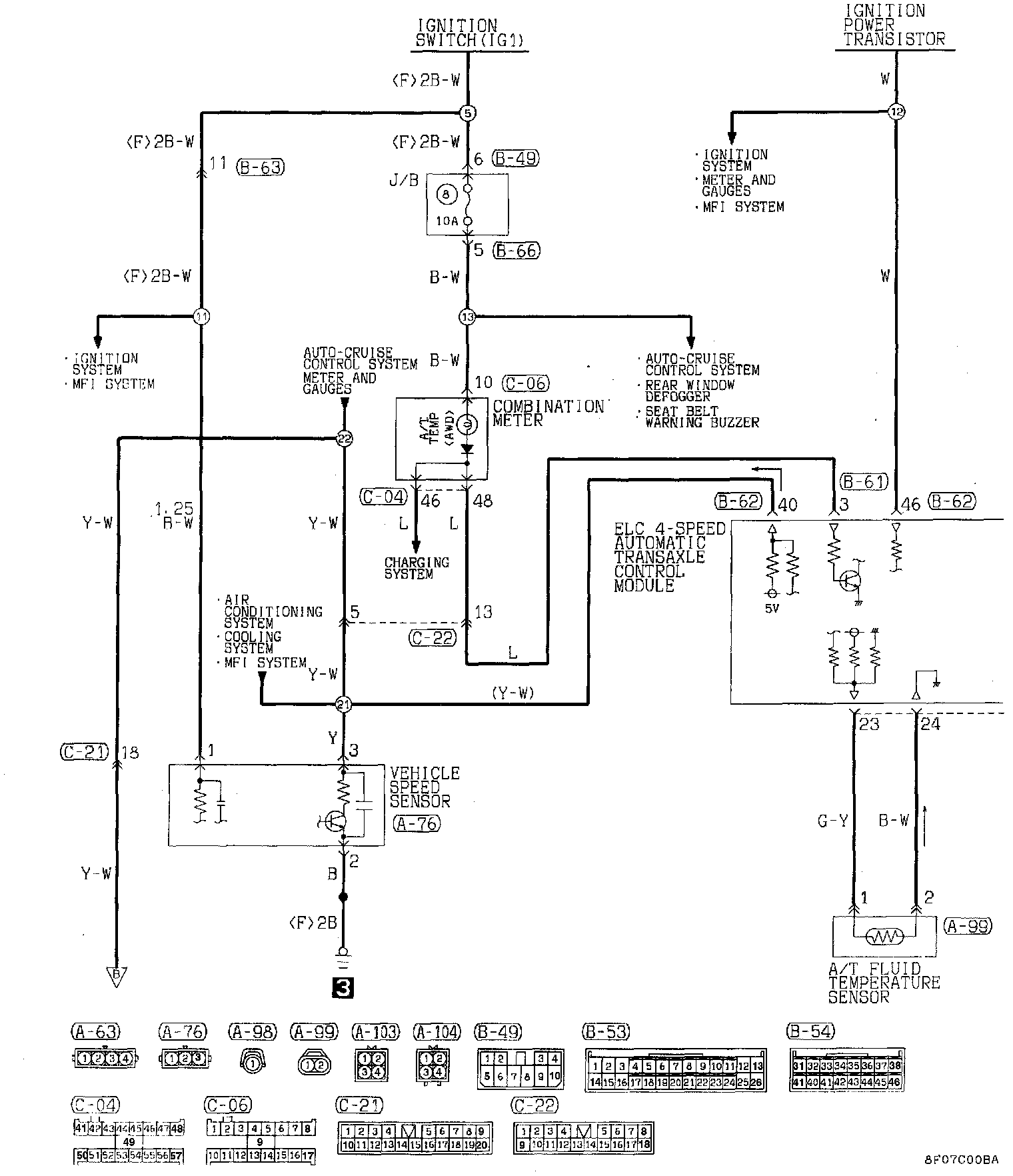

ELC 4-Speed Automatic Transaxle (Part 3 Of 6):

A/T Fluid Temperature Sensor
Combination Meter
ELC 4-Speed Automatic Transaxle Control Module
J/B
Vehicle Speed Sensor

ELC 4-Speed Automatic Transaxle (Part 4 Of 6):

Engine Control Module
ELC 4-Speed Automatic Transaxle Control Module
Kickdown Servo Switch
Oil Pressure Control Solenoid
Pulse Generator A
Pulse Generator B
Shift Control Solenoid A
Shift Control Solenoid B
Throttle Position Sensor
Torque Converter Clutch Control Solenoid

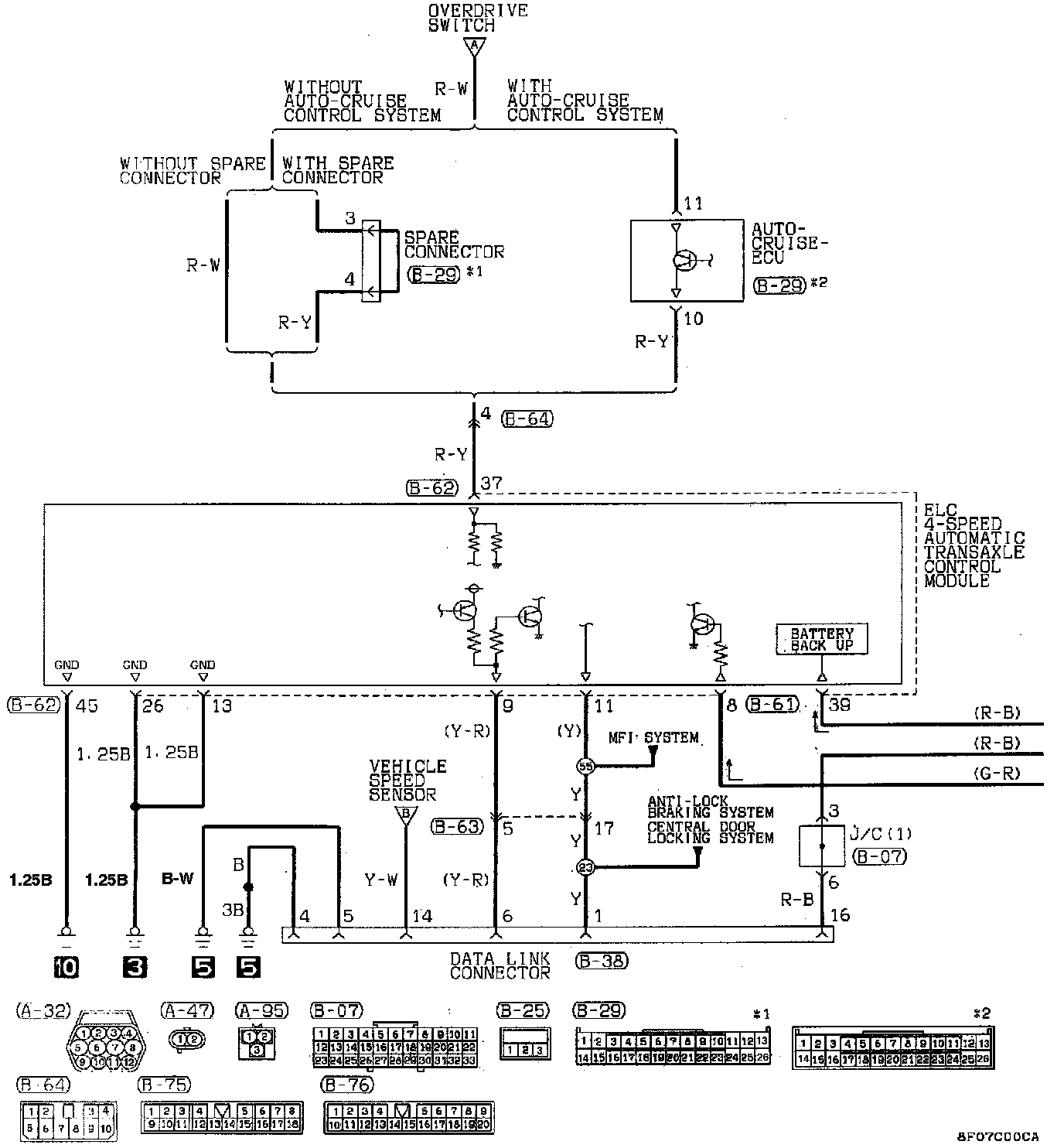

ELC 4-Speed Automatic Transaxle (Part 5 Of 6):

Auto Curise-ECU
Data Link Connector
ELC 4-Speed Automatic Transaxle Control Module
Battery Back Up
J/C (1)

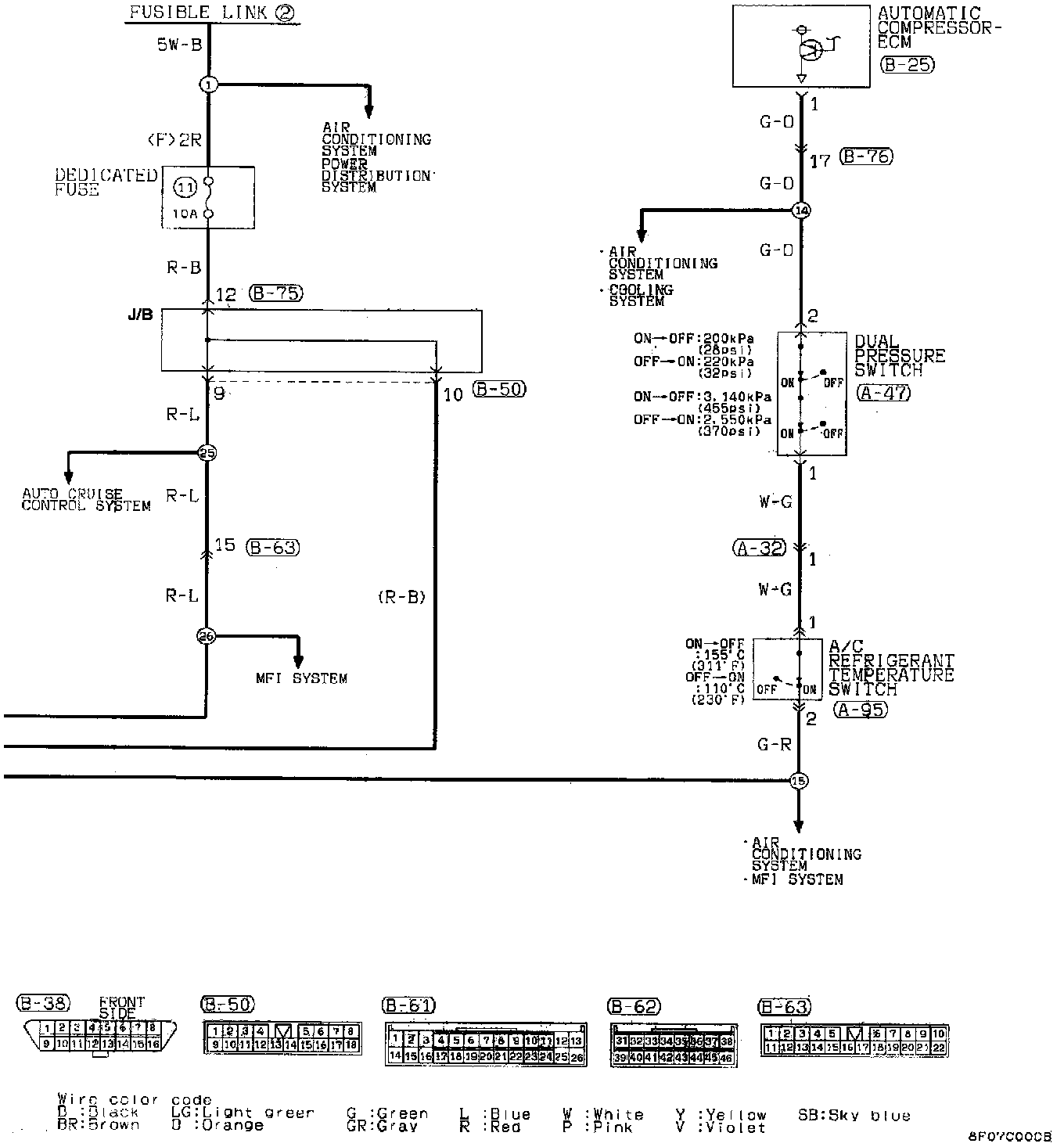

ELC 4-Speed Automatic Transaxle (Part 6 Of 6):

A/C Refrigerant Temperature Switch
Automatic Compressor-ECM
Dedicated Fuse
Dual Pressure Switch
J/B
