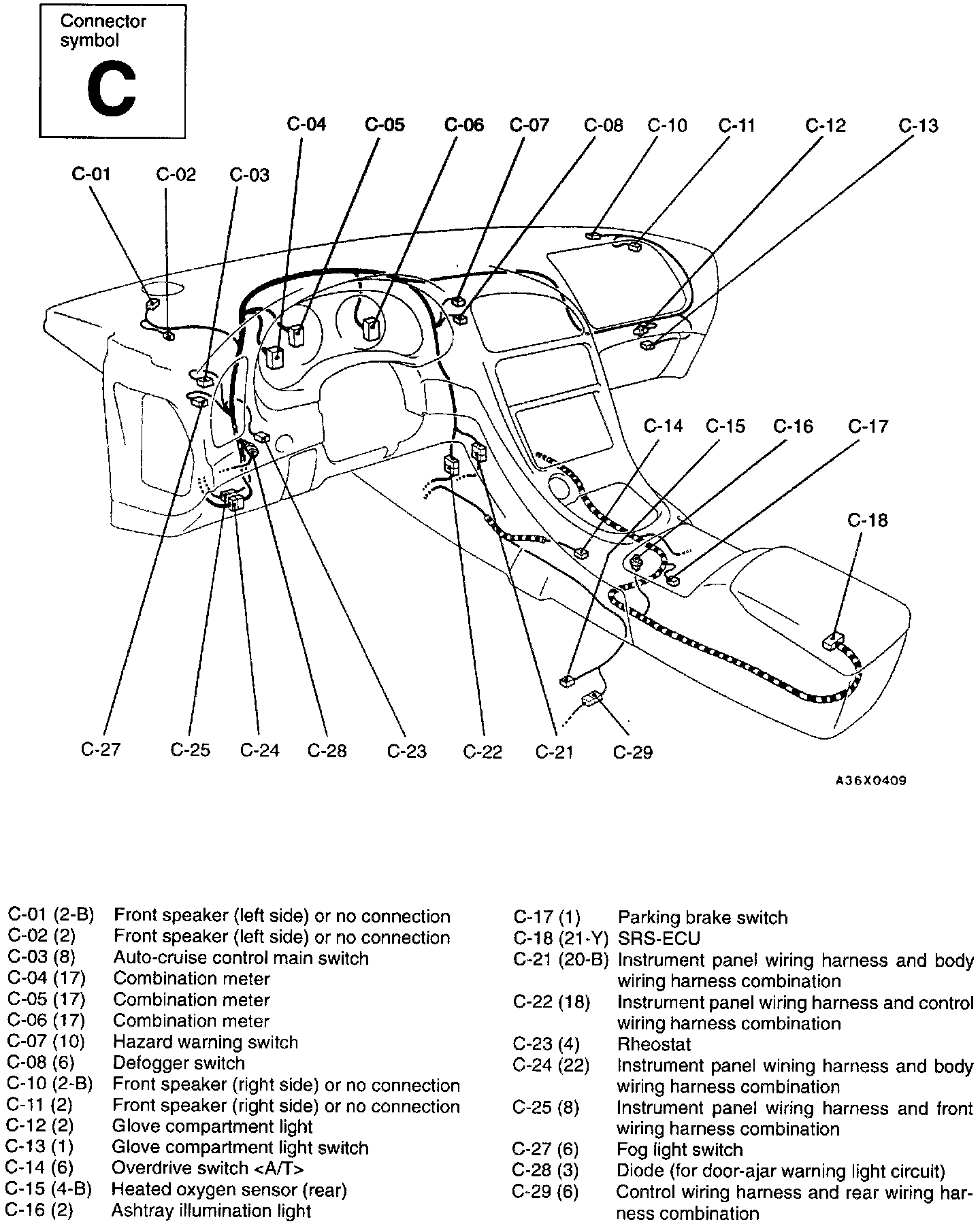

C Connectors - Instrument Panel And Floor Console Harness
C Connectors - Instrument Panel And Floor Console Harness
Instrument Panel And Floor Console:
