Blower Motor Switch: Testing and Inspection

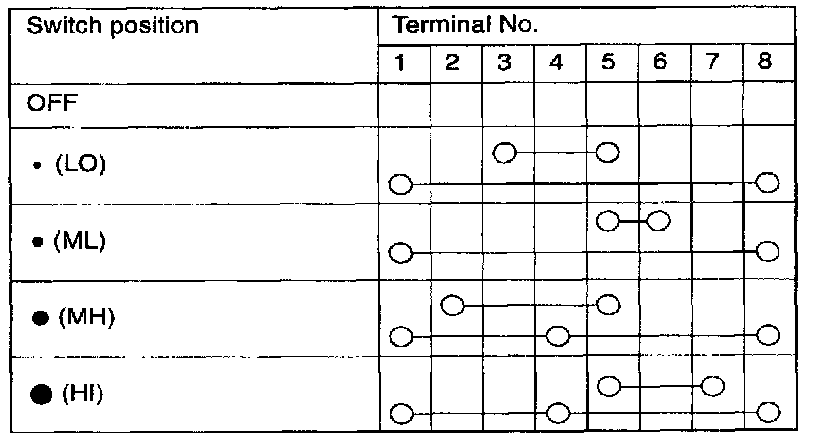

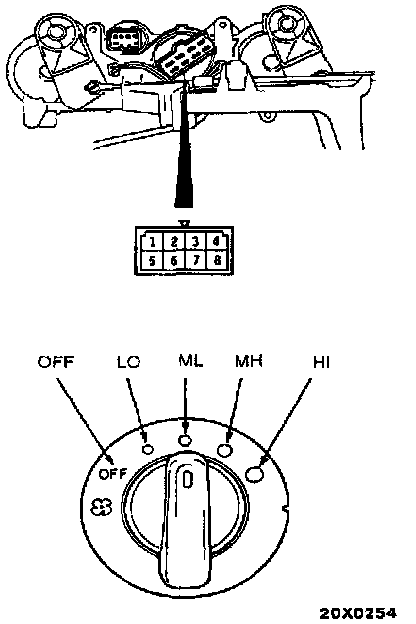

Test as shown in image and verify continuity is as shown in chart.
