Condenser HVAC: Service and Repair





REMOVAL

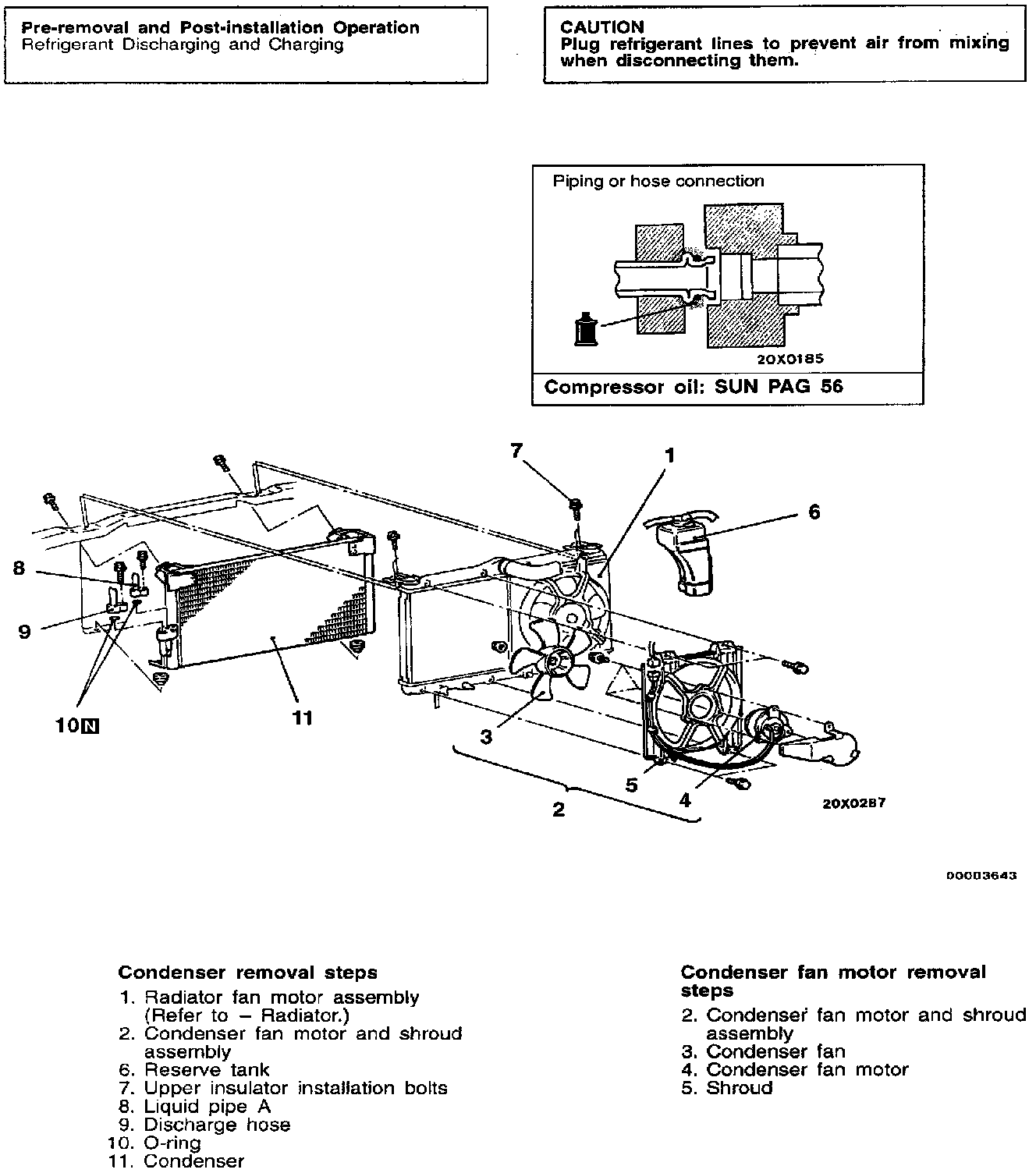

To remove follow steps in image.




Step 11 --- Condenser Removal

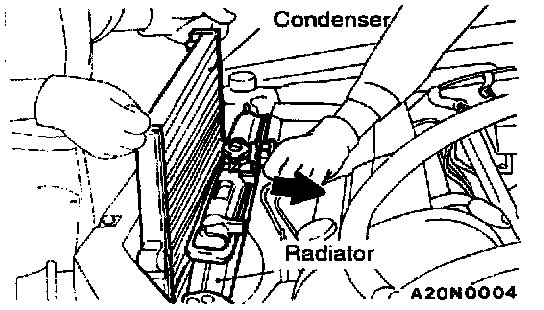

Move the radiator to the engine side and then lift up the condenser to remove it.


INSTALLATION
To install reverse steps in image and note the following:

Step 11 --- Condenser Installation
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil.

Compressor oil: SUN PAG 56
Quantity: 15 cubic cm (0.51 fl.oz.)
