Fog/Driving Lamp: Service and Repair

Removal

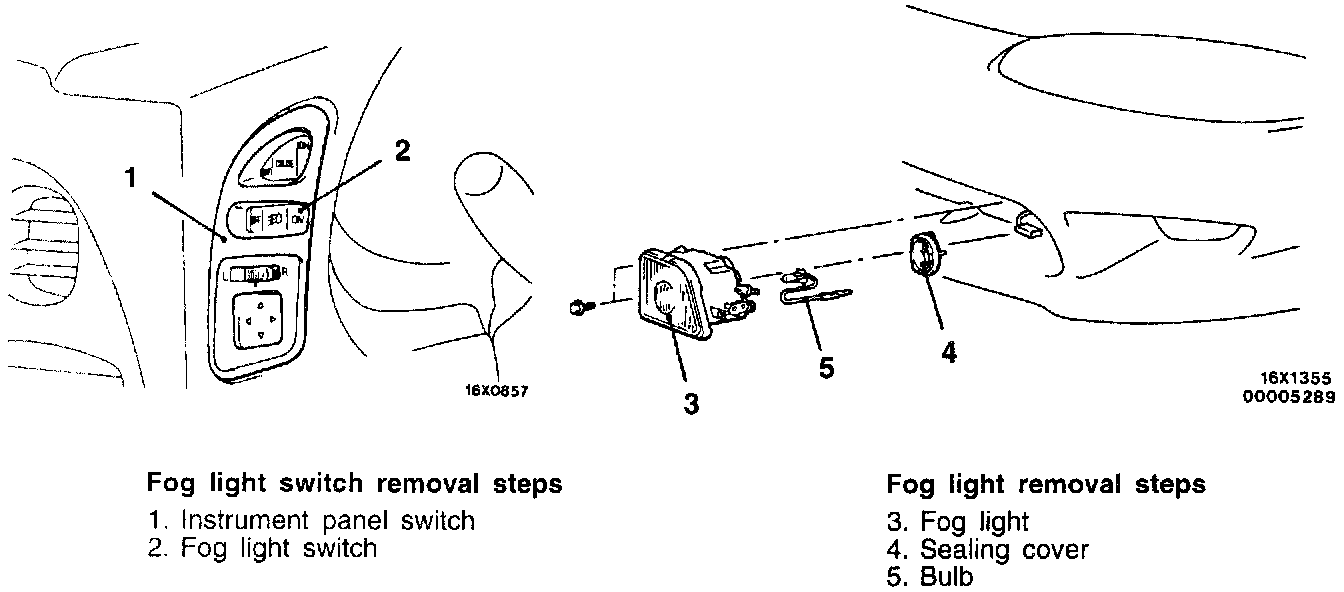

To remove follow the steps listed in the image.




Step 5: Bulb Removal
Remove the bulb attaching spring and pull out the bulb.

CAUTION: Do not touch the surface of the bulb glass with hands or dirty gloves. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

Installation
To install reverse the steps listed in the image.




Step4: Sealing Cover Installation

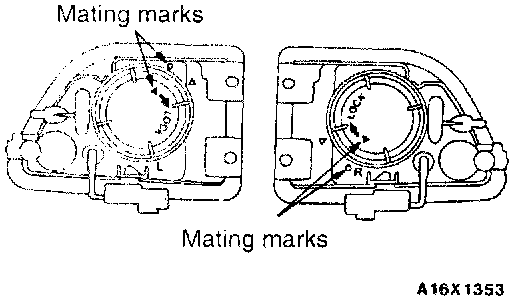

After aligning the mating marks, securely install the sealing cover.

CAUTION: If the sealing cover is not securely installed, the lens will be out of focus, or water will get inside the light unit.
