Rear Combination Light

CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions, Air Bag Module and Clock Spring.

Removal

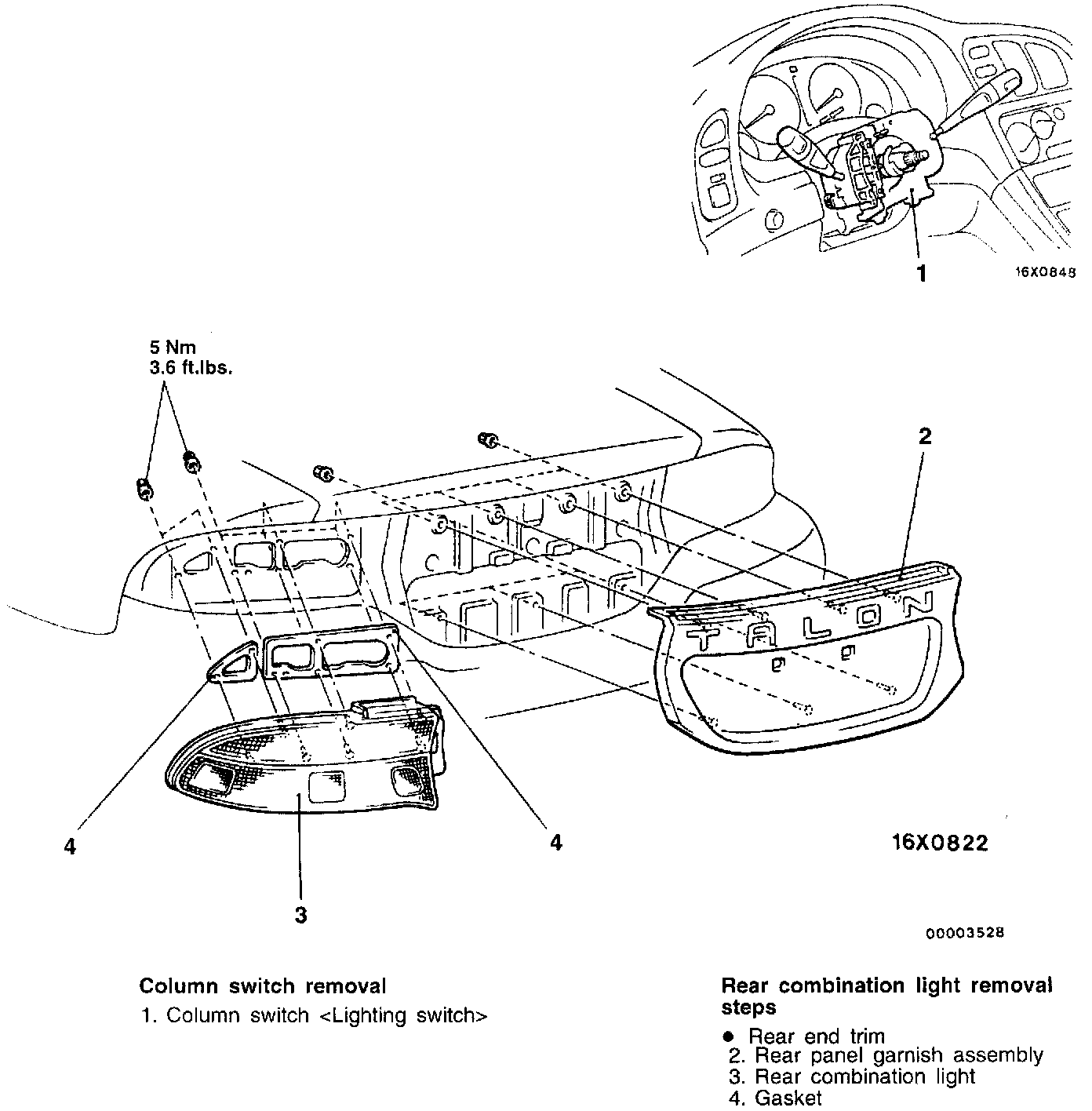

To remove follow the steps listed in the image and note the following.




Step 3: Rear Combination Light Removal

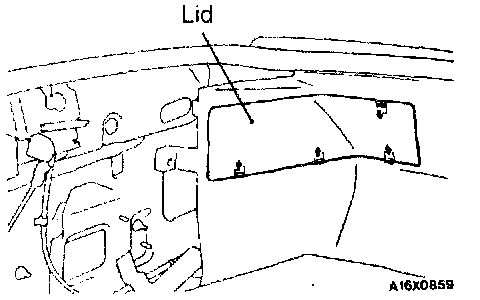

Slide the look knob of the lid in the direction of the arrow in the illustration to remove the lid, and then remove the rear combination light mounting nut.

Installation
To install reverse the steps listed in the image.
