Home >> Eagle >> 1998 >> Talon AWD L4-1997cc 2.0L DOHC Turbo VIN F SMFI >> Repair and Diagnosis >> Power and Ground Distribution >> Electrical Accessory Panel >> Locations

Electrical Accessory Panel: Locations

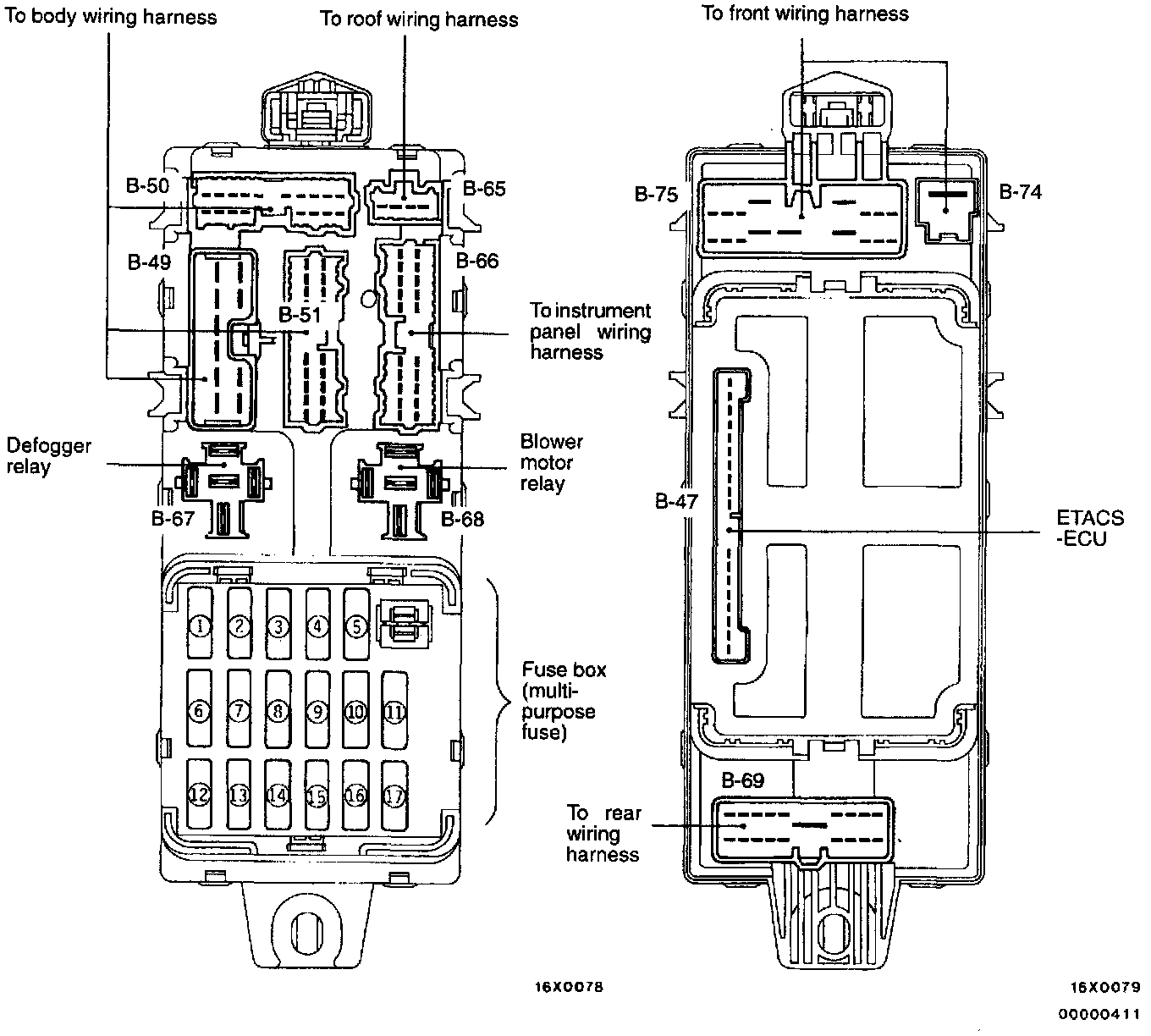

Junction Block:
