Power and Ground Distribution: Locations

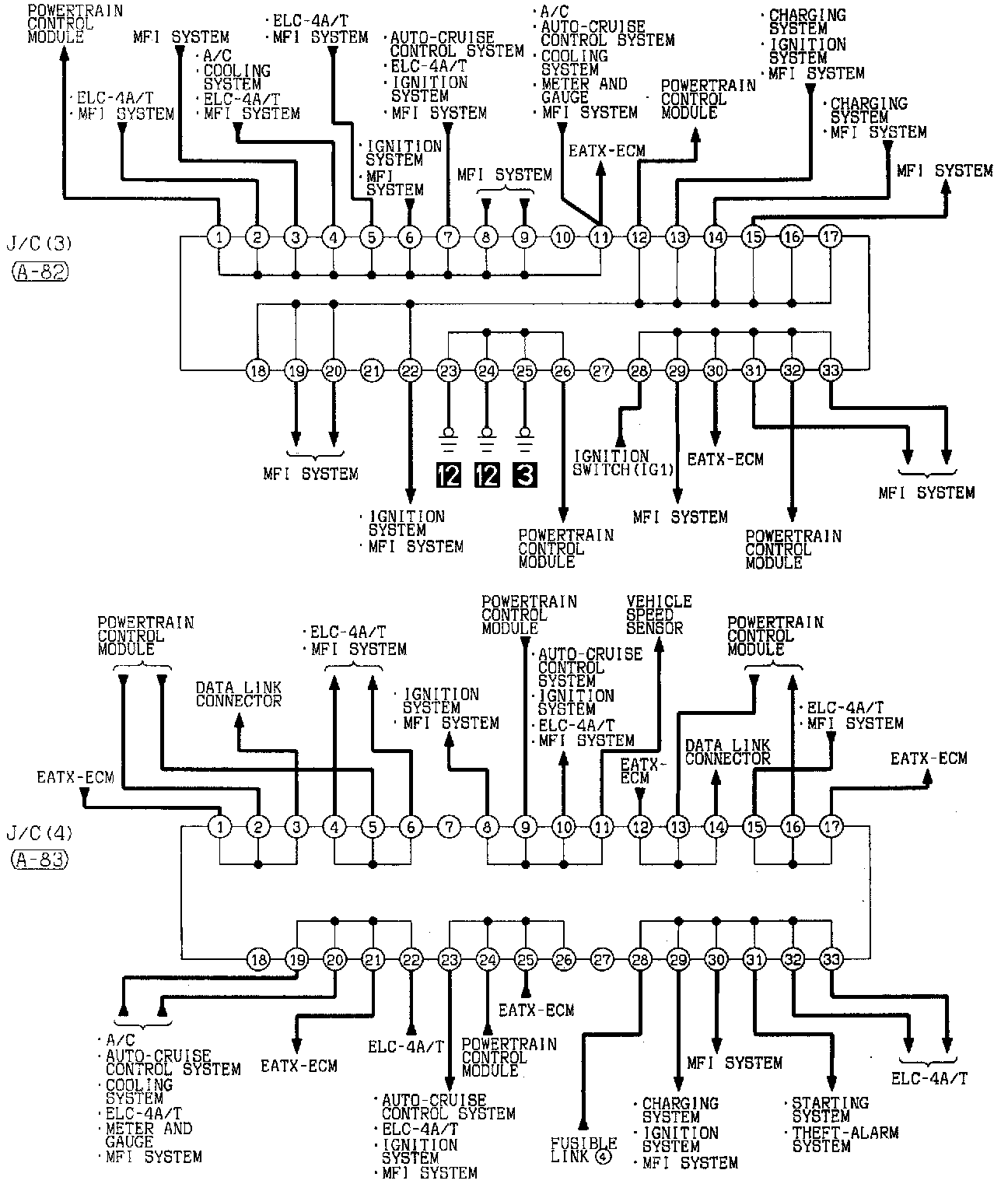

Junction Connector (J/C) (Part 1 Of 2):
Junction Connector (J/C) (Part 2 Of 2):
