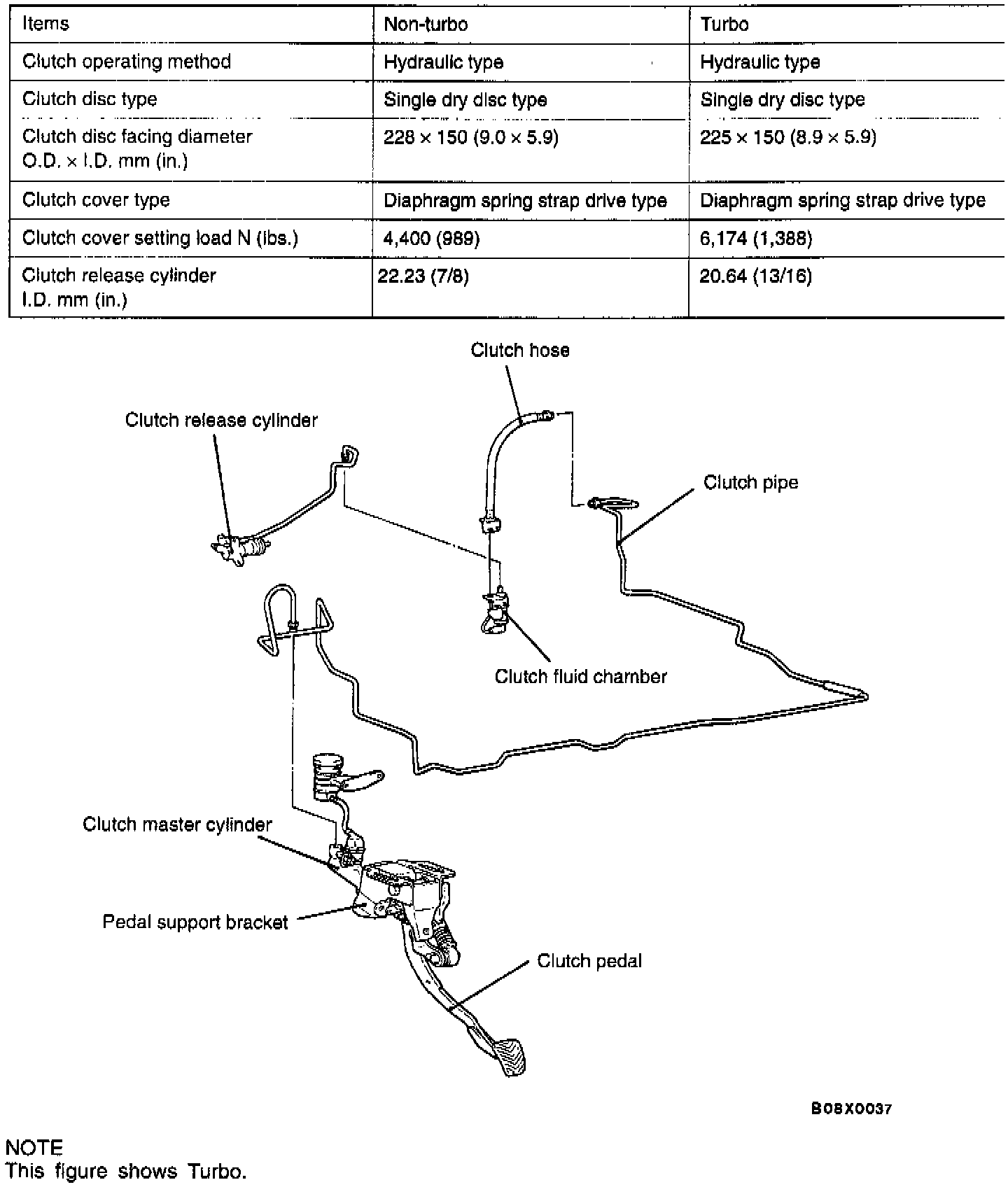

Clutch: Description and Operation
GENERAL INFORMATION
The clutch is a dry single-disc, diaphragm type; hydraulic pressure is used for the clutch control.
