Rear Wiper and Washer

Removal

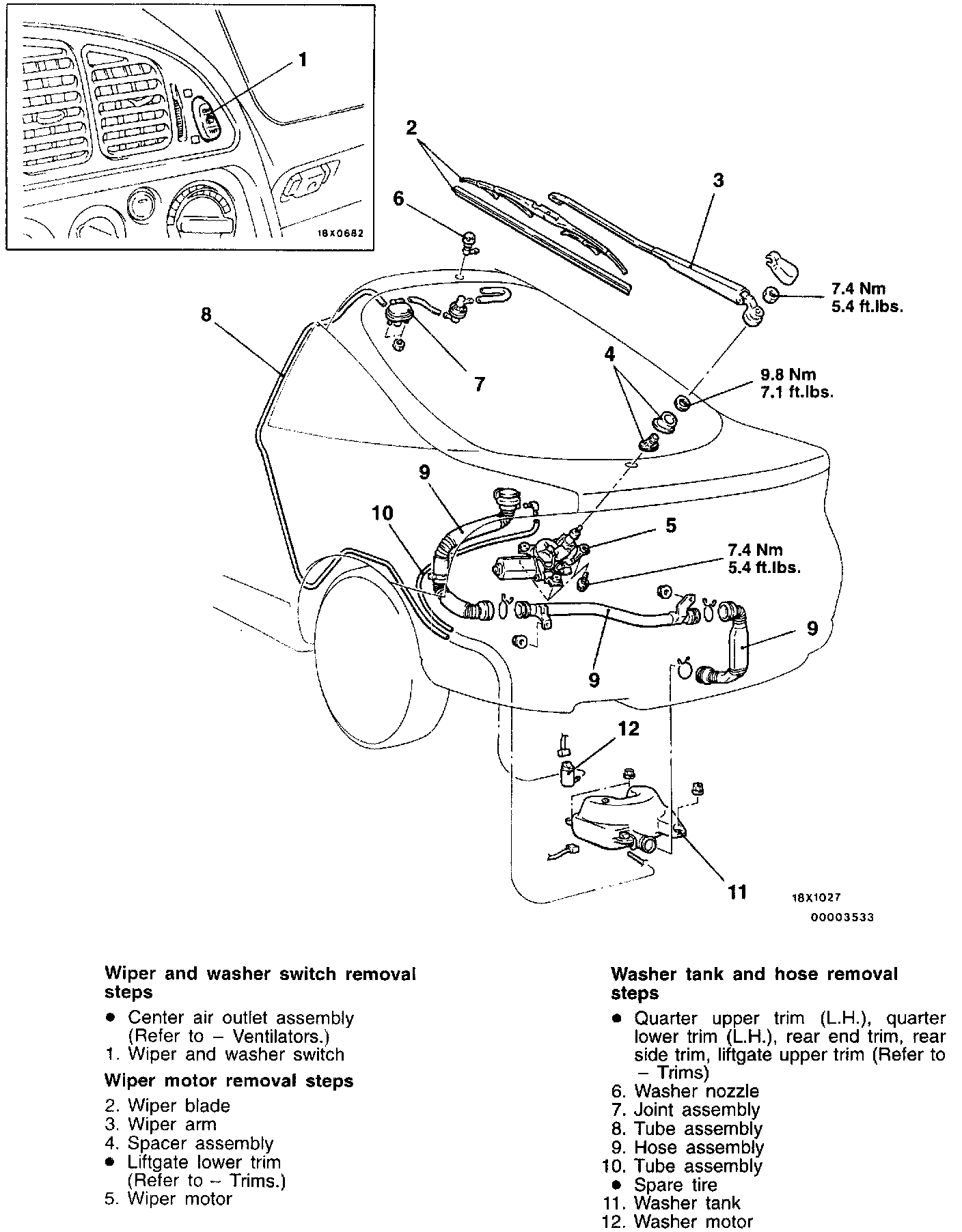

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.

Wiper Arm And Blade Installation:

Step 2/3: Wiper Arm/Wiper Blade Installation

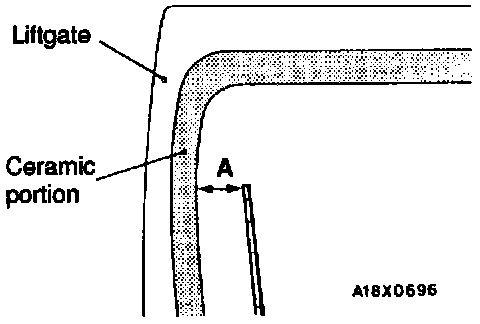

Adjust the wipers so that the clearance between the wiper blade edge and the ceramic portion is at the standard value.

Standard Value (A): 117 ± 5 mm (4.61 ± 0.20 in.)
