Misc. Relays

Relay Overview:

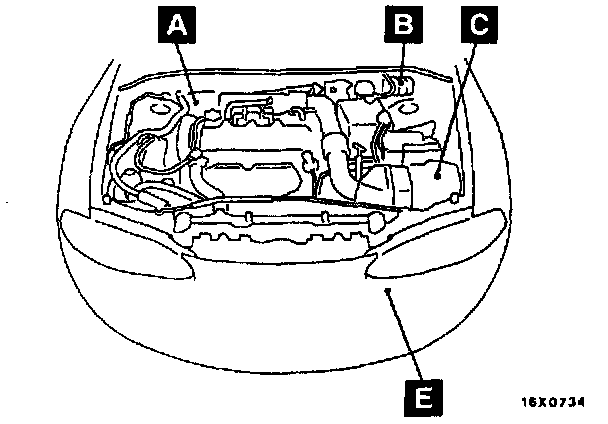

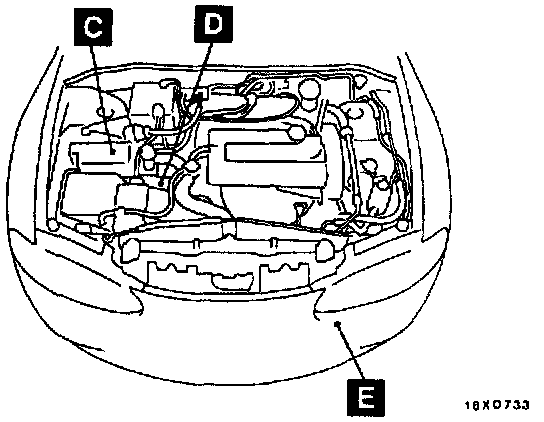

Relay Locations Views A - G:

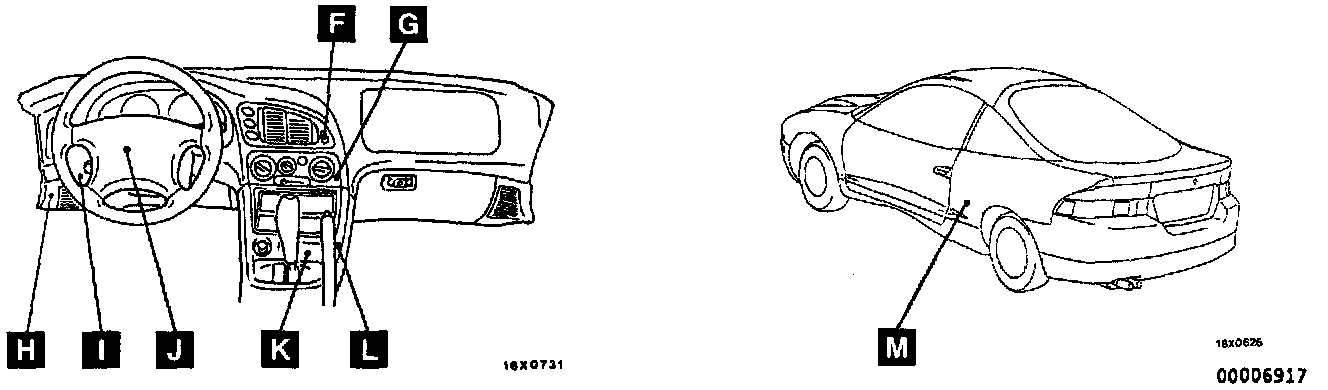

Relay Locations Views H - M:

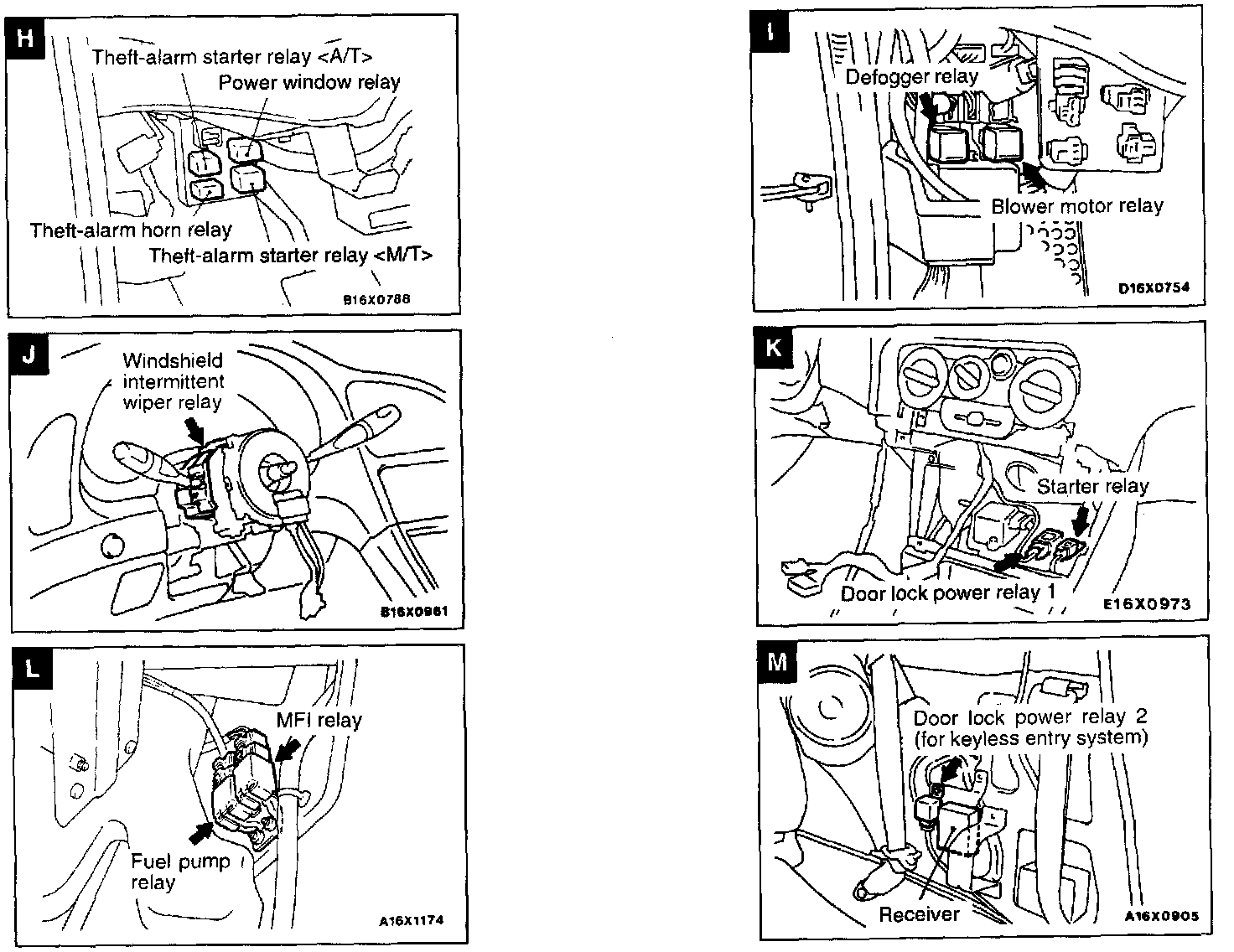

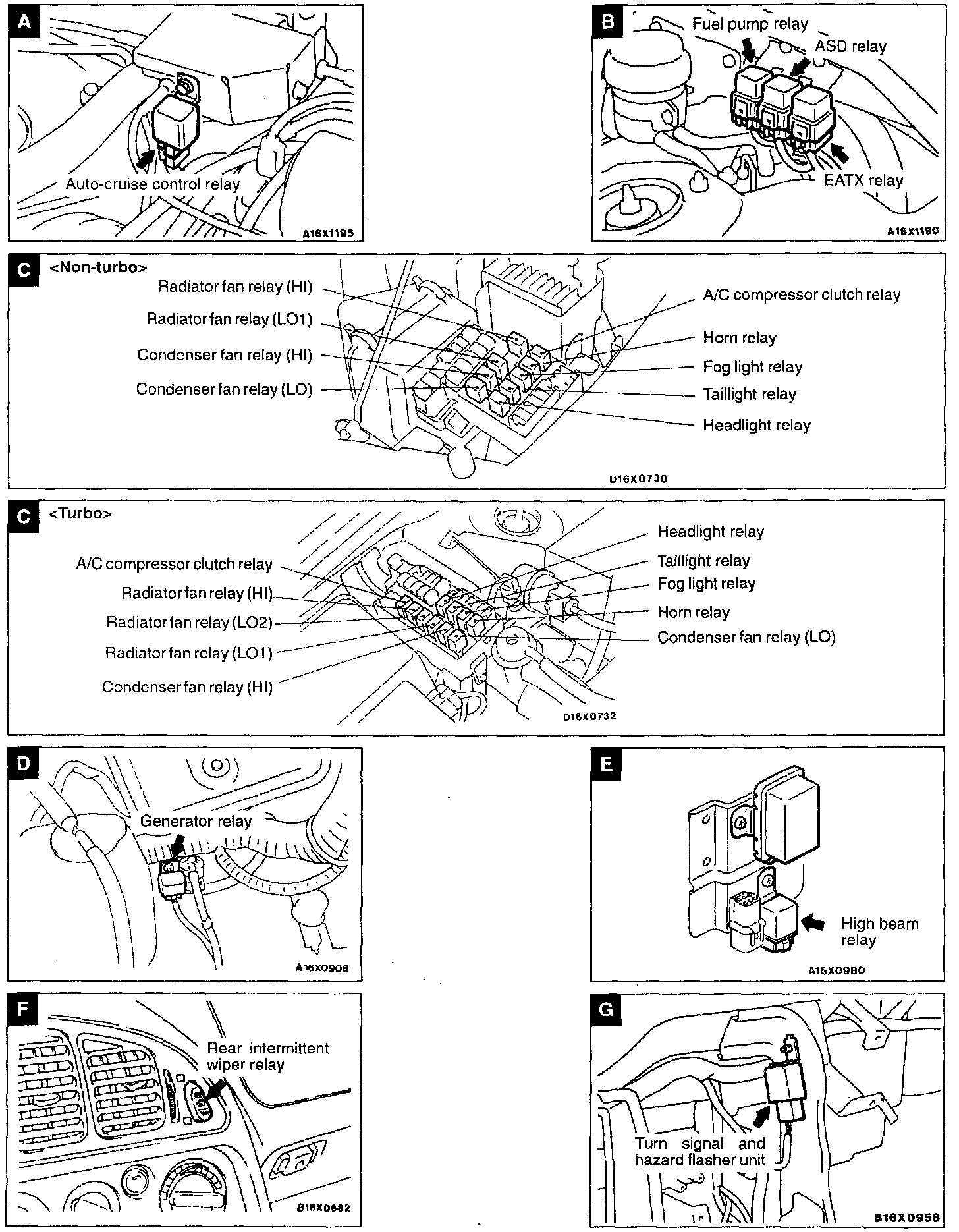

NAME SYMBOL
A/C Compressor Clutch Relay C
ASD Relay B
Auto-Cruise Control Relay A
Blower Motor Relay I
Condenser Fan Relay (HI),(LO) C
Defogger Relay I
Door Lock Power Relay 1 K
Door Lock Power Relay 2 M
(for Keyless Entry System)
Fog Light Relay C
Headlight Relay C
High Beam Relay E
Horn Relay C
MFI Relay L
Power Window Relay H
Radiator Fan Relay (HI),(LO1),(LO2) C
Rear Intermittent Wiper Relay F
Starter Relay K
Taillight Relay C
Theft-alarm Horn Relay H
Thetf-alarm Starter Relay H
Turn Signal And Hazard Flasher Unit G
Windshield Intermittent Wiper Relay J
