Sensor Locations
Sensor Location Overview:
Sensor Location Overview:

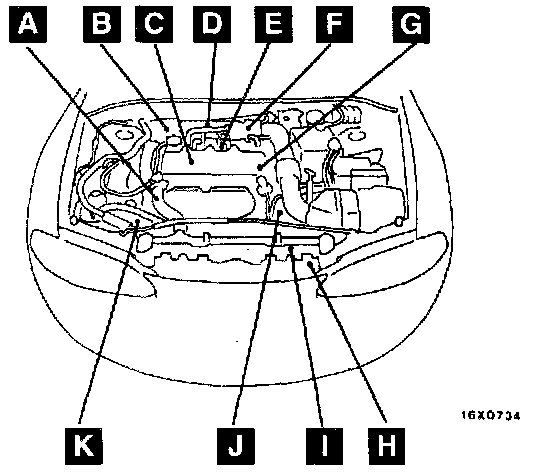

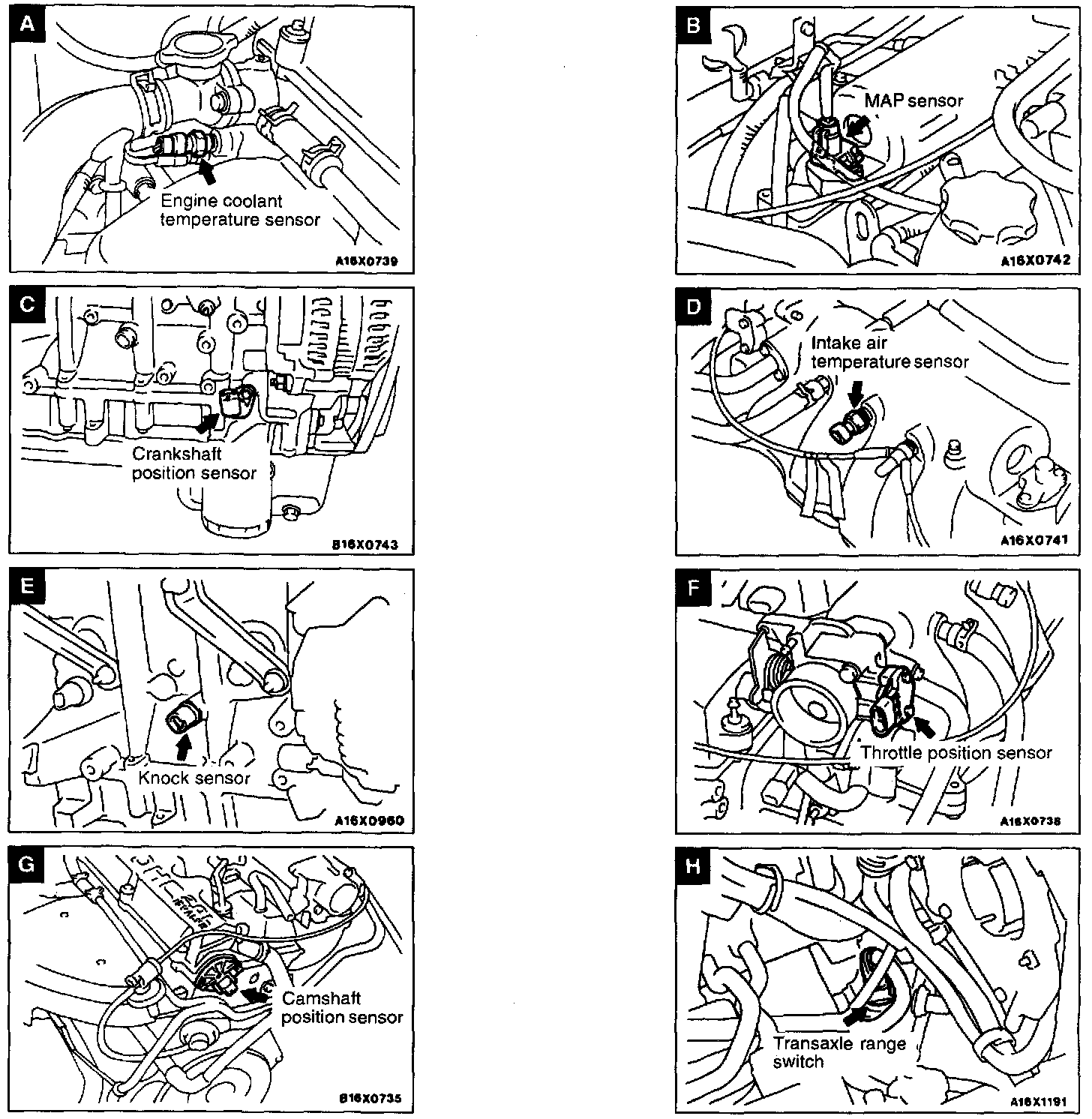

Sensor Locations Views A - H:

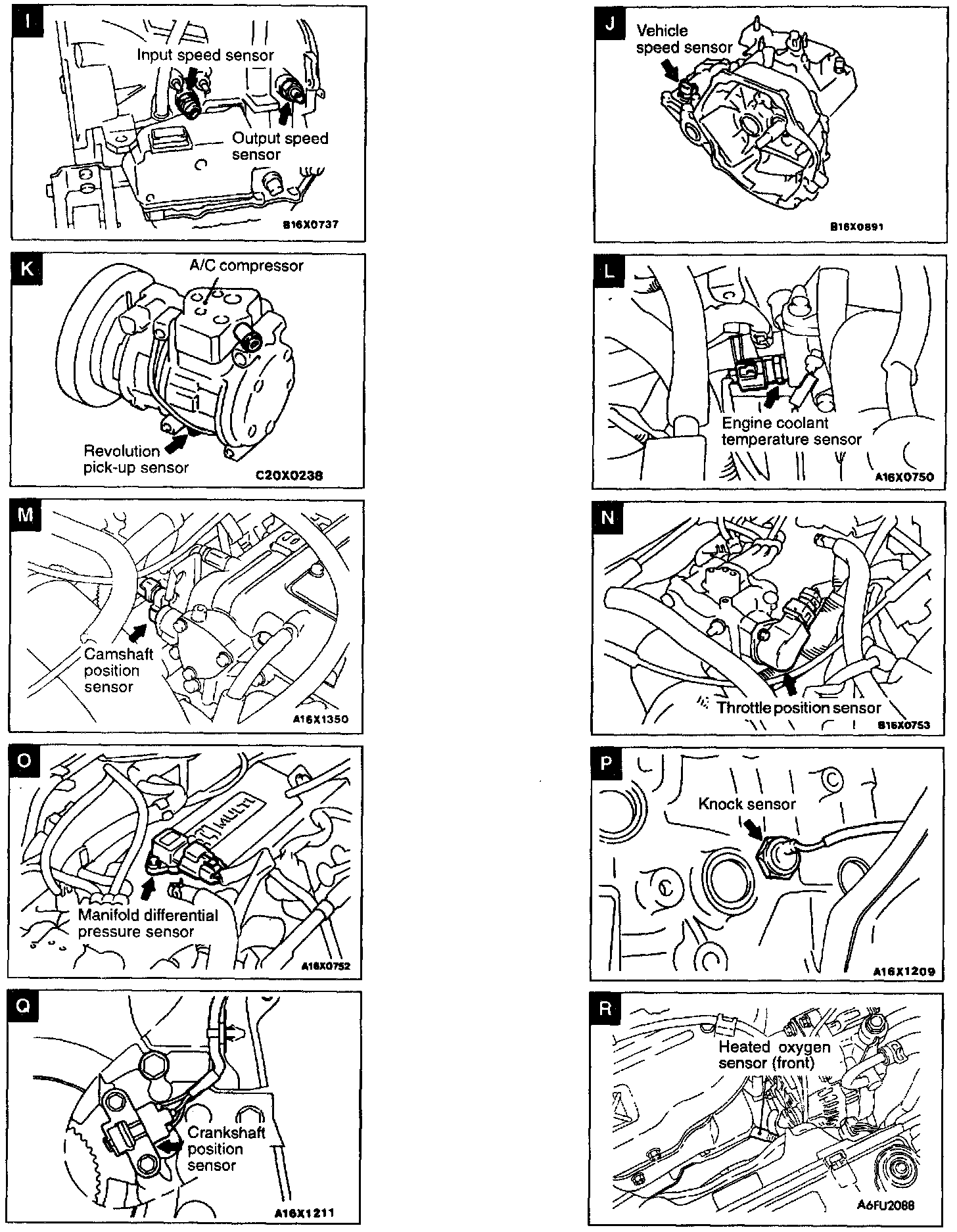

Sensor Locations Views I - R:

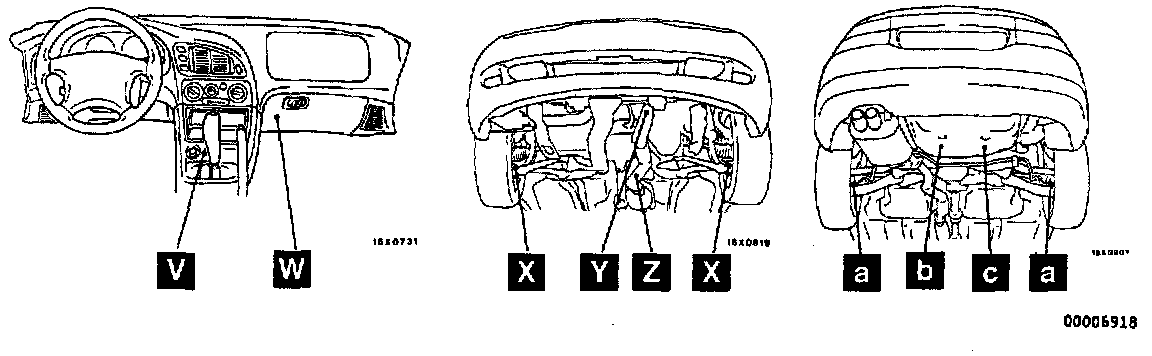

Sensor Locations Views S - Z And a - b:
NAME SYMBOL
ABS Wheel-speed Sensor(front) X
ABS Wheel-speed Sensor (rear) a
Camshaft Position Sensor G
Crankshaft Position Sensor C
Engine Coolant Temperature Sensor A
Fin Thermo Sensor W
G sensor
Heated Oxygen Sensor(rear) Z
Heated Oxygen Sensor (front) Y
Input Speed Sensor I
Intake Air Temperature Sensor D
Knock Sensor E
MAP Sensor B
Output Speed Sensor I
Revolution Pick-Up Sensor K
Throttle Position Sensor F
Transaxle Range Switch
(With Built-In Transaxle Temperature Sensor) H
Vehicle Speed Sensor J
