Solenoid Locations

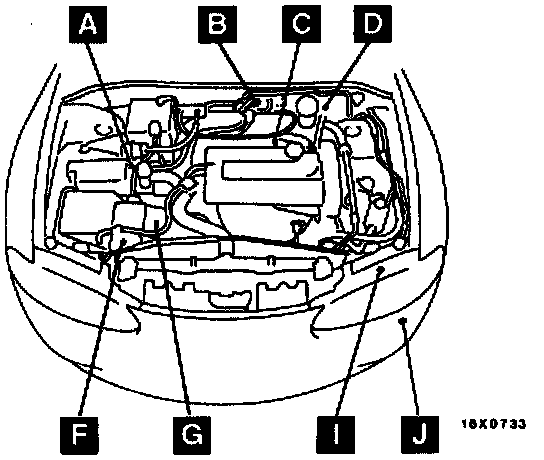

Solenoid And Solenoid Valve Location Overviews:

Solenoid And Solenoid Valve Location Overviews:

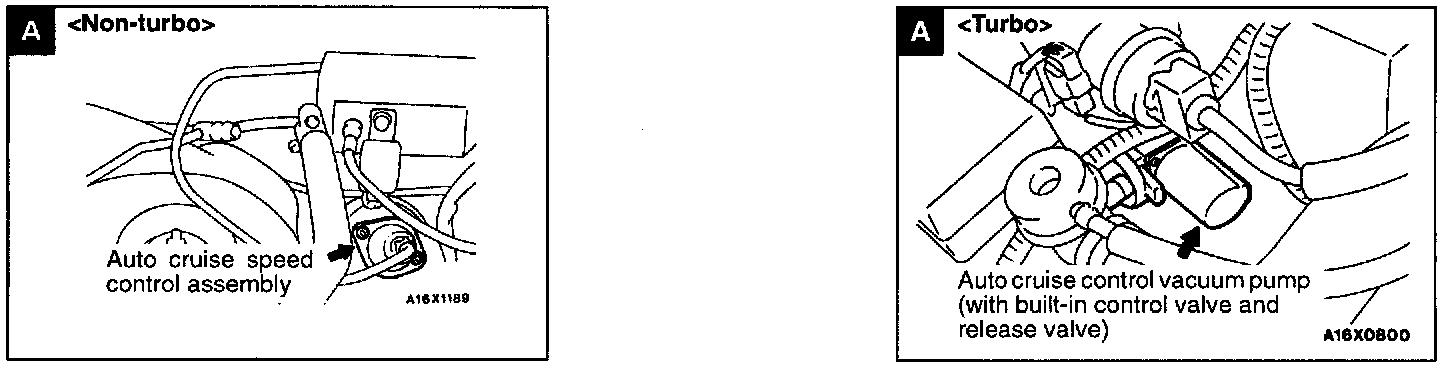

Solenoid And Solenoid Valve Locations Views A:

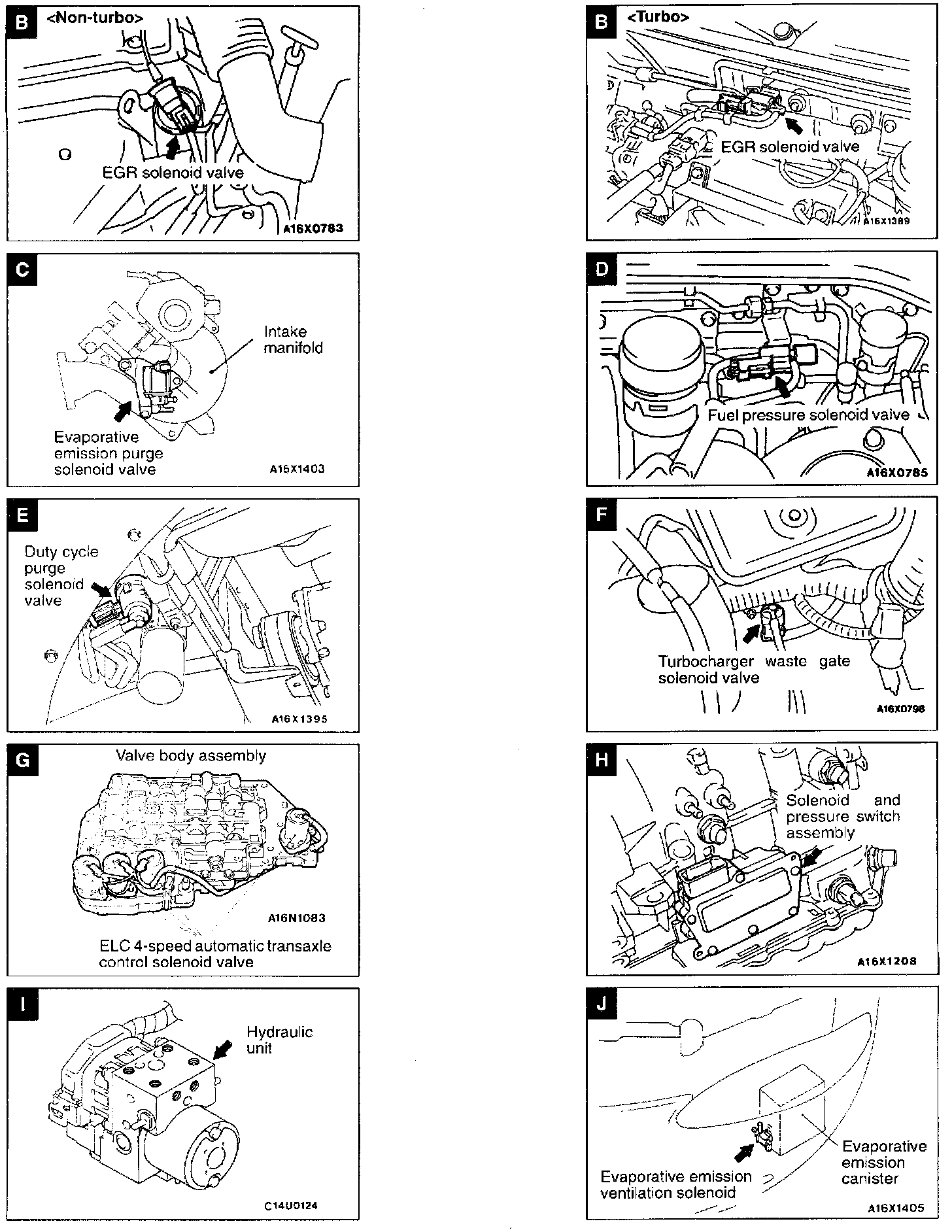

Solenoid And Solenoid Valve Locations Views B - J:

NAME SYMBOL
Auto Cruise Speed Control Assembly A
Duty Cycle Purge Solenoid Valve E
EGR solenoid valve B
Hydraulic unit
(with built-in solenoid valve) I
Solenoid And Pressure Switch Assembly H
