Eagle
>>
1998
>>
Talon FWD L4-1997cc 2.0L DOHC VIN Y SMFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
High Speed Radiator Fan Relay
High Speed Radiator Fan Relay

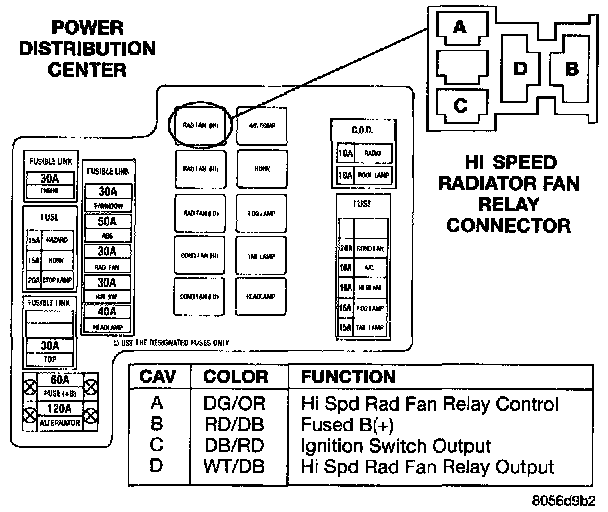

Power Distribution Center Hi Speed Radiator Fan Relay Connector:
