Vehicle Connector Locations
>>
A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

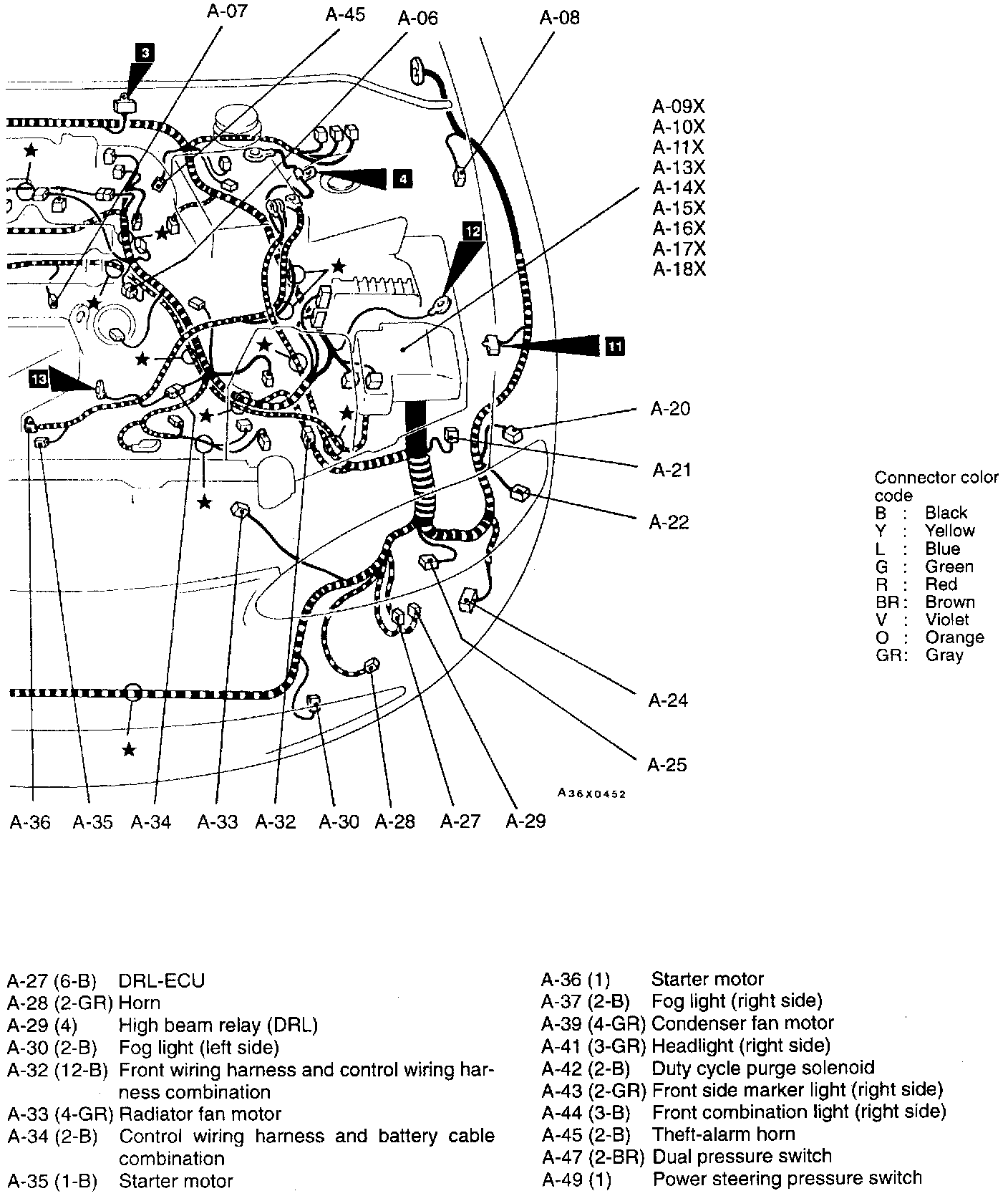

A Connectors 01 Thru 49:
A Connectors 01 Thru 49:

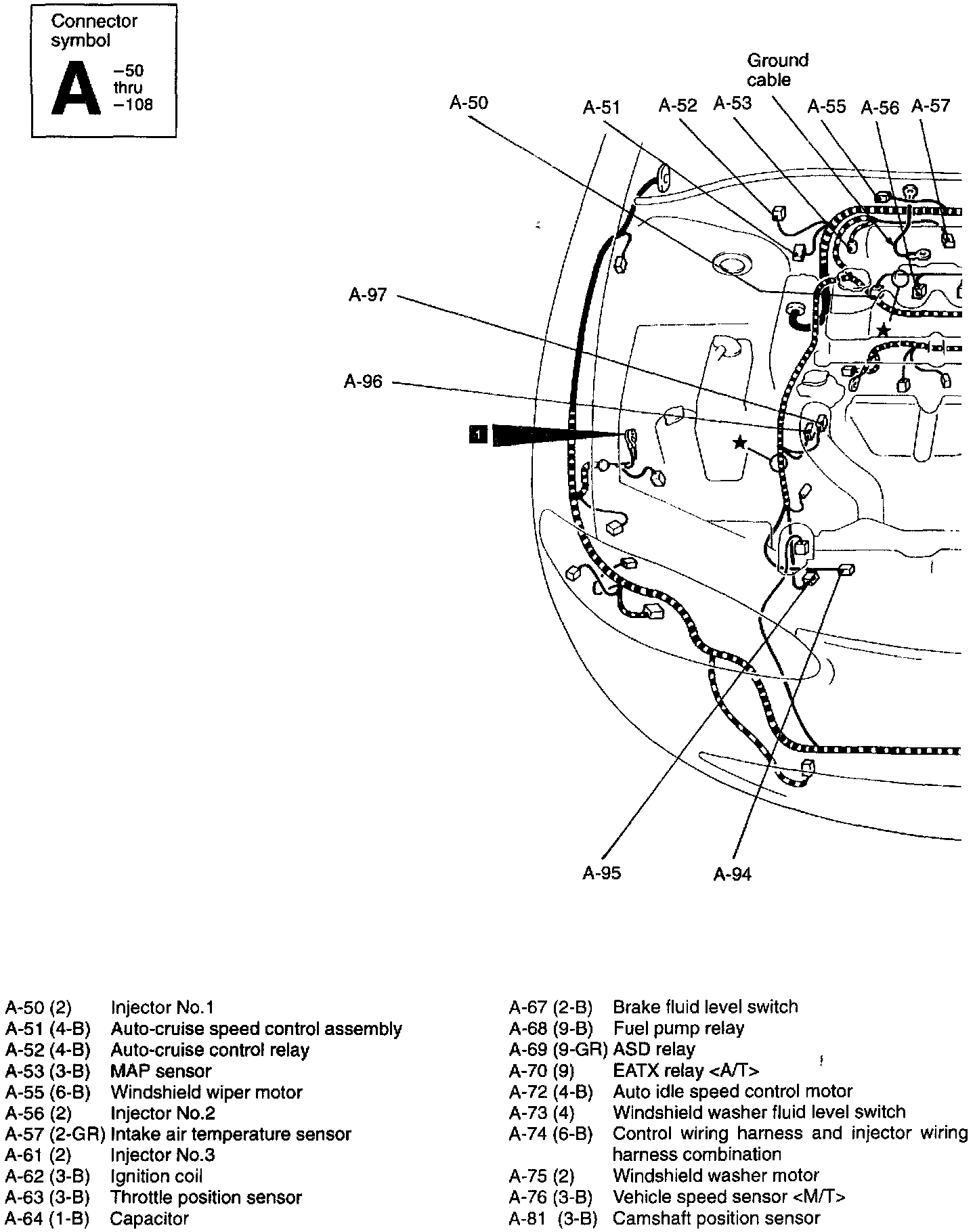

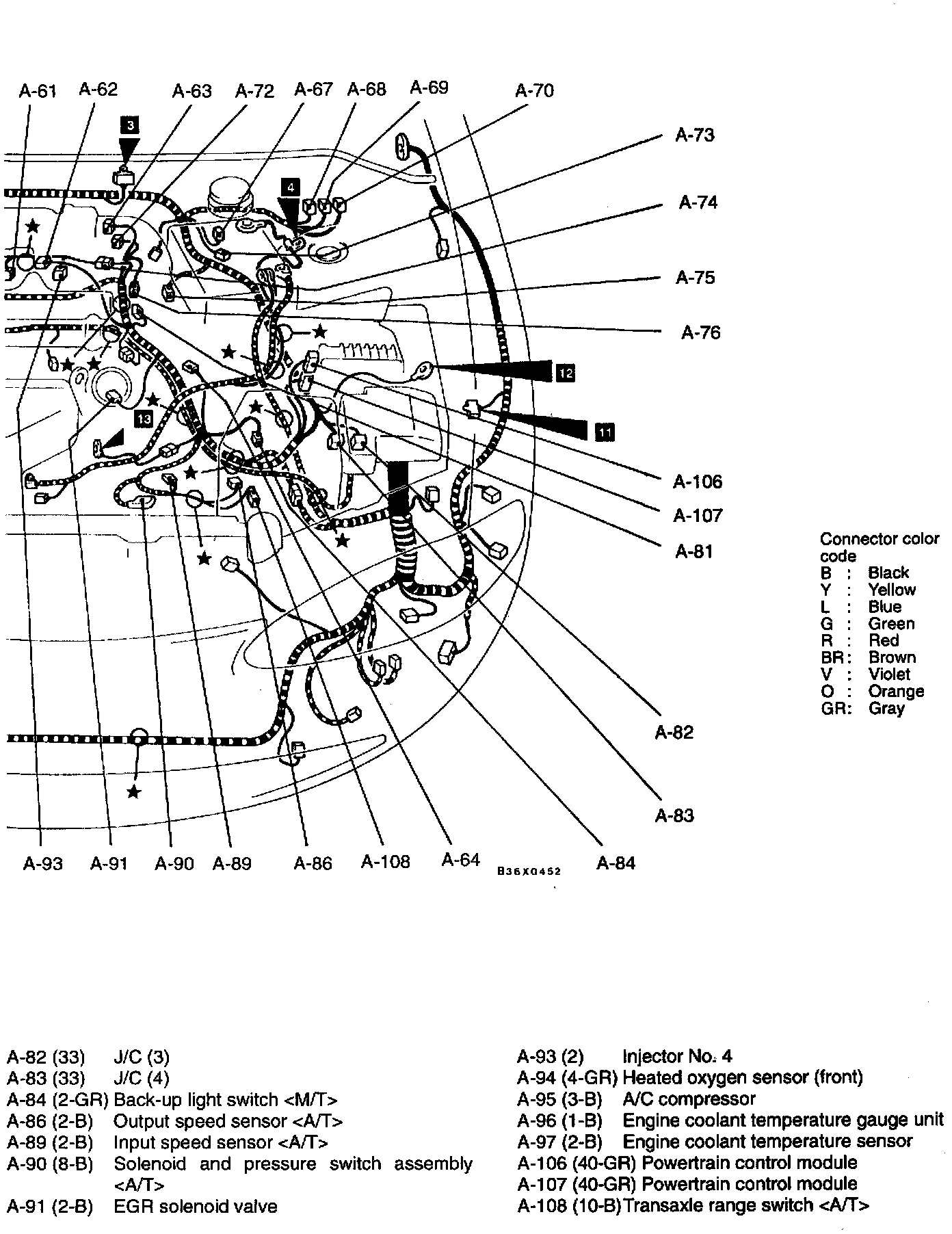

A Connectors 50 Thru 108:
A Connectors 50 Thru 108:
