Vehicles With Keyless Entry System

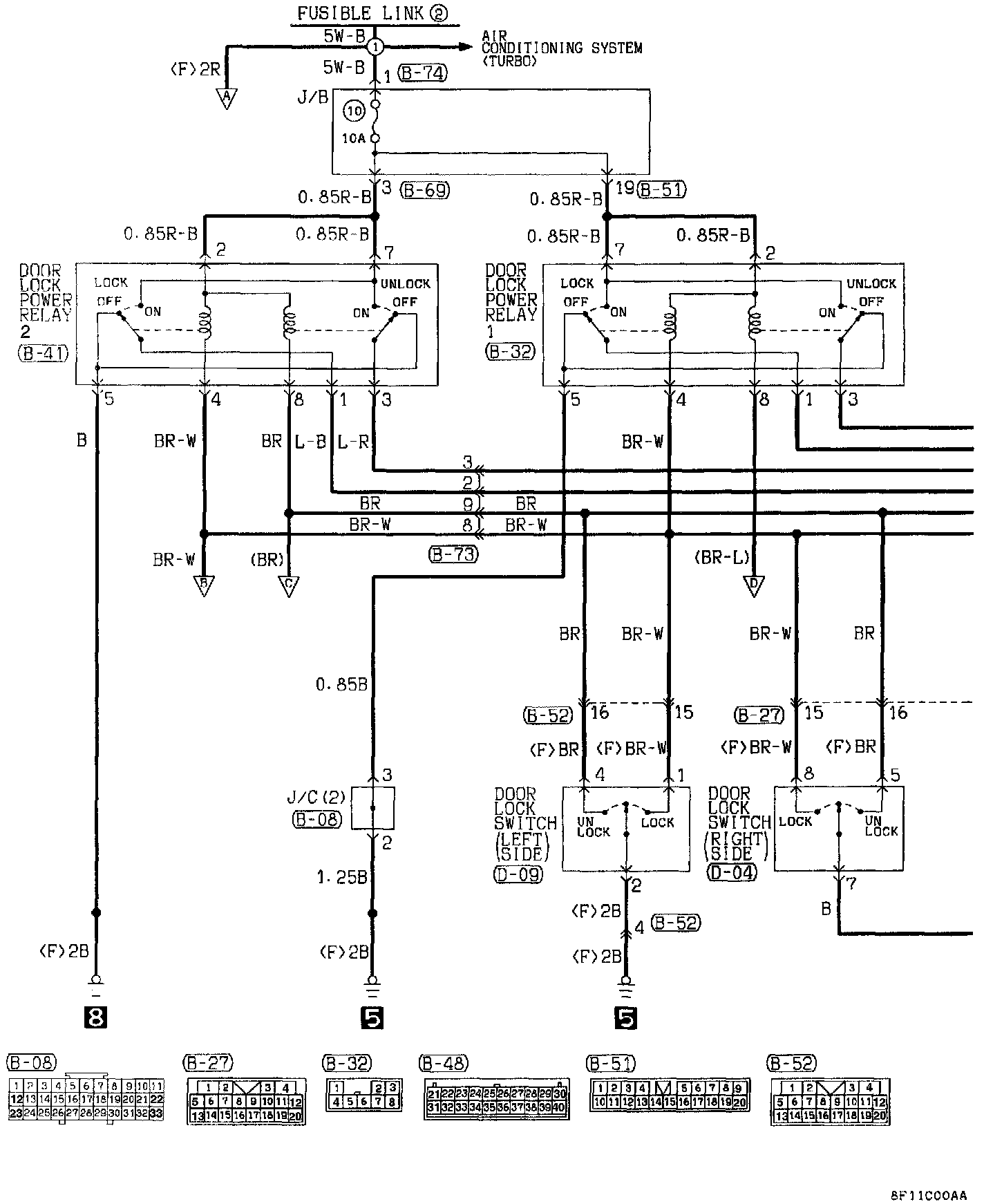

Central Door Locking System <Vehicles With Keyless Entry System> (Part 1 Of 6>:

Door Lock Power Relay 1
Door Lock Power Relay 2
Door Lock Switch (Left And Right Side)
J/B
J/C (2)

Central Door Locking System <Vehicles With Keyless Entry System> (Part 2 Of 6>:

Door Lock Actuator (Left and Right Side)
Door Lock Key Cylinder Switch (Right Side)
Diode B-01
ETACS-ECU
- Drive Circuit
- Detection Circuit

Central Door Locking System <Vehicles With Keyless Entry System> (Part 3 Of 6>:

Door Lock Key Cylinder Switch (Left Side)
ETACS-ECU
- Detection Circuit
J/C (2)
Receiver
Transmitter
- Control Circuit

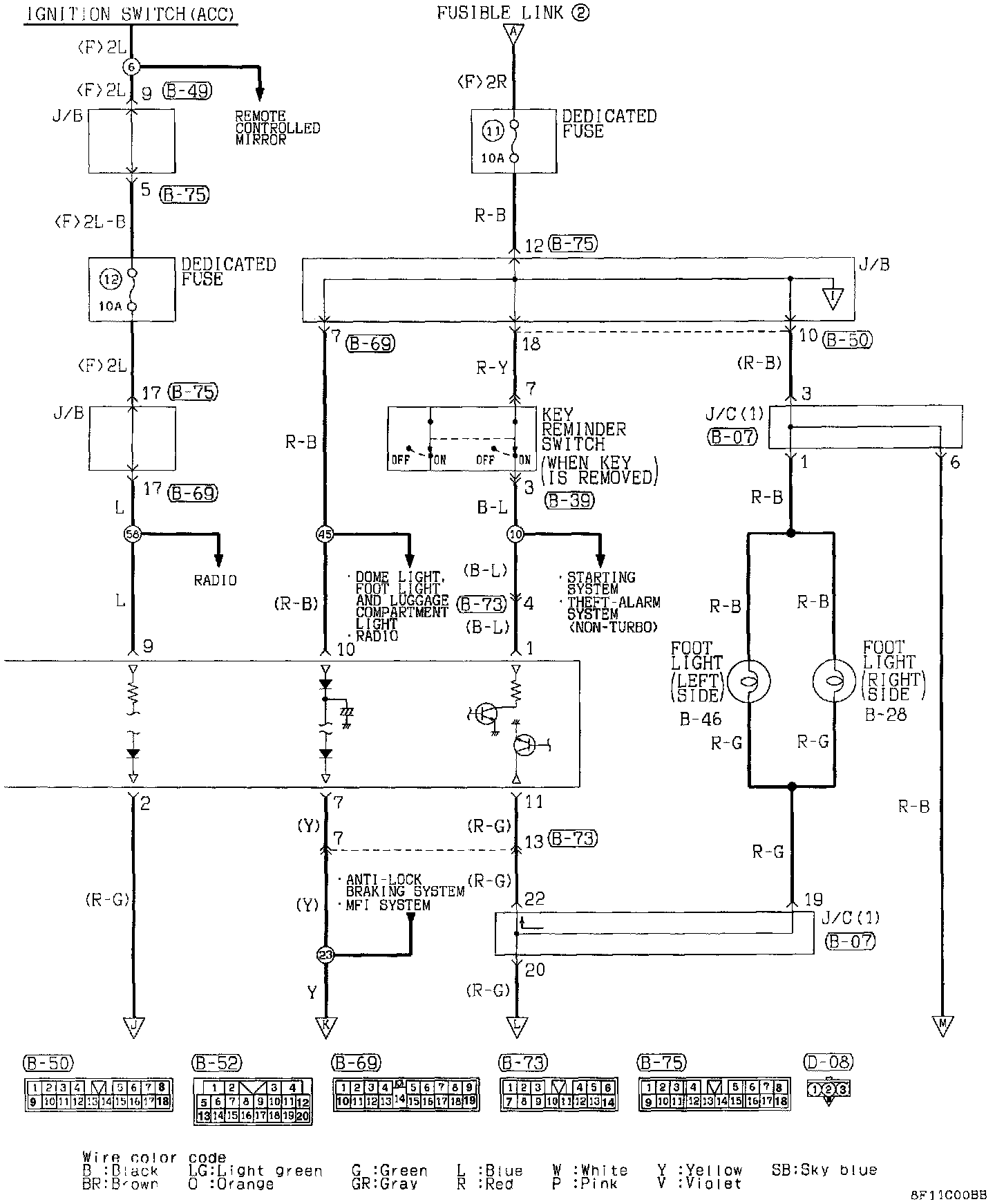

Central Door Locking System <Vehicles With Keyless Entry System> (Part 4 Of 6>:

Dedicated Fuse
Foot Light (Left And Right Side)
J/B
J/C (1)
Key Reminder Switch (When Key Is Removed)
Receiver

Central Door Locking System <Vehicles With Keyless Entry System> (Part 5 Of 6>:

Data Link Connector
J/B
- ETACS-ECU
- Detection Circuit
- Timer Circuit

Central Door Locking System <Vehicles With Keyless Entry System> (Part 6 Of 6>:

Dome Light
Door Switch (Left And Right Side)
J/B
- ETACS-ECU
- Detection Circuit
- Timer Circuit
J/C (2)
