Vehicles Without Keyless Entry System

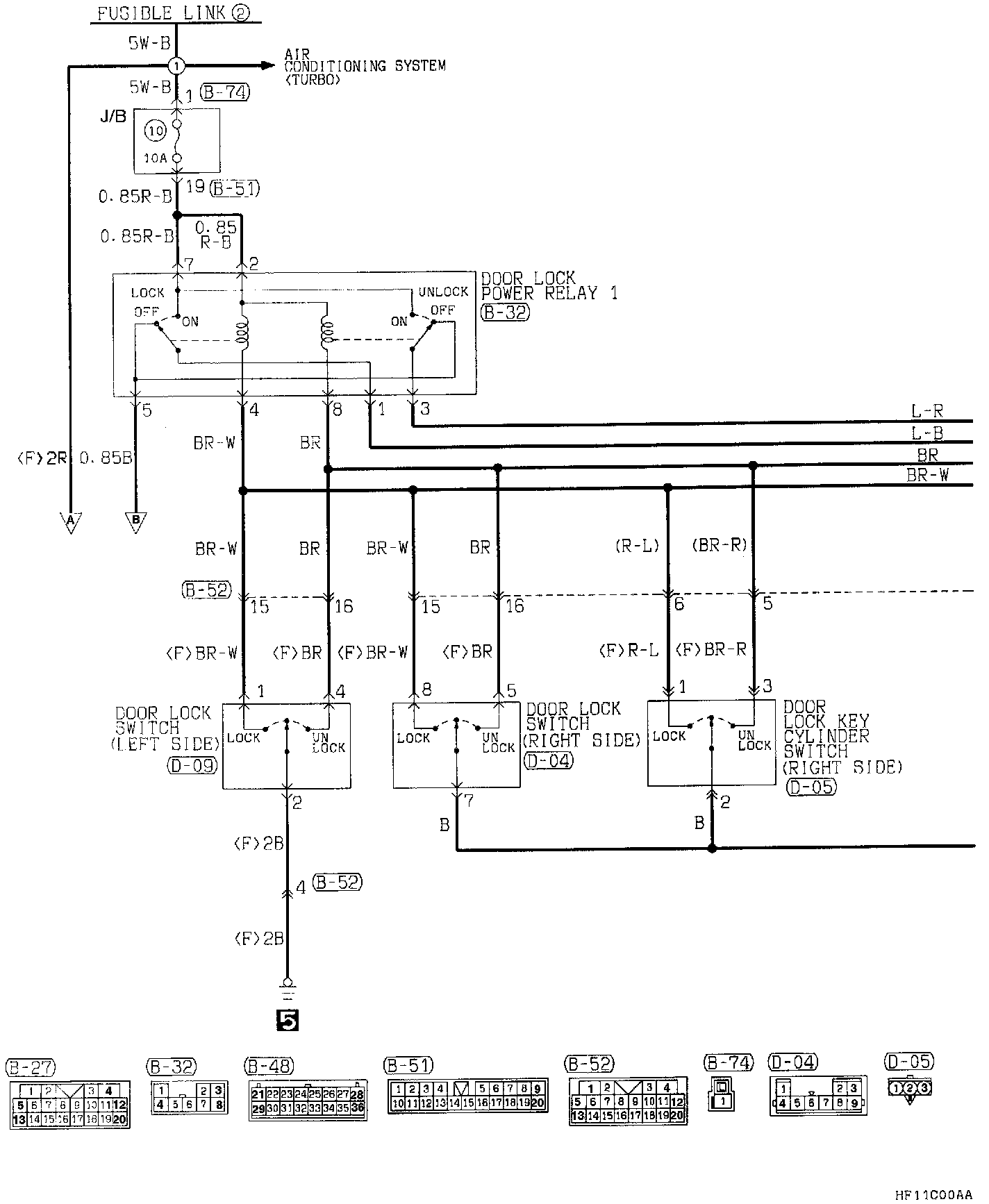

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 1 Of 4>:

Door Lock Key Cylinder Switch (Right Side)
Door Lock Power Relay 1
Door Lock Switch (Left Side)
Door Lock Switch (Right Side)
J/B

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 2 Of 4>:

Door Lock Actuator (Right Side)
Door Lock Actuator (Left Side)
Door Lock Key Cylinder Switch (Left Side)
ETACS-ECU
- Drive Circuit
- Detection Circuit

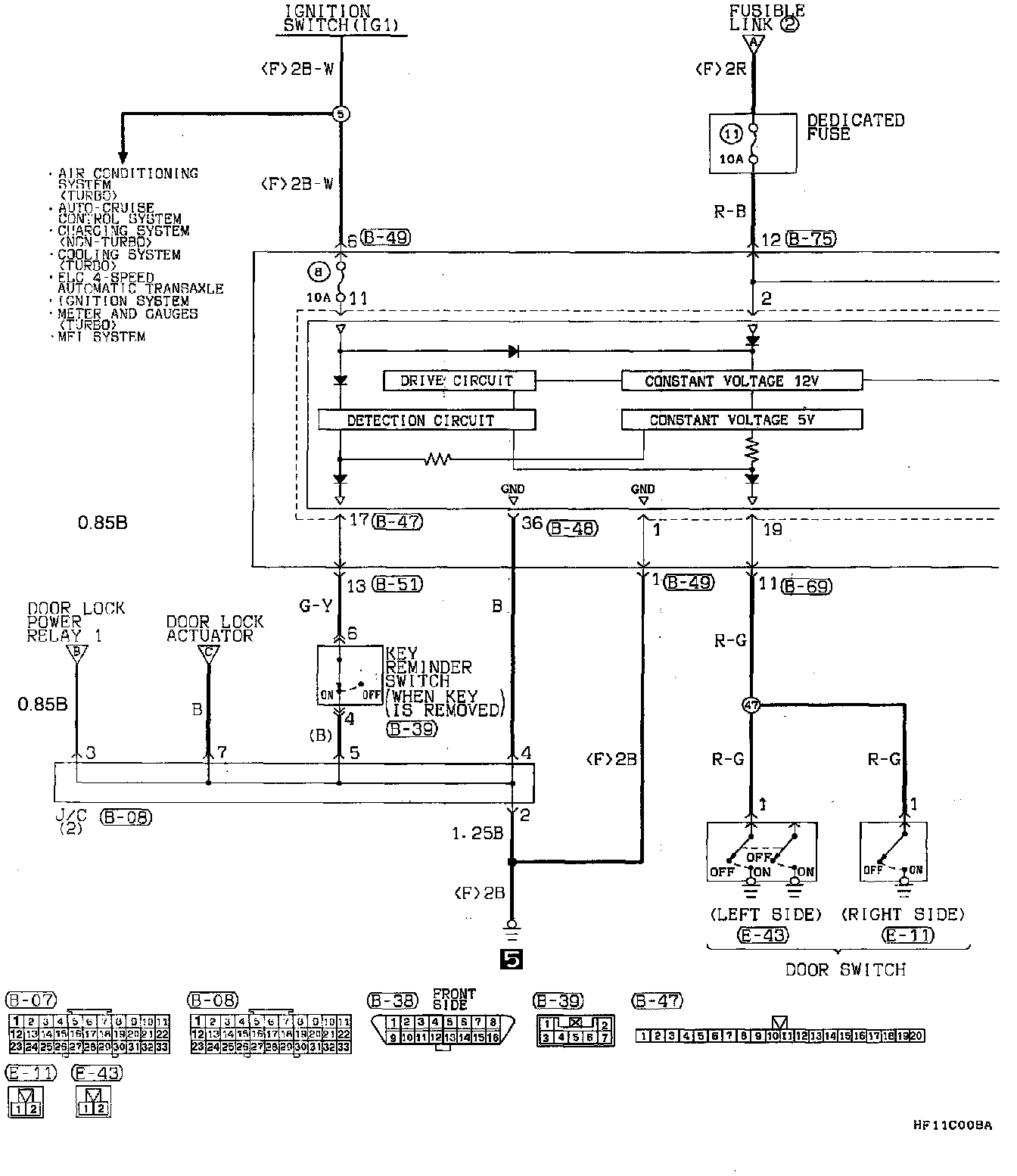

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 3 Of 4>:

Dedicated Fuse
Door Switch (Left and Right Side)
J/B
- ETACS-ECU
- Drive Circuit
- Detection Circuit
J/C (2)
Key Reminder Switch (When Key Is Removed)

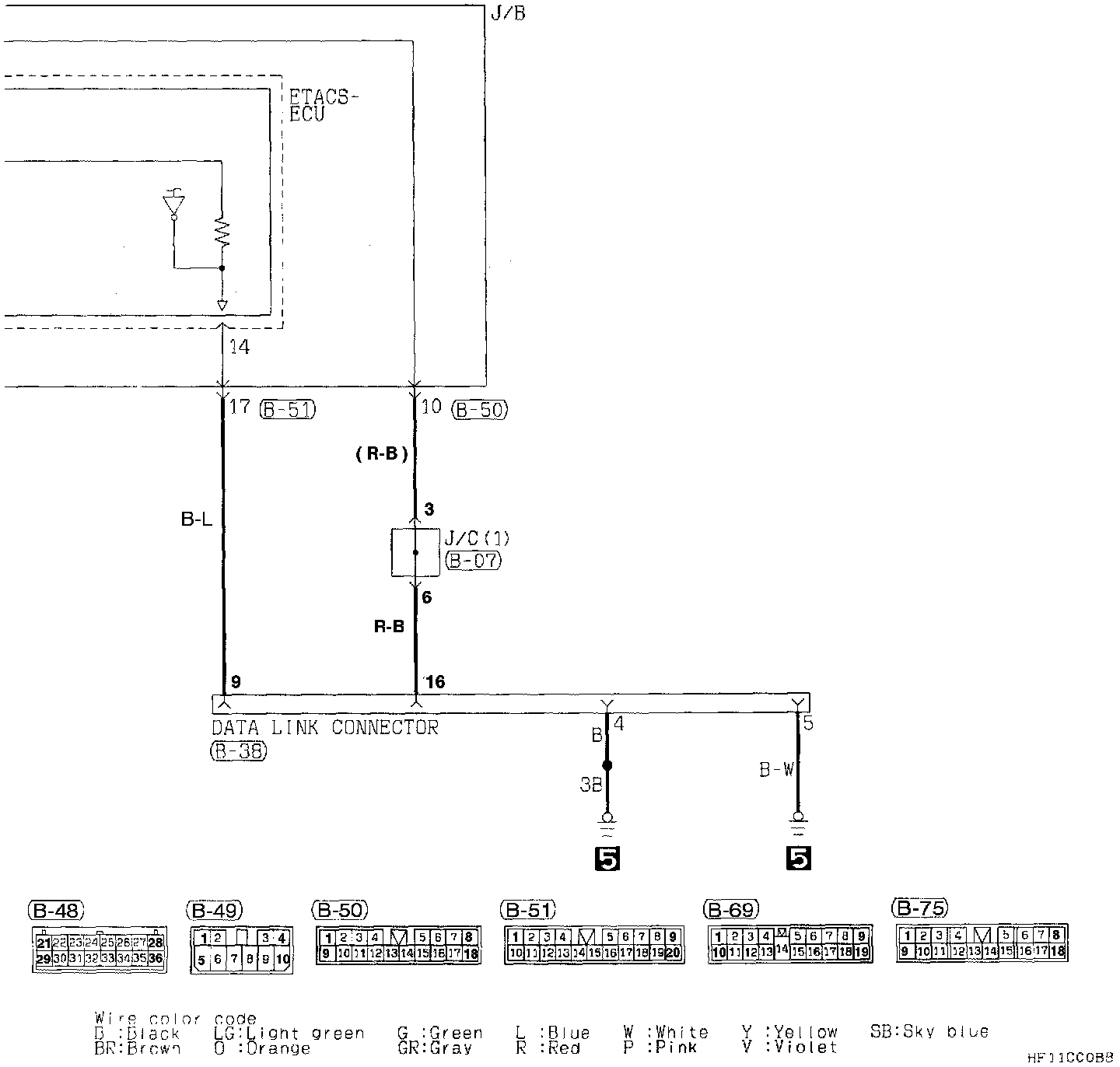

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 4 Of 4>:

Data Link Connector
J/B
- ETACS-ECU
- Drive Circuit
- Detection Circuit
J/C (1)
