Eagle
>>
1998
>>
Talon FWD L4-1997cc 2.0L DOHC VIN Y SMFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Rear Wiper/Washer System
Rear Wiper/Washer System

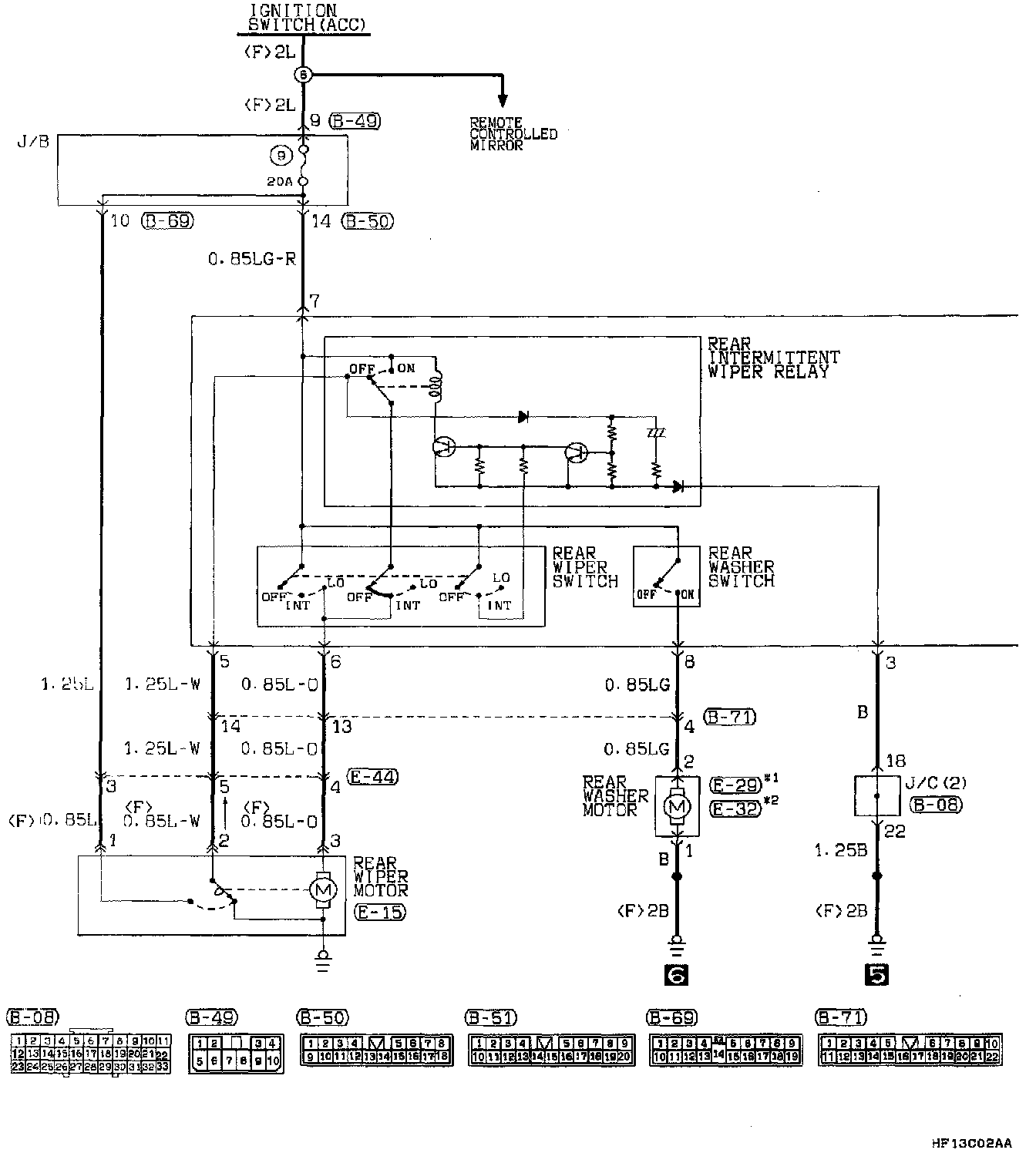

Rear Wiper And Washer (Part 1 Of 2):

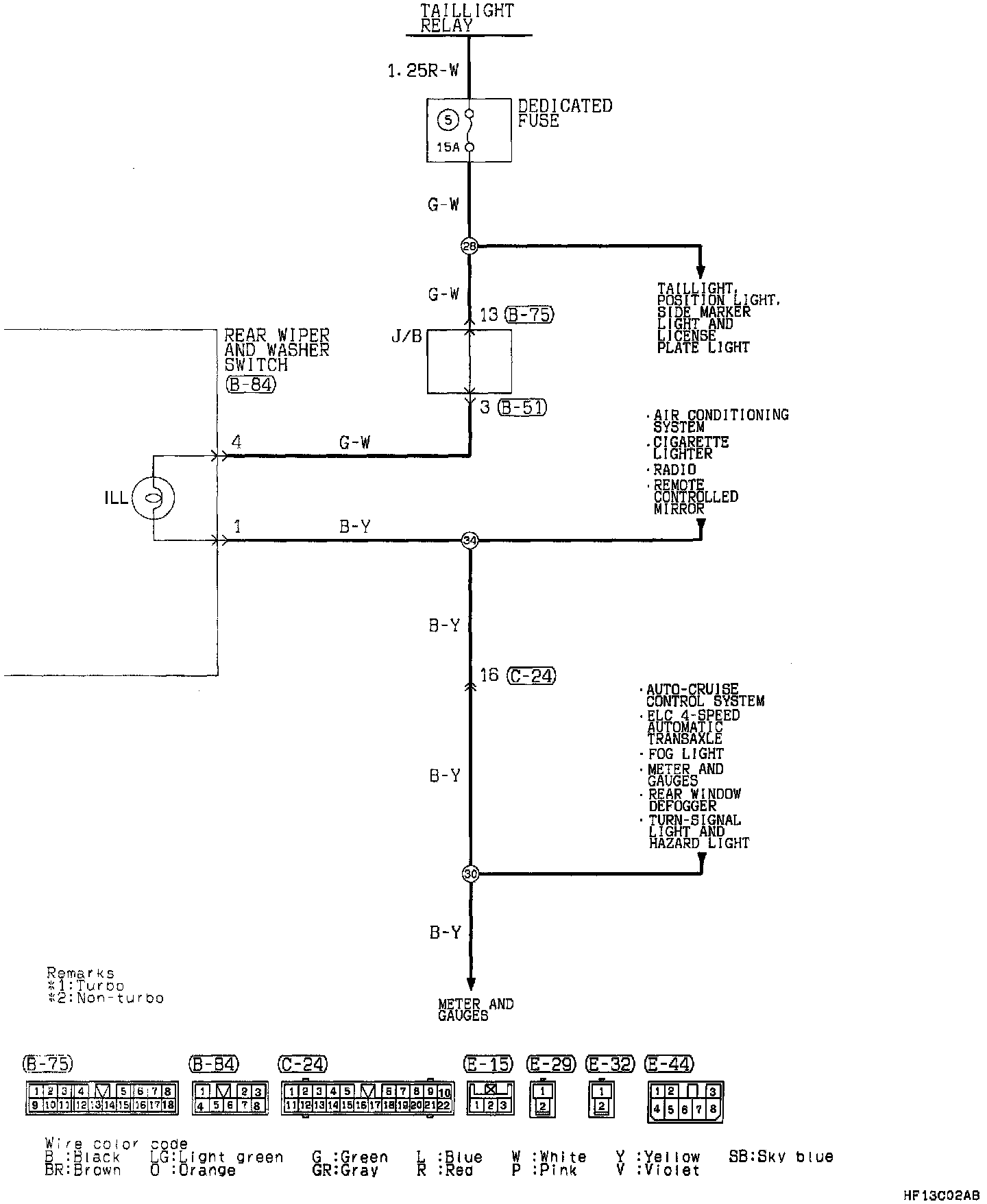

Rear Wiper And Washer (Part 2 Of 2):
