Manual Transmission

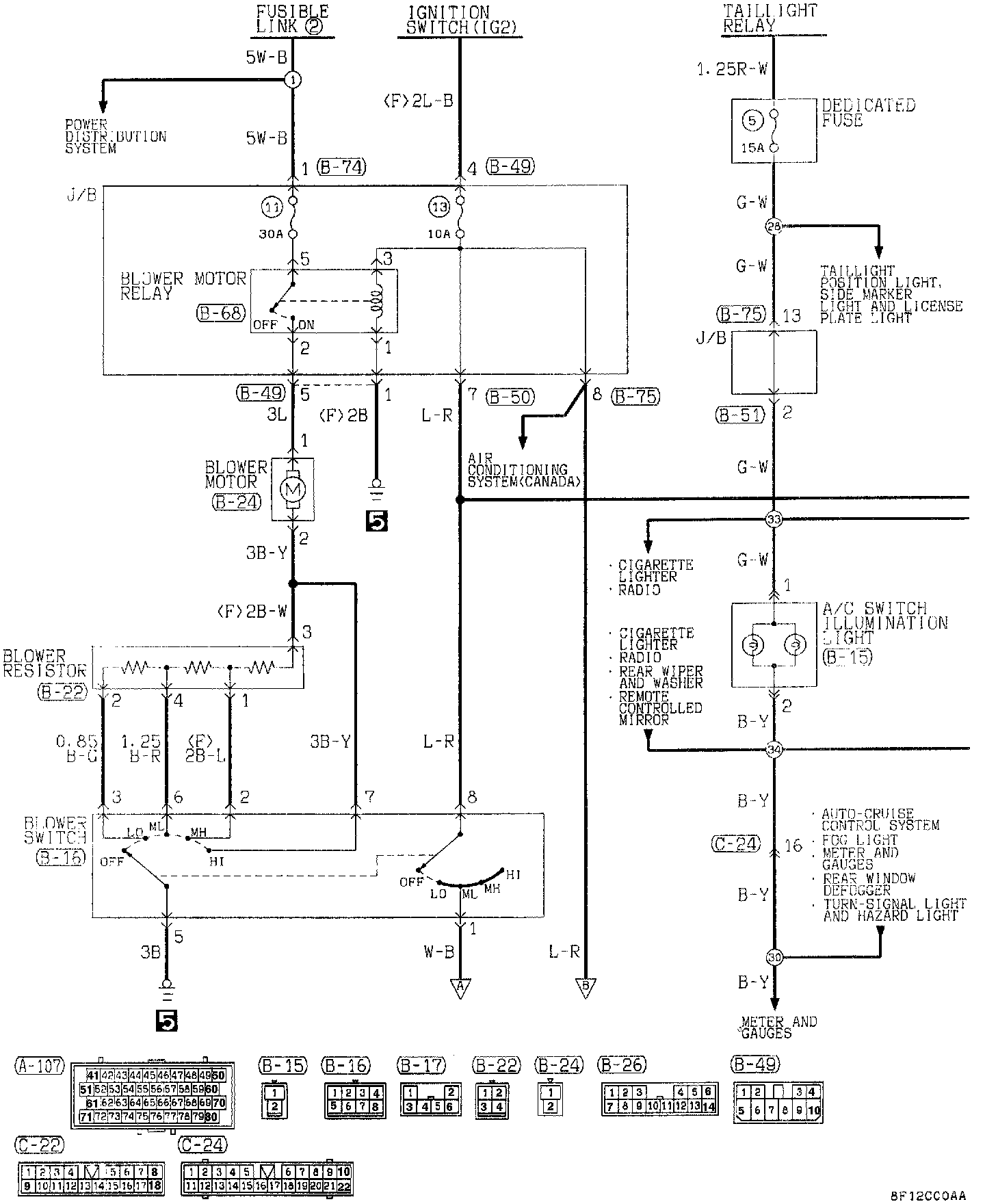

Air Conditioning System (Part 1 Of 5):

A/C Switch Illumnation Light
Blower Motor
Blower Resistor
Blower Switch
Dedicated Fuse
J/B
- Blower motor Relay

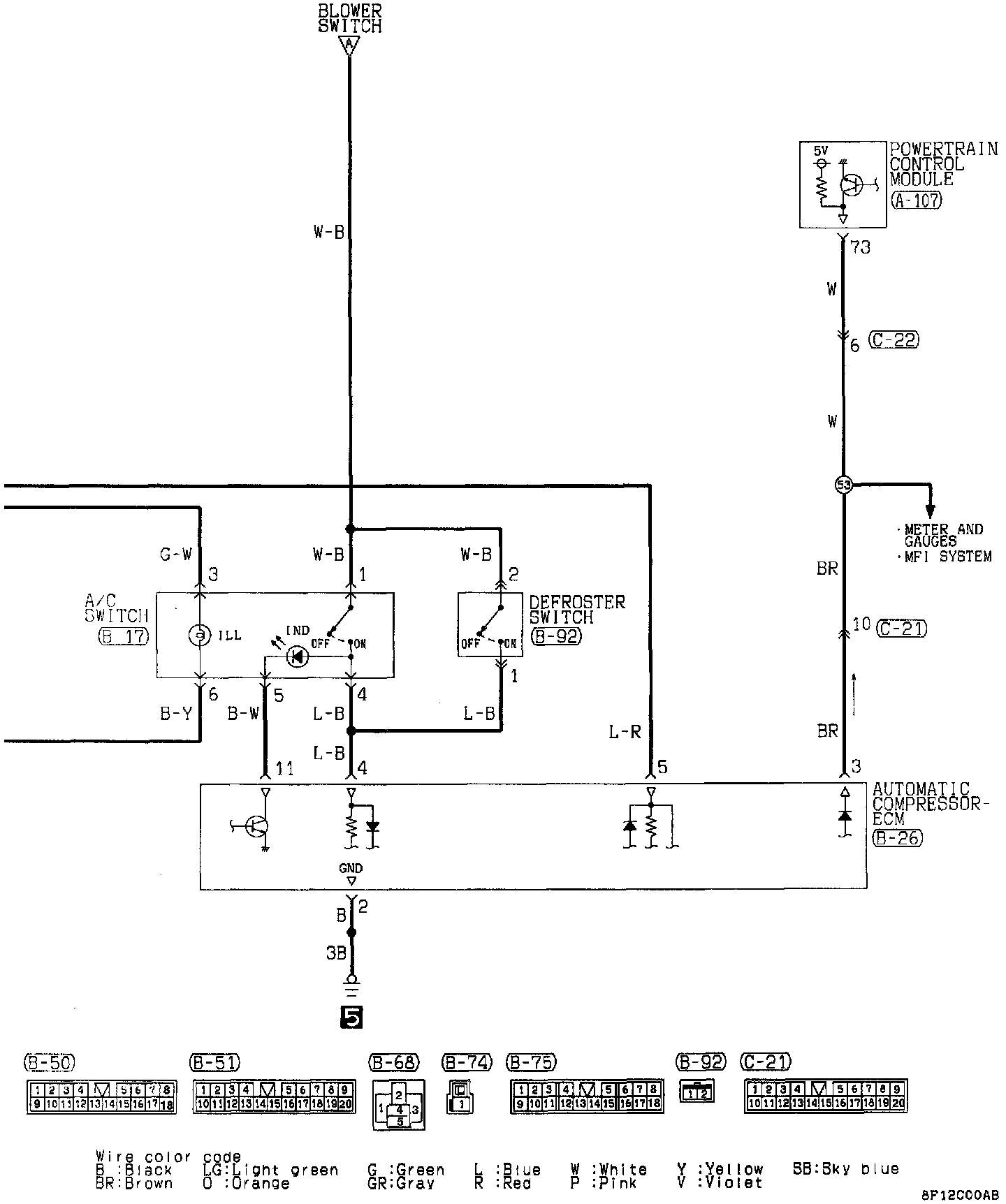

Air Conditioning System (Part 2 Of 5):

A/C Switch
Automatic Compressor-ECM
Defroster Switch
Powertrain Control Module

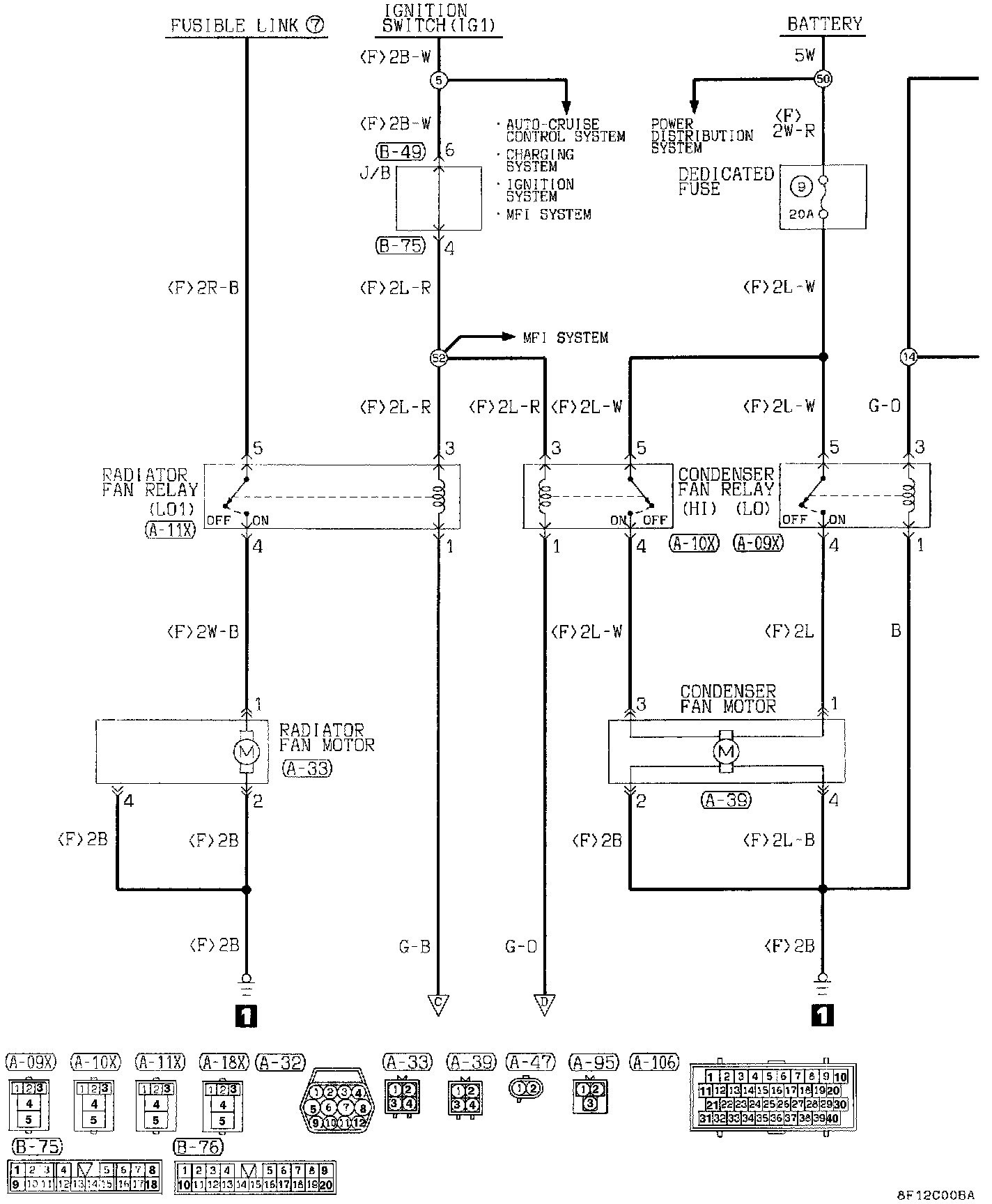

Air Conditioning System (Part 3 Of 5):

Condenser Fan Motor
Condenser Fan Relay
Dedicated Fuse
J/B
Radiator Fan Motor
Radiator Fan Relay

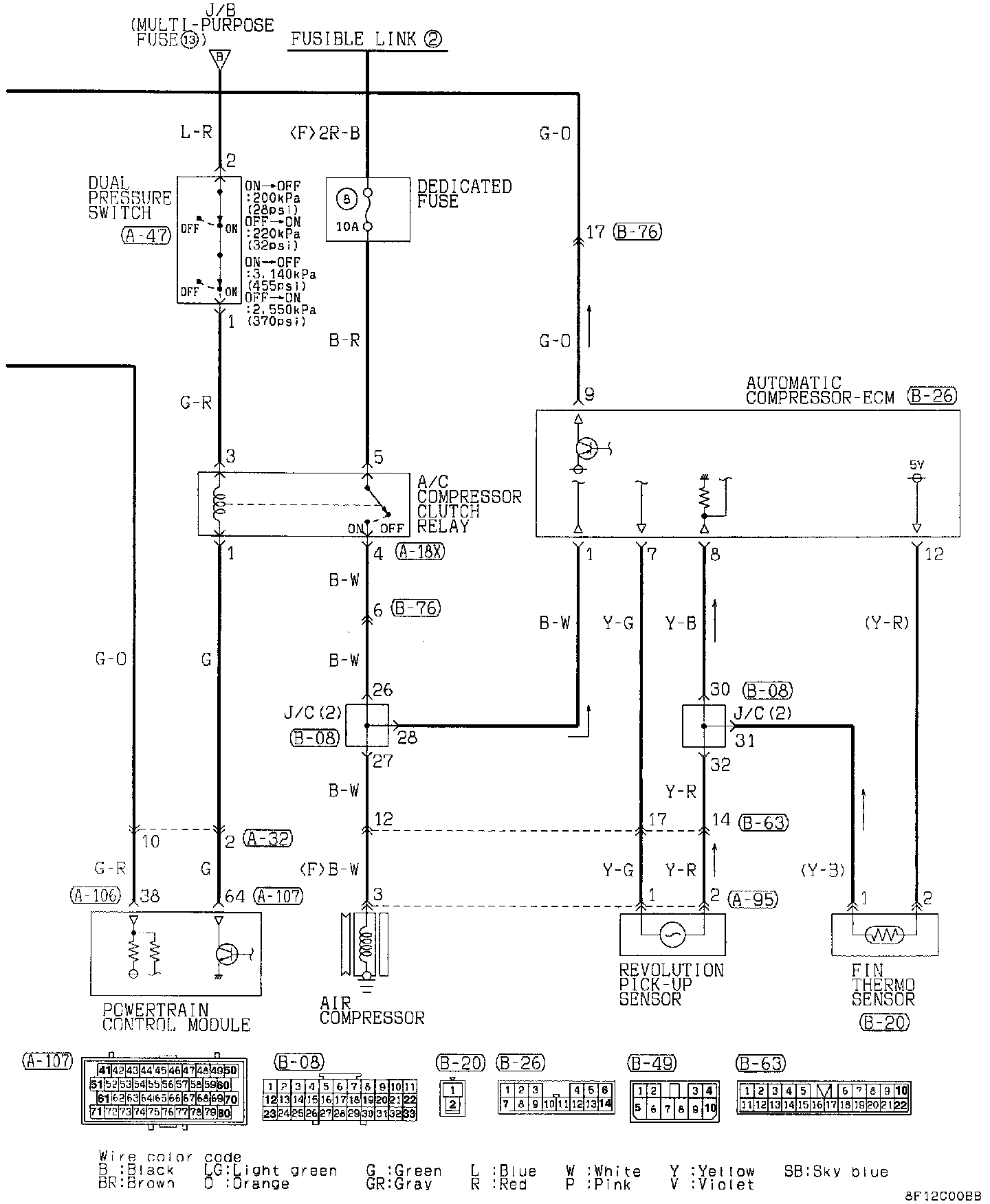

Air Conditioning System (Part 4 Of 5):

A/C Compressor Clutch Relay
Automatic Compressor-ECM
Dual Pressure Switch
Dedicated Fuse
Fin Thermo Sensor
J/C (2)
Powertrain Control Module
Revolution Pick-Up Sensor

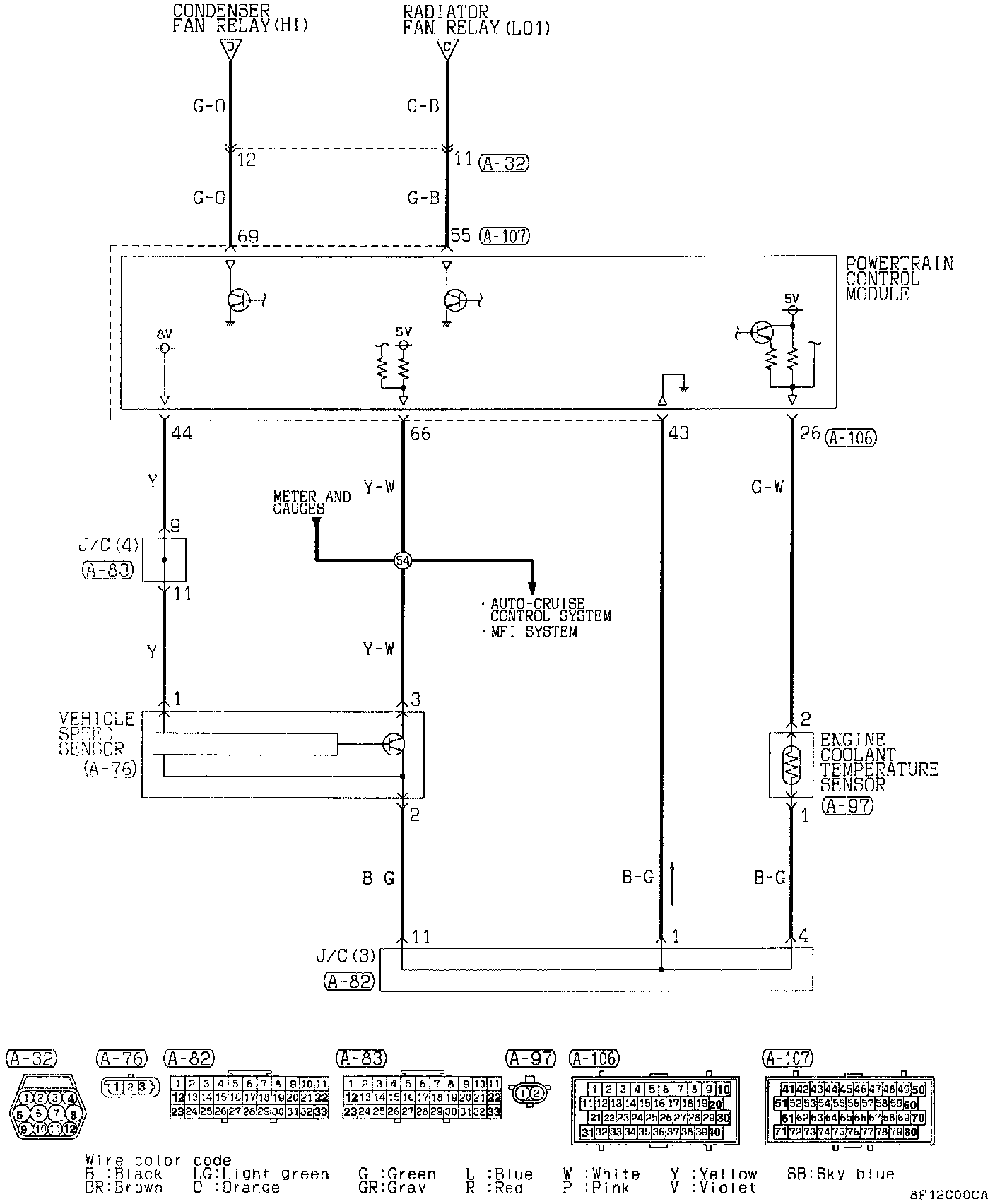

Air Conditioning System (Part 5 Of 5):

Engine Coolant Temperature Sensor
J/C (3)
J/C (4)
Powertrain Control Module
Vehicle Speed Sensor
