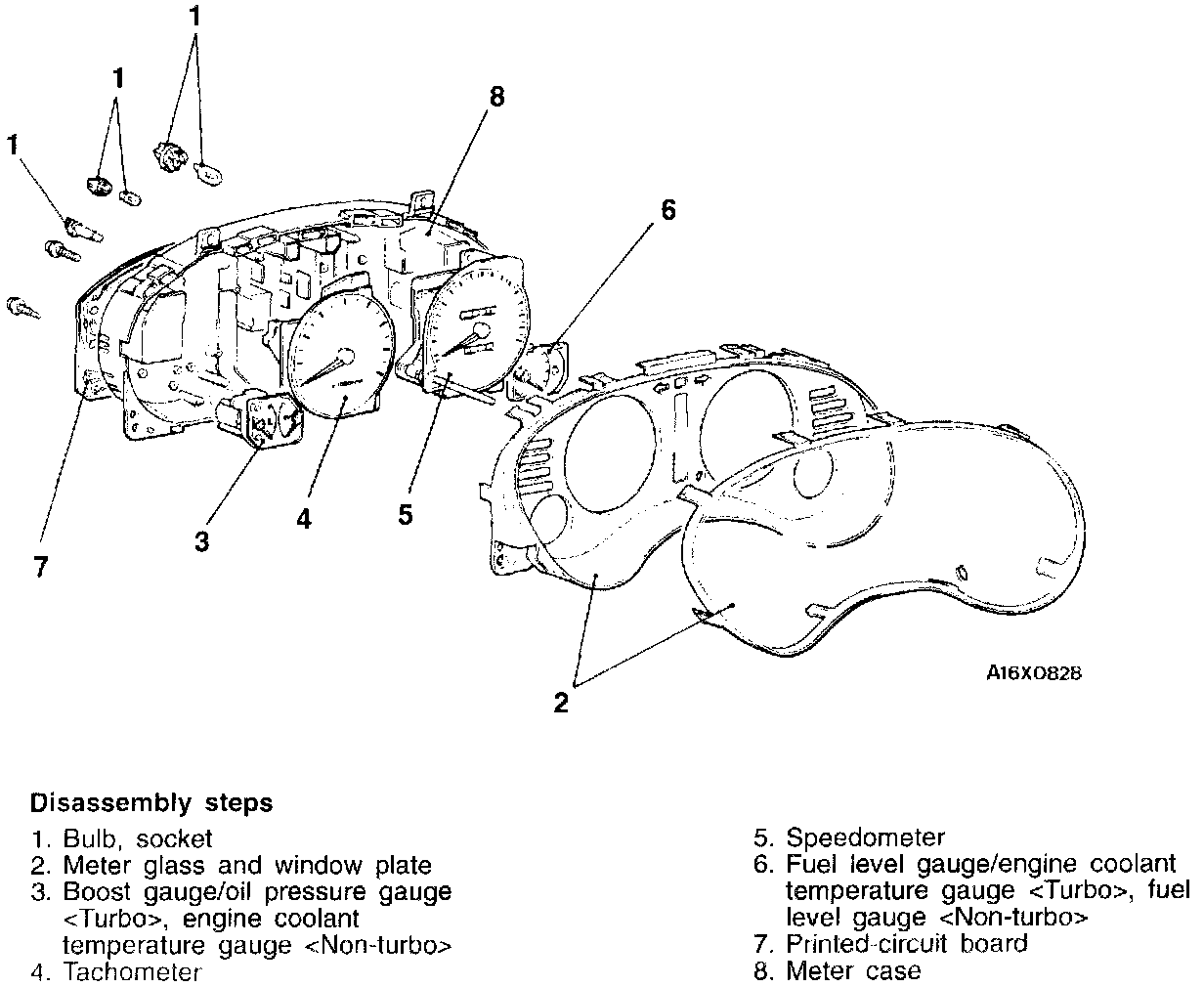

Combination Meters Replacement

1. Bulb, socket
2. Meter glass and window plate
3. Engine Coolant Temperature Gauge
4. Tachometer
5. Speedometer
6. Fuel level gauge
8. Printed-circuit board
9. Meter case

Disassembly
To disassemble follow the steps listed above.

Reassembly
To reassemble reverse the steps listed above.
