Fuel Tank: Service and Repair

PRE-REMOVAL OPERATION
^ Fuel Draining
^ Reduce the Inner Pressure of Fuel Line and Hose.
^ Evaporative Emission Canister Assembly Removal
^ Evaporative Emission Canister/Air Filter/Evaporative Emission Ventilation Solenoid.)

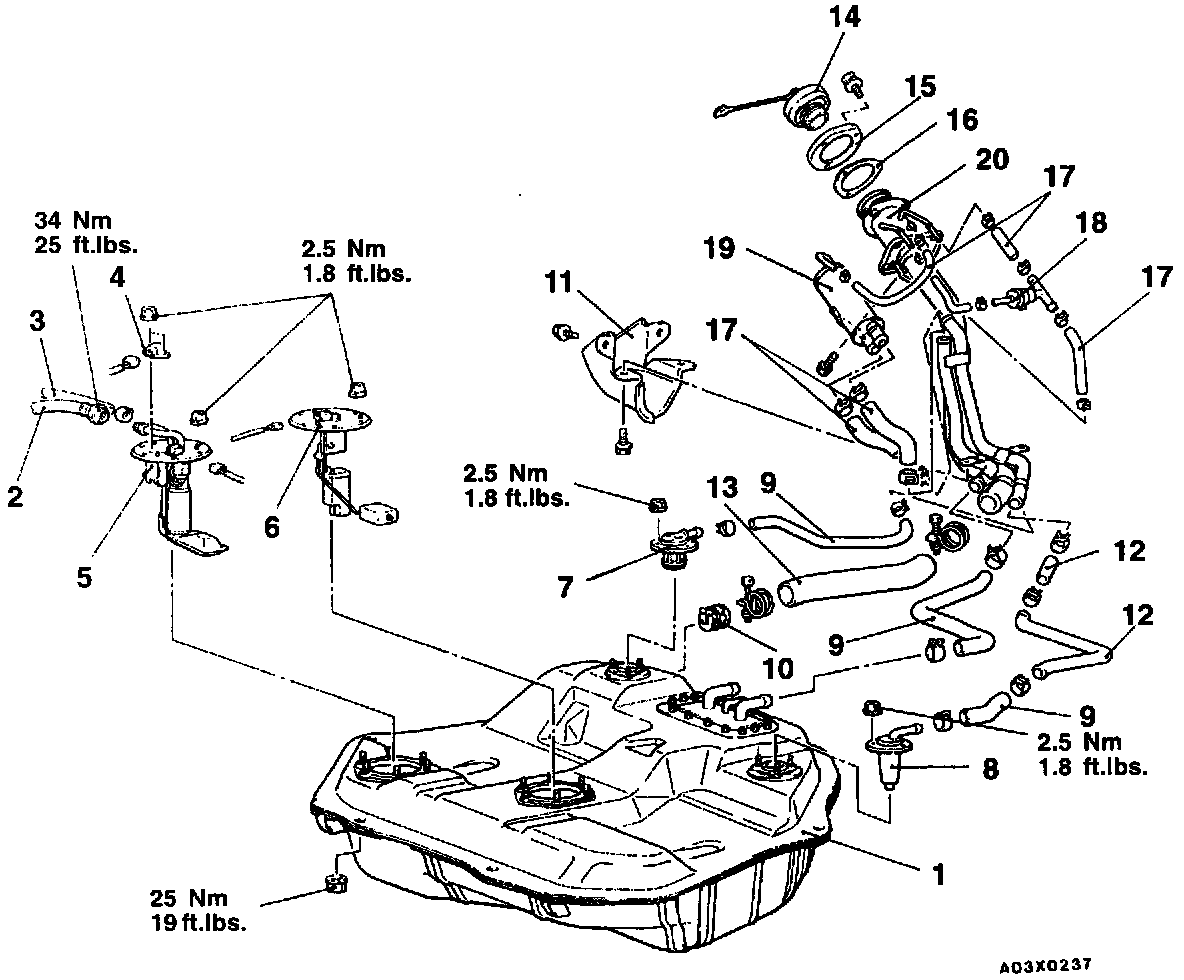

REMOVAL STEPS
1. Fuel tank
2. High-pressure fuel hose
3. Return hose
4. Fuel tank differential pressure sensor
5. Fuel pump assembly
6. Fuel gauge unit
7. Fuel cut-off valve assembly
8. Leveling valve assembly
9. Vapor hose
10. Fuel shut-off valve
11. Fuel tank filler tube protector
12. Pipe assembly
13. Filler hose
14. Fuel tank filler tube cap
15. Reinforcement
16. Packing
17. Vapor hose
18. Fuel check valve assembly
19. Liquid separator assembly
20. Fuel tank filler tube assembly

NOTE: When replacing the fuel pump assembly or the fuel gauge unit only, it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.

INSTALLATION SERVICE POINT
Cap Installation
Use the special tool to tighten the cap to the specified torque so that the marks on the fuel tank and the fuel gauge unit and pump assembly (or the fuel gauge unit and pipe assembly) are aligned.

CAUTION: Make sure that the fuel gauge unit and pump assembly (or the fuel gauge unit and pipe assembly) does not turn together with the cap when tightening the cap. If the mating marks are not aligned, the position of the float will not be correct and the fuel gauge indicator light and fuel level gauge will not operate properly.

POST-INSTALLATION OPERATION
^ Fuel Refilling
^ Checking for Fuel Leaks
^ Evaporative Emission Canister Assembly Installation
