Technician Safety Information

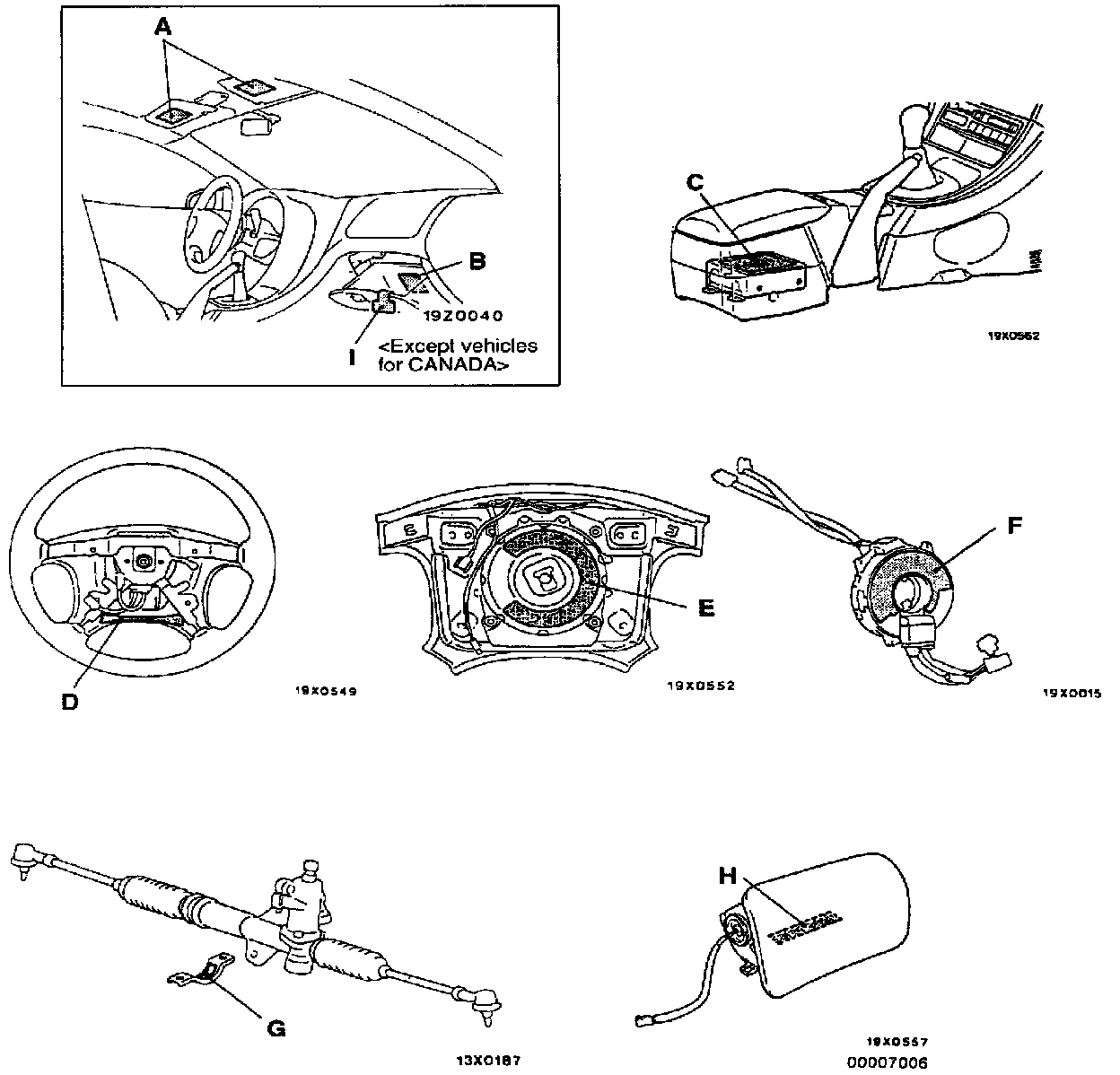

A number of caution labels relating to the SRS are found in the vehicle, as shown in the above illustration. Follow label instructions when servicing SRS.

Label I is not to be removed except by the vehicle owner. other labels can be replaced with new ones if they become dirty or damaged.
