Automatic Transmission/Transaxle: Application and ID

Model: F4AC1-5-QZQF

Type: Fully adaptive, electronically controlled 4-speed full-automatic.

Torque Converter:
Type: 3-element with torque converter clutch
Engine stall speed rpm: 2,240-2,440

Gear Ratio:
1st: 2.842
2nd: 1.573
3rd: 1.000
4th: 0.689
Reverse: 2.214

Final Gear Ratio: 3.909

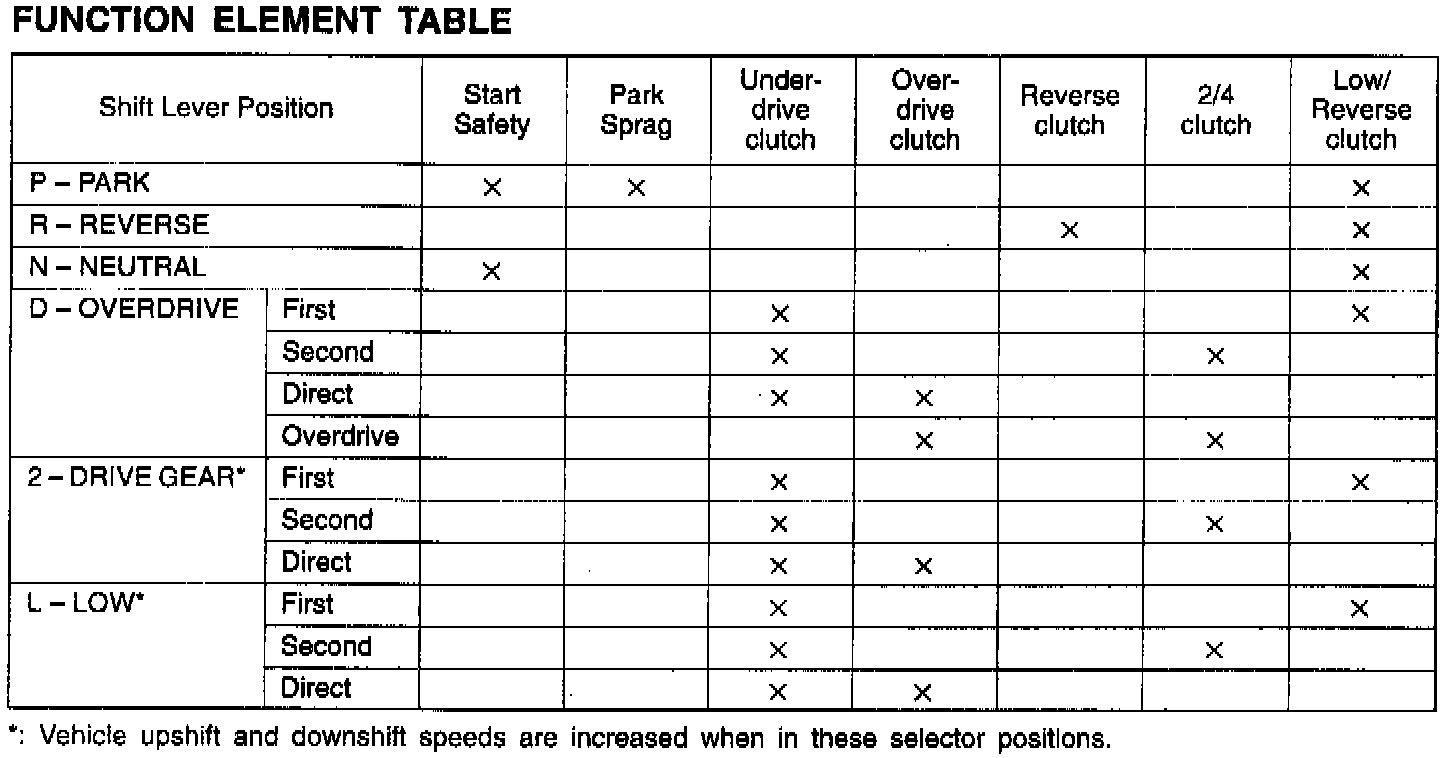

Function Element Table
