Rear Wiper and Washer

Removal

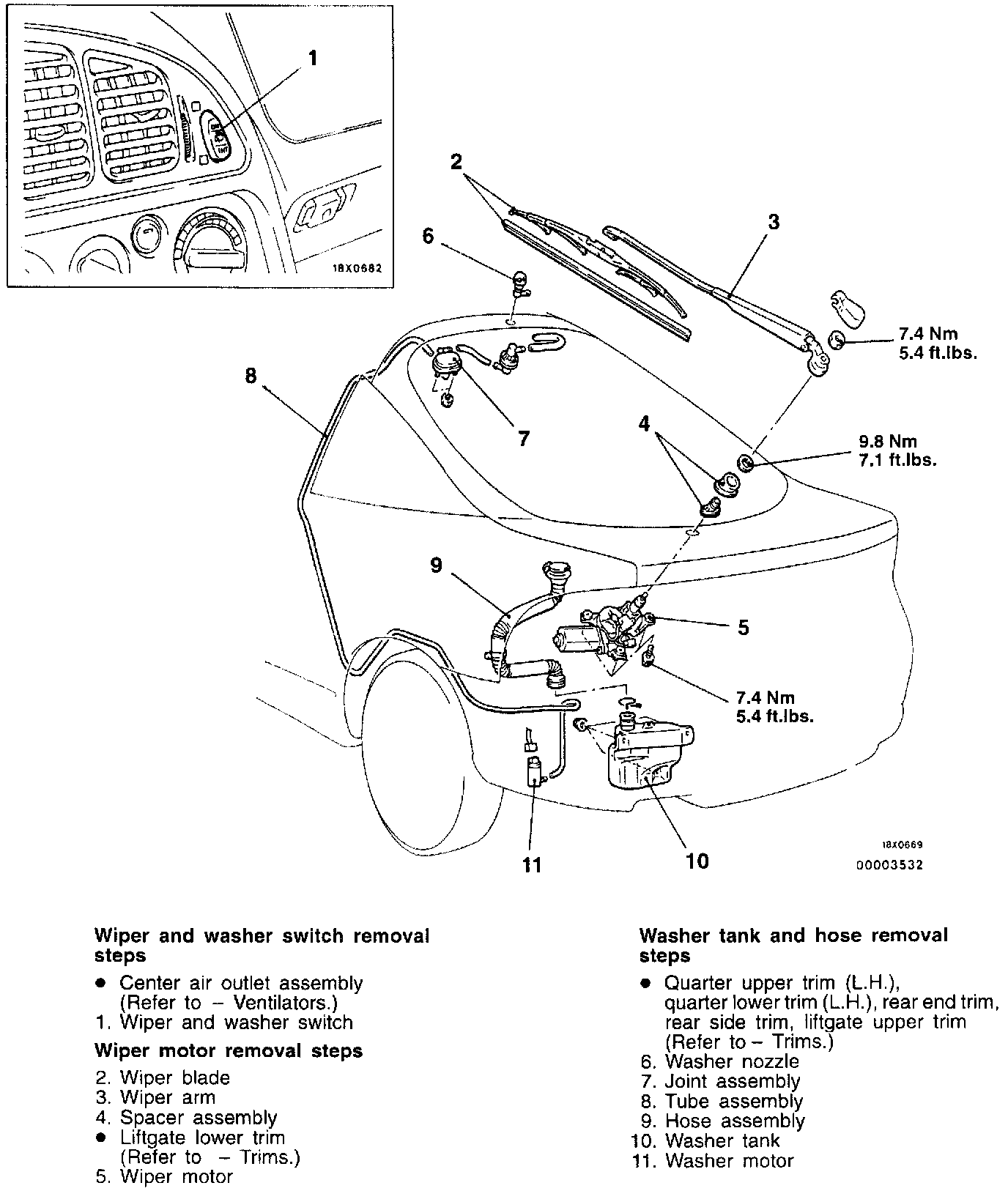

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.

Wiper Arm And Blade Installation:

Step 2/3: Wiper Arm/Wiper Blade Installation
Adjust the wiper arm so that the clearance between the wiper blade edge and the ceramic portion is at the standard value.

Standard value (A): 117 ± 15mm (4.611 ± 0.20 in.)
