Windshield Wiper and Washer

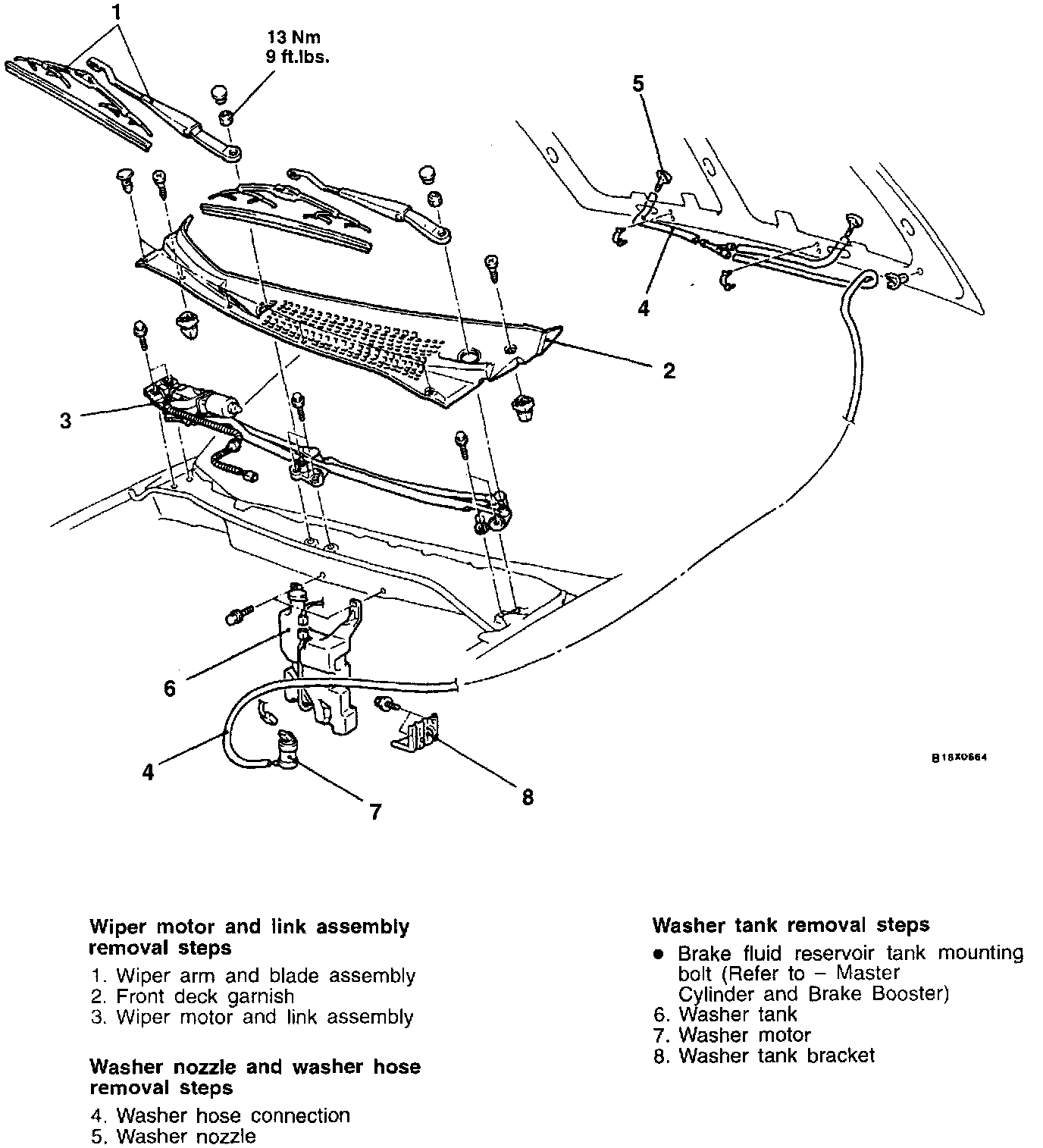

Removal
To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.

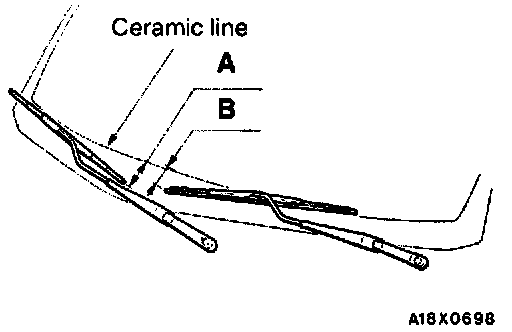

Step 1: Wiper Arm And Blade Assembly Installation
Adjust the wiper and blade assembly so that the clearances between the wiper blade edges and the ceramic line are at the standard value.
Standard value:
(A): 52.5 ± 5 mm (2.07 + 0.20 in.)
(B): 19.5 ± 5 mm (0.77 + 0.20 in.)
