Eagle
>>
1998
>>
Talon FWD L4-1997cc 2.0L DOHC VIN Y SMFI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

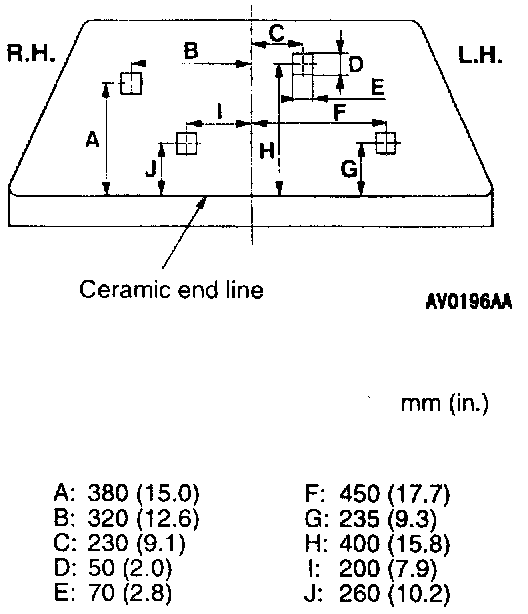

Washer Fluid Ejection Points Check
Washer Fluid Ejection Points Check
Adjust the ejection angle by moving the ball in the nozzle.
