Exhaust System: Locations

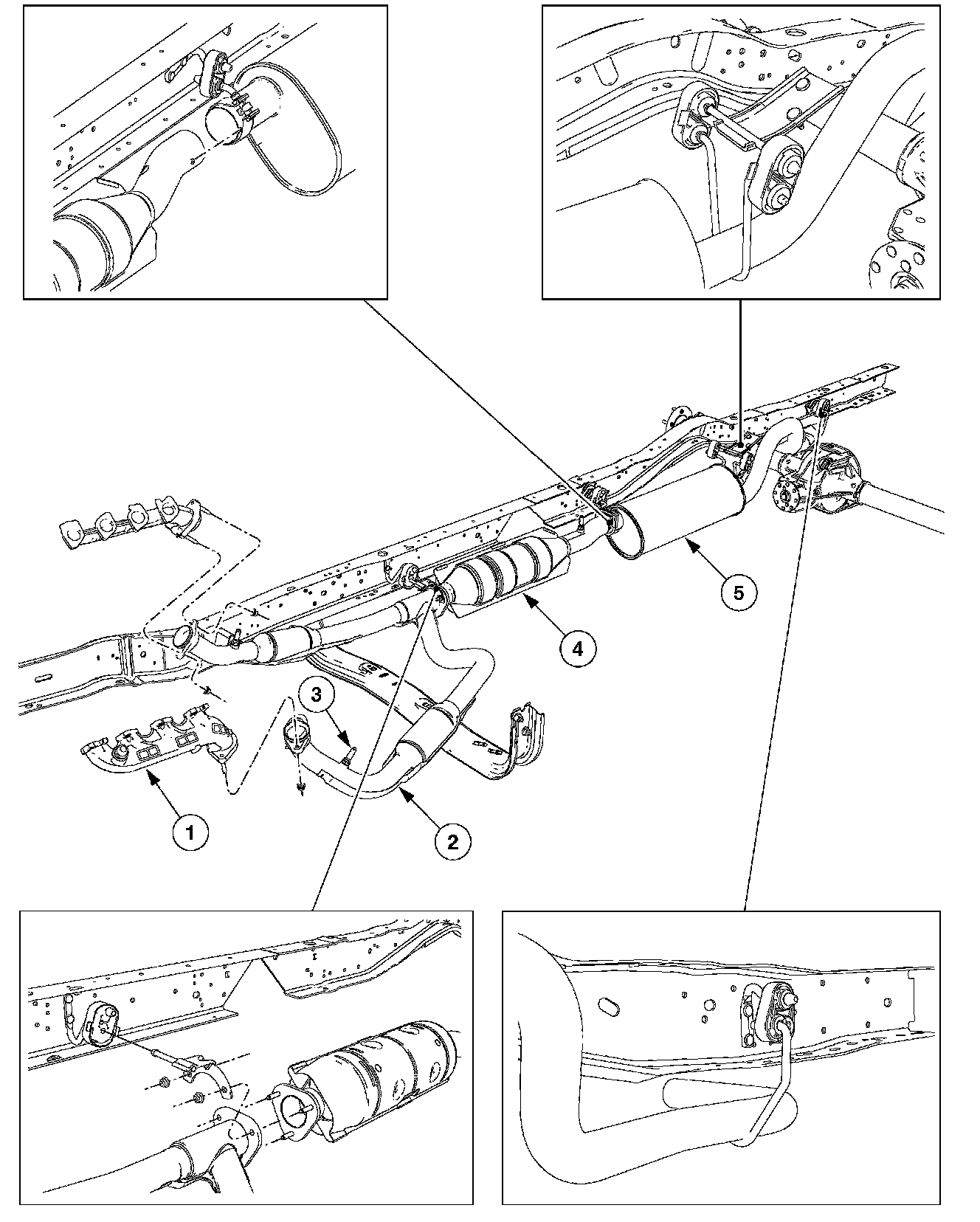

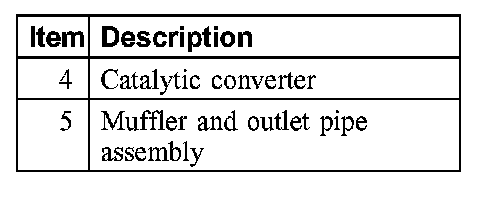

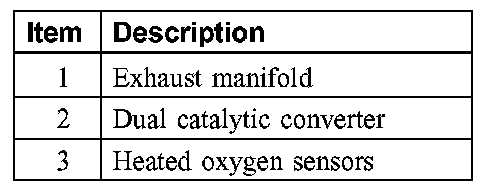

Exhaust System - 5.4L Engine

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:
