Map Light: Service and Repair

LAMP ASSEMBLY - DOME/READING

REMOVAL

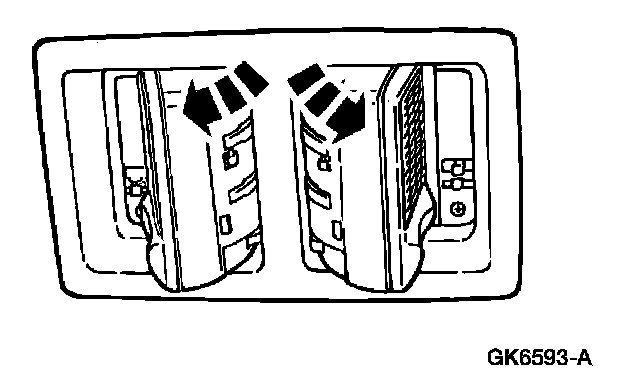

1. Rotate both dome/reading lamp to the stop position, then continue until both dome/reading lamps are in the vertical position.

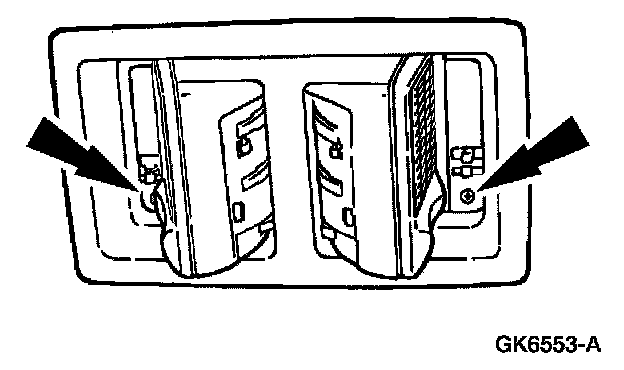

2. Remove the dome/reading lamp screws.

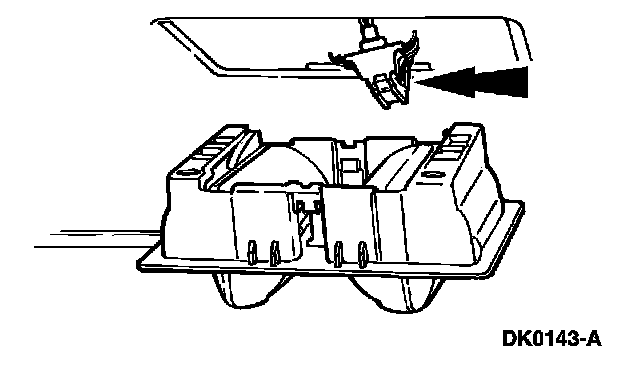

3. Disconnect the dome/reading lamp electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
