Windshield Washer Pump: Service and Repair

WASHER PUMP AND RESERVOIR

REMOVAL
1. Raise and support the hood.
2. Remove the battery.

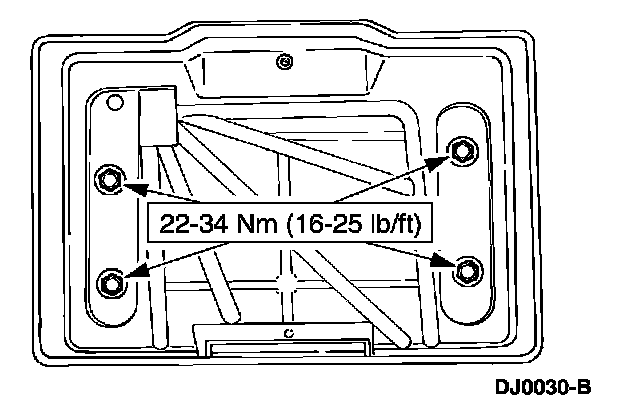

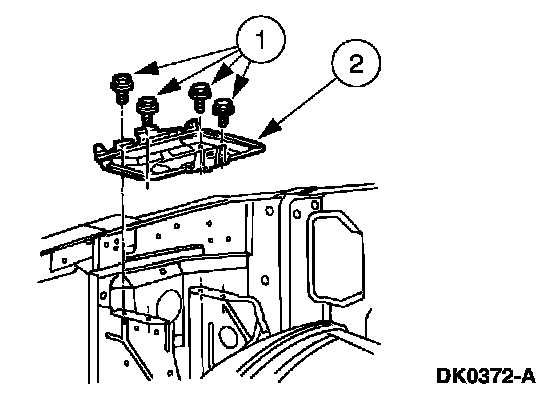

3. Remove the battery tray.
1 Remove the bolts.
2 Remove the battery tray.







4. NOTE: Windshield washer fluid must be collected in a container after the windshield washer hose is disconnected.

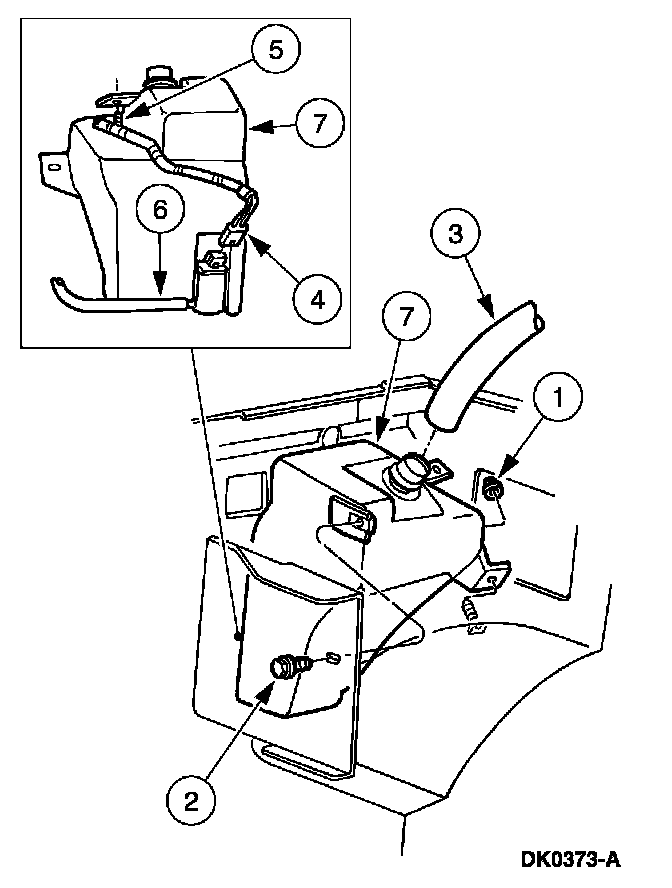

Remove the washer pump and reservoir.
1 Remove the nut.
2 Remove the bolt.
3 Disconnect the filler hose.
4 Disconnect the electrical connector.
5 Detach the wiring harness locator from the washer pump and reservoir.
6 Disconnect the windshield washer hose.
7 Remove the washer pump and reservoir.

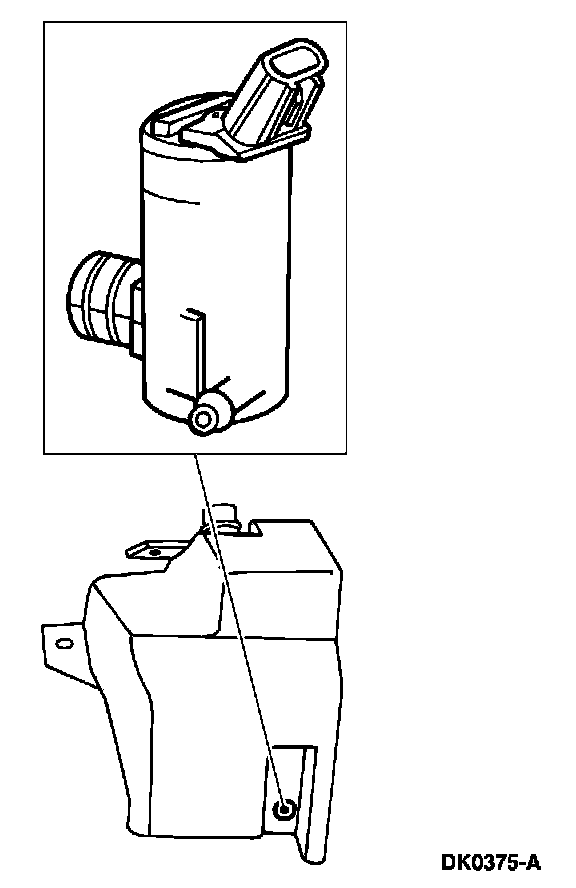

5. Remove the washer pump from the reservoir.

INSTALLATION












1. CAUTION: Do not make electrical connection prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

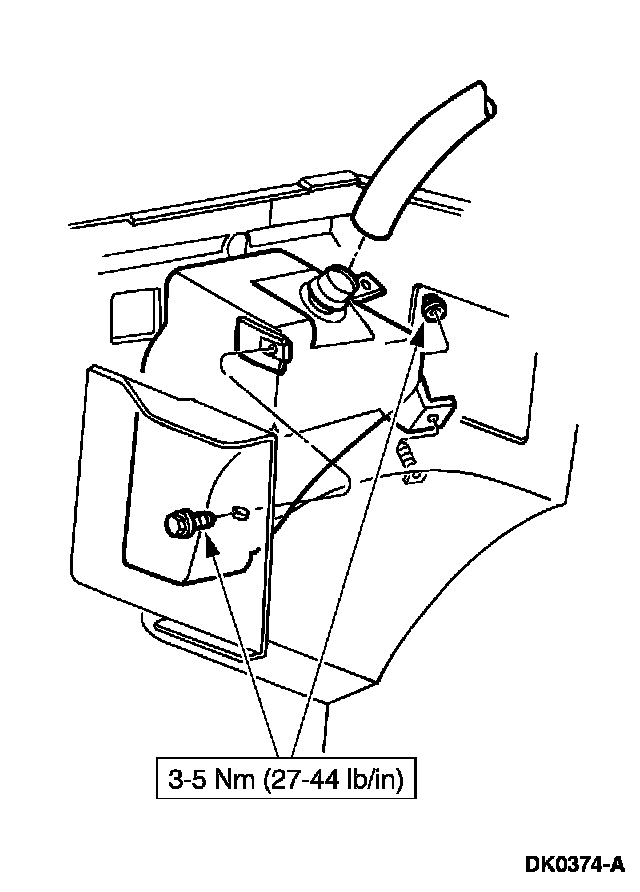

To install, reverse the removal procedure.
- Fill the windshield washer reservoir with windshield washer fluid.
